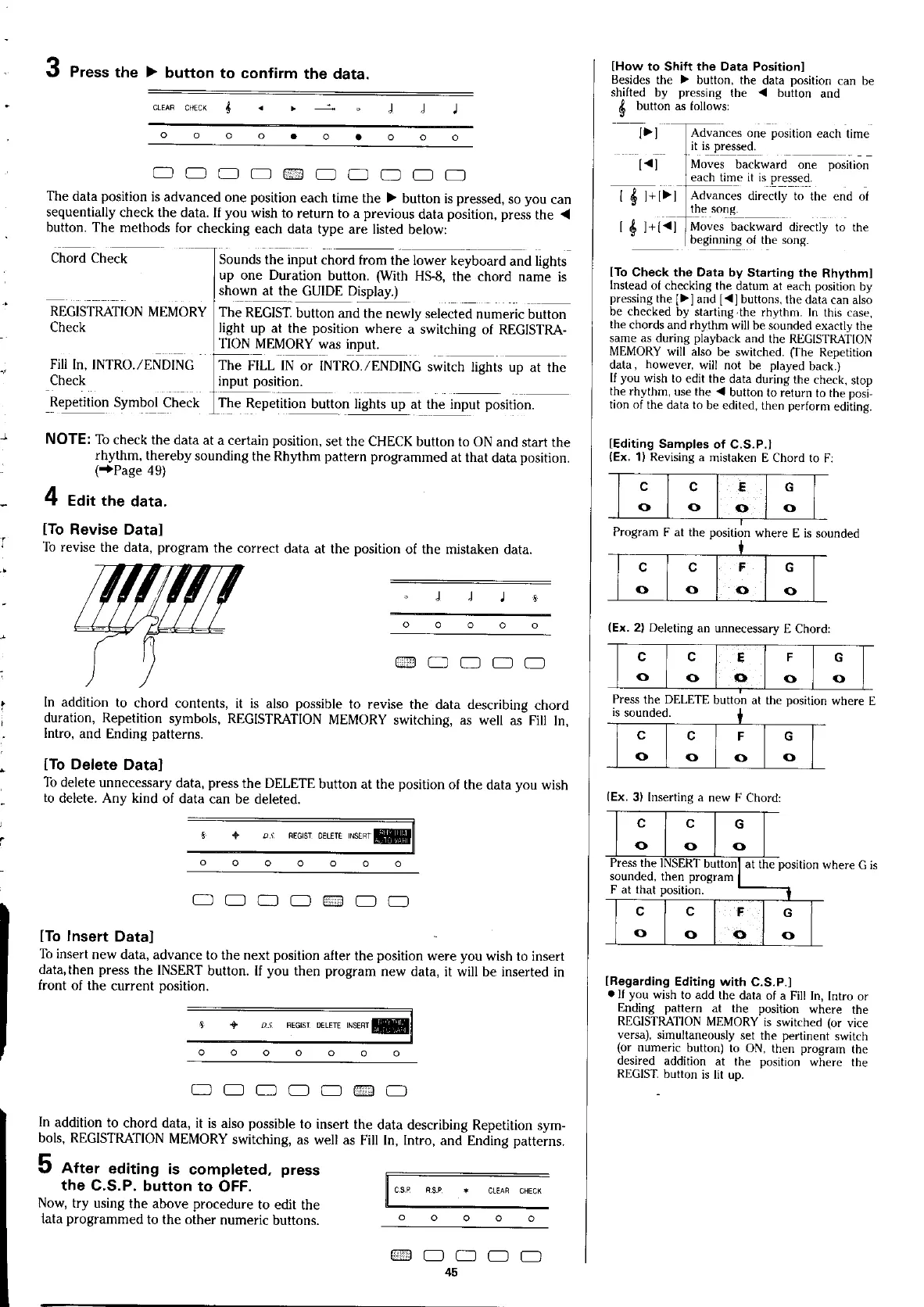

Yamaha Electone HS-4 - How to Shift the Data Position; Editing Samples of C.S.P.; Regarding Editing with C.S.P.
