Operation
68

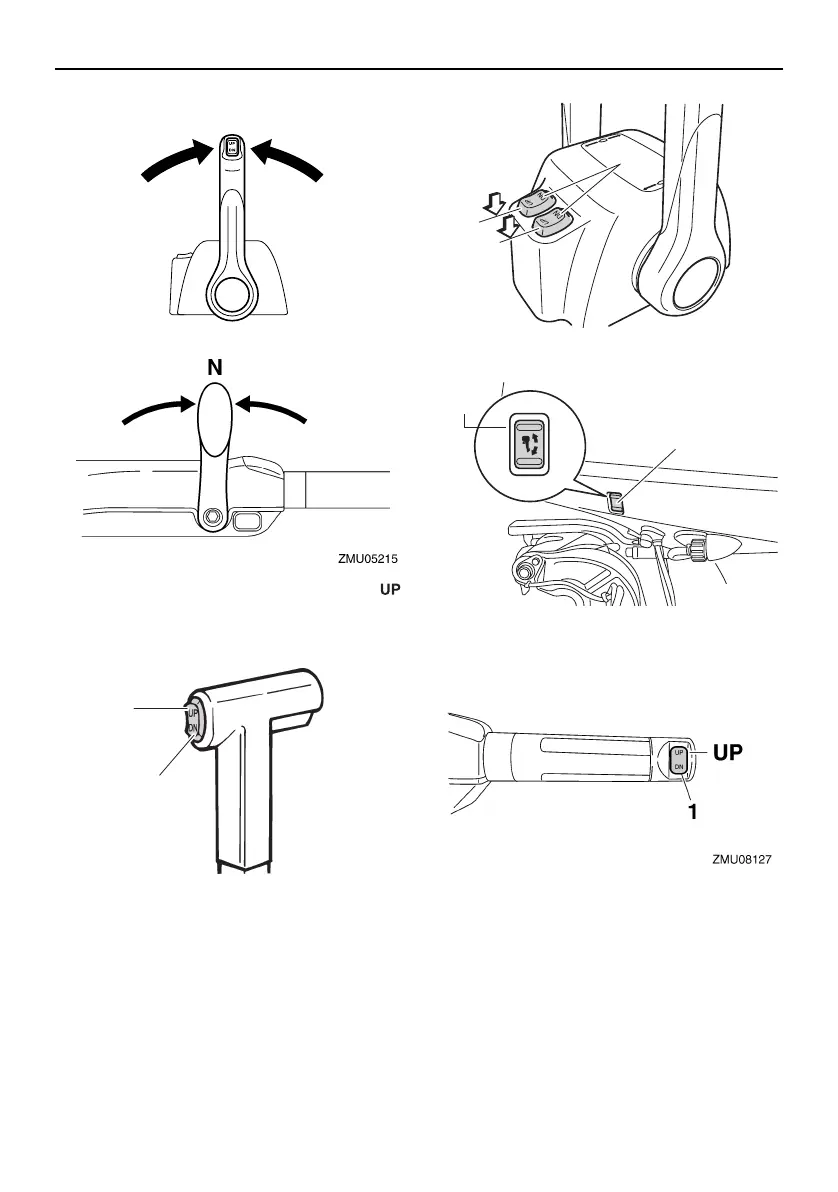

2. Press the power trim and tilt switch “ ”
(up) until the outboard motor has tilted
up completely.
3. Pull the tilt support lever toward you to
support the engine. WARNING! After
tilting the outboard motor, be sure to
support it with the tilt support knob or
tilt support lever. Otherwise the out-
board motor could fall back down
suddenly if oil in the power trim and tilt
unit or in the power tilt unit loses pres-
1. Power trim and tilt switch
N
ZMU07382
ZMU07848
UP
1
1. Power trim and tilt switch
1. Power trim and tilt switch
1. Power trim and tilt switch
ZMU07850
UP
1
1
UP
ZMU08096
