Maintenance
88
3. Remove the propeller, spacer (if
equipped), and thrust washer.
EMU41962

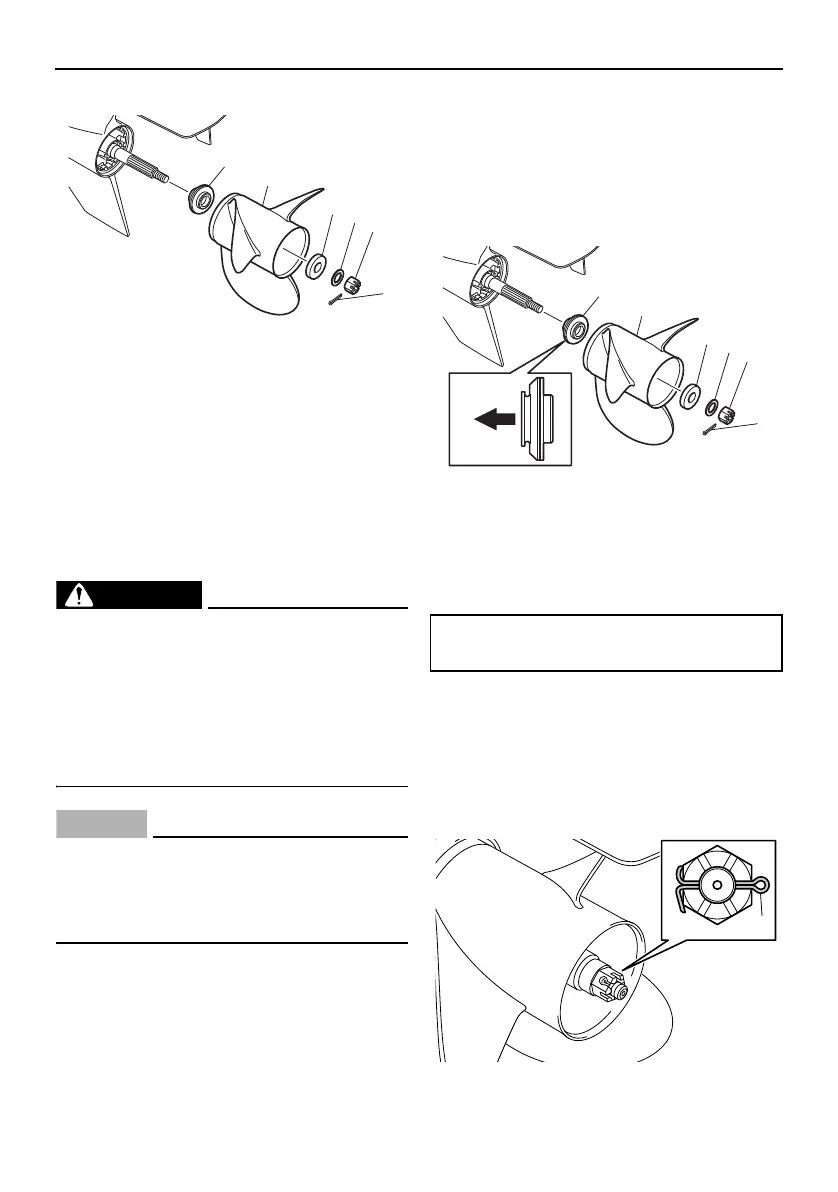

Installing propeller
WARNI NG
EWM00771
On counter rotation models, be sure to
use a propeller intended for counterclock-
wise rotation. These propellers are identi-
fied with the letter “L” after the size
indication on the propeller. Otherwise the
boat could move in the opposite direction
from that expected.
NOTICE
ECM00502
Make sure to use a new cotter pin and
bend the ends over securely. Otherwise,
the propeller could come off during oper-
ation and be lost.
1. Apply Yamalube Marine Grease to the
propeller shaft.
2. Install the thrust washer and propeller on
the propeller shaft. NO TICE : Make sure
to install the thrust washer before in-
stalling the propeller. Otherwise, the
lower case and propeller boss could
be damaged.
[ECM01882]
3. Install the spacer, washer, and propeller
nut. Tighten the propeller nut to the
specified torque.
4. Align the propeller nut slot with the pro-
peller shaft hole. Insert a new cotter pin
in the hole and bend the cotter pin ends.
NOTICE: Do not reuse the cotter pin.
Otherwise, the propeller can come off
during operation.
[ECM01892]
1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Thrust washer
ZMU07900
4
3
2
1
5
6
1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Thrust washer
Propeller nut tightening torque:
54 Nm (5.51 kgf-m, 39.8 ft-lb)
1. Cotter pin
4
3
2
1
5
6
ZMU07899
1
ZMU06956
