2-7
GB
EMU00057¯

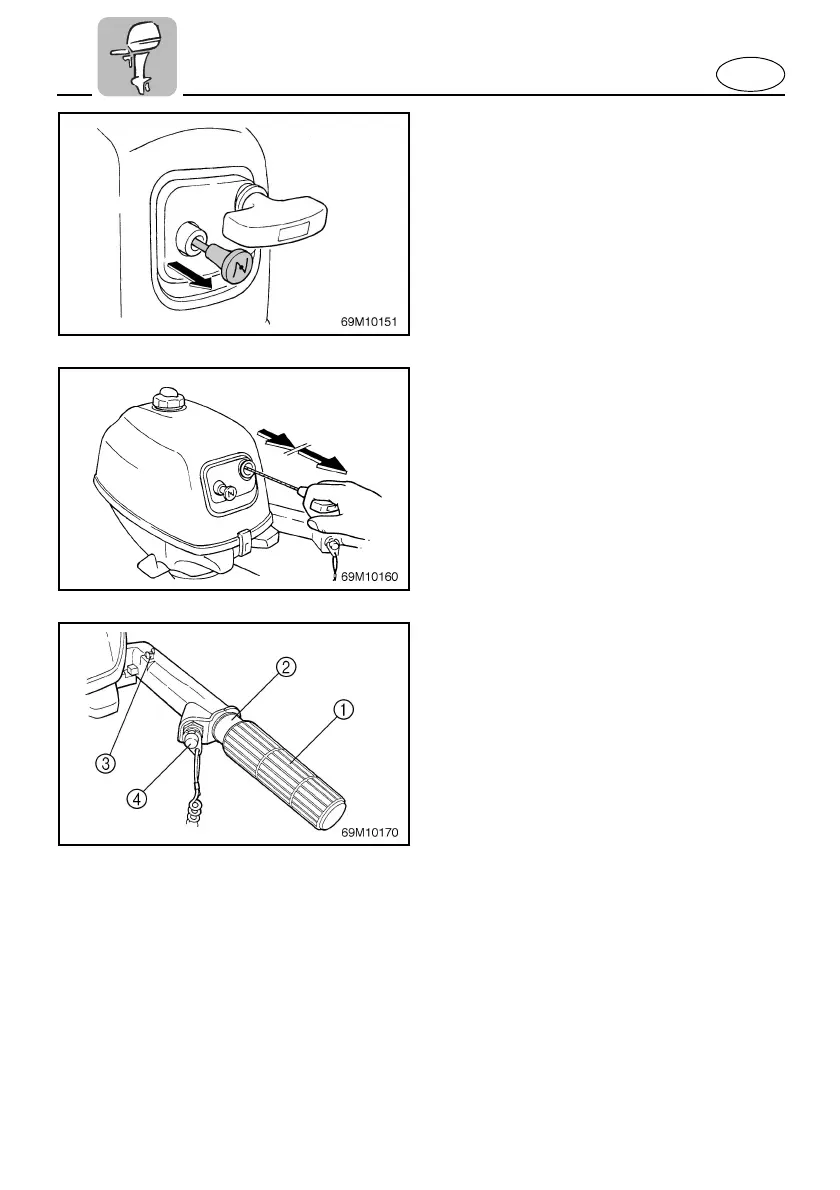

CHOKE KNOB
Pulling out this knob (setting it to ON) sup-
plies a rich mixture required to start the
engine.
EMU00059
RECOIL STARTER HANDLE
(If equipped)
Pull the handle gently until resistance is felt.
Then vigorously pull the handle straight out
to crank the engine to start it.
EMU00064
TILLER HANDLE
(for Tiller control model)
Moving the tiller handle sideways to adjust
the steering direction. In addition, this han-
dle contains the functions as follows.
1
Throttle control grip
2
Throttle indicator
3
Throttle friction adjusting knob/screw
4
Engine stop button / Engine stop lanyard
switch
U69M71A0.book Page 7 Thursday, January 30, 2003 2:26 PM
