4-21
E
EMU01830

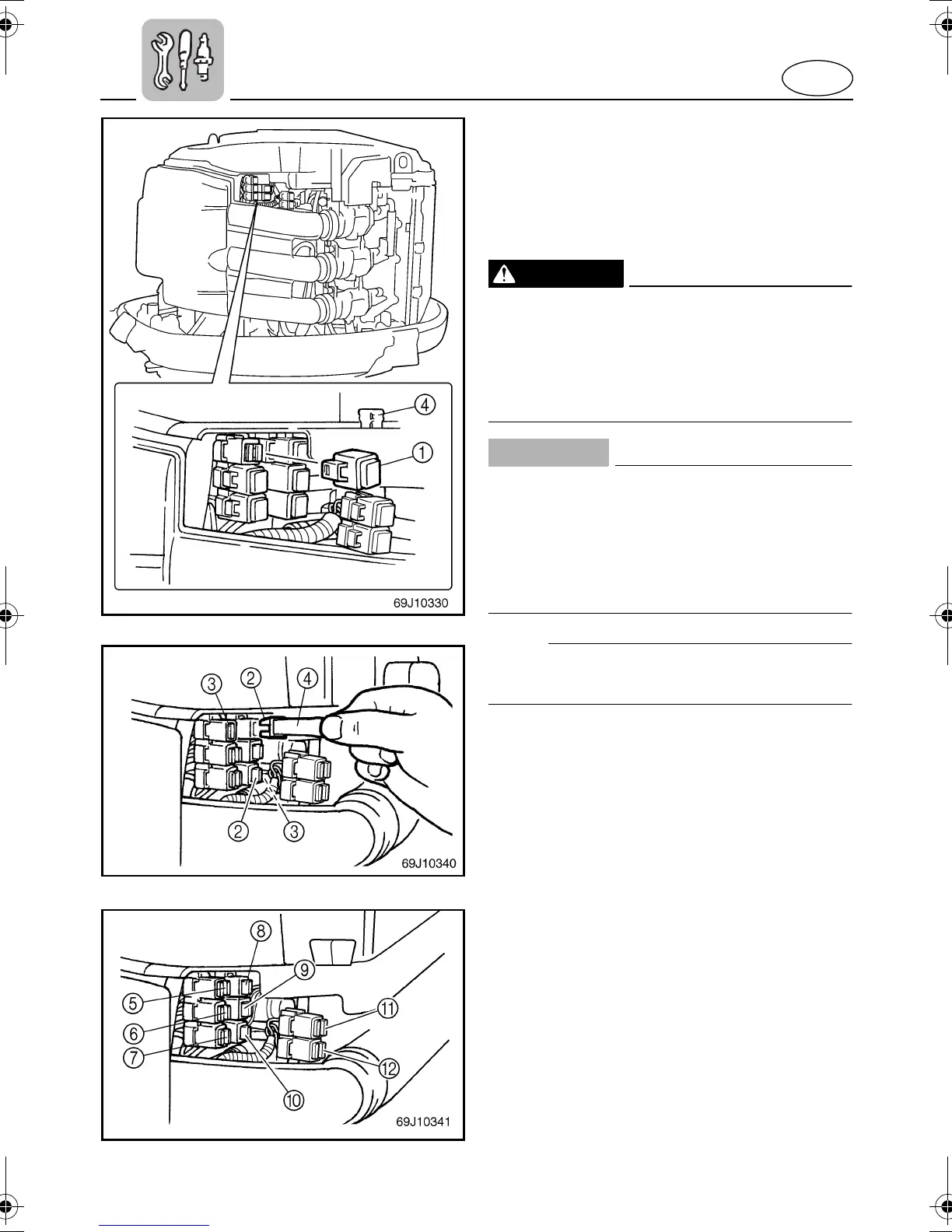

REPLACING FUSE
If the fuse has blown on an Electric start
model, open the fuse box and replace the
fuse with a spare one of proper amperage,
using a fuse puller.
WARNING
@
Be sure to use the specified fuse. An
incorrect fuse or a piece of wire may
allow excessive current flow. This could
cause electrical system damage and a
fire hazard.
@
CAUTION:
@
●
If a main fuse has blown, be sure to
also check the other main fuse.
●
If the outboard motor is operated after
a main fuse has blown charging capa-
bility will be insufficient, and the
engine will not start.
@
NOTE:
@
If the new fuse blows again immediately,
consult a Yamaha dealer.
@
1
Fuse box
2
Fuse (5A
×
1, 20A
×
2, 30A
×
5)
3
Spare fuse (5A, 20A, 30A)
4
Fuse puller
5
Starter relay
6
Main fuse 2
7
Main fuse 1
8
Fuel feed pump
9
Main switch / Trim switch
0
Engine control unit / Ignition coil / Fuel injec-
tion pump / Fuel injection nozzle / ISC (idle
speed control)
A
Accessory fuse 2
B
Accessory fuse 1
