MOUNTING THE OUTBOARD
MOTOR

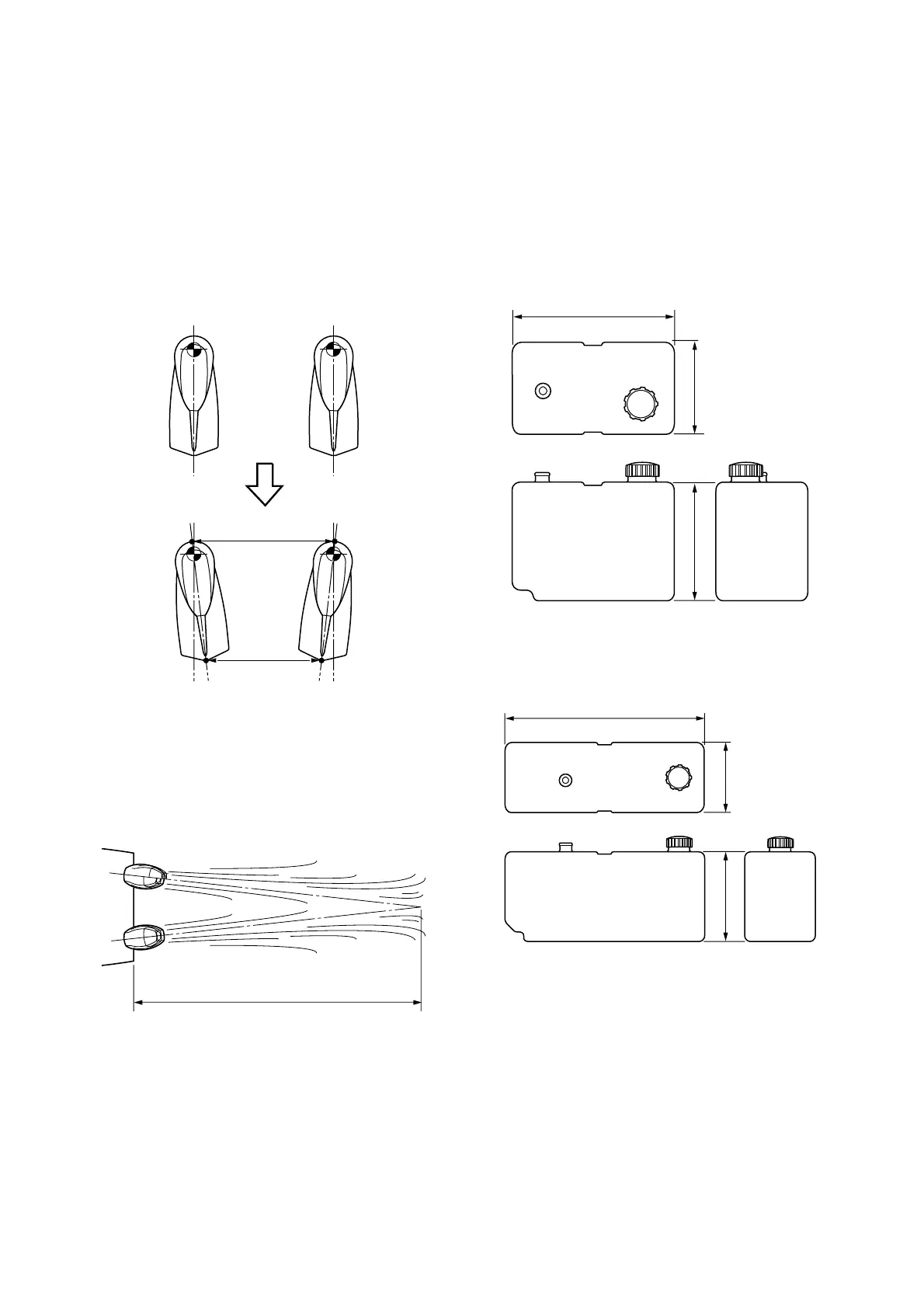

ADJUSTING TWIN MOTORS
Set the engines in the toe-out position, and
measure the distances between the two
engines at the center point of the rear (a) and
front (b) of the lower casing. The difference
between measurement (a) and measurement
(b) should not exceed 25 mm (1 in.).
* Adjustment: (b) – (a) = Within 25 mm (1 in)
For best result, your toe-out distance should
be set so that the twin motors wake meets
approximately 7.5 – 15 m (25 – 50 ft) past the
stern of the boat.
MOUNTING THE REMOTE OIL
TANK
The remote oil tank is required for 2-stroke V4
and V6 oil injection engines.
REMOTE OIL TANK DIMENSIONS
10.5 liters (2.8 US gallons) tank
P/N: 6E5-21733-20
18 liters (4.8 US gallons) tank
P/N: 6E5-21733-30
(b)
(a)
7.5 – 15 m (25 – 50 ft)
320 (12.6)
180 (7.1)230 (9.1)
mm (in.)
180 (7.1)
508 (20)
235 (9.3)
mm (in.)
