1-40
OUTBOARD MOTOR DIMENSIONS

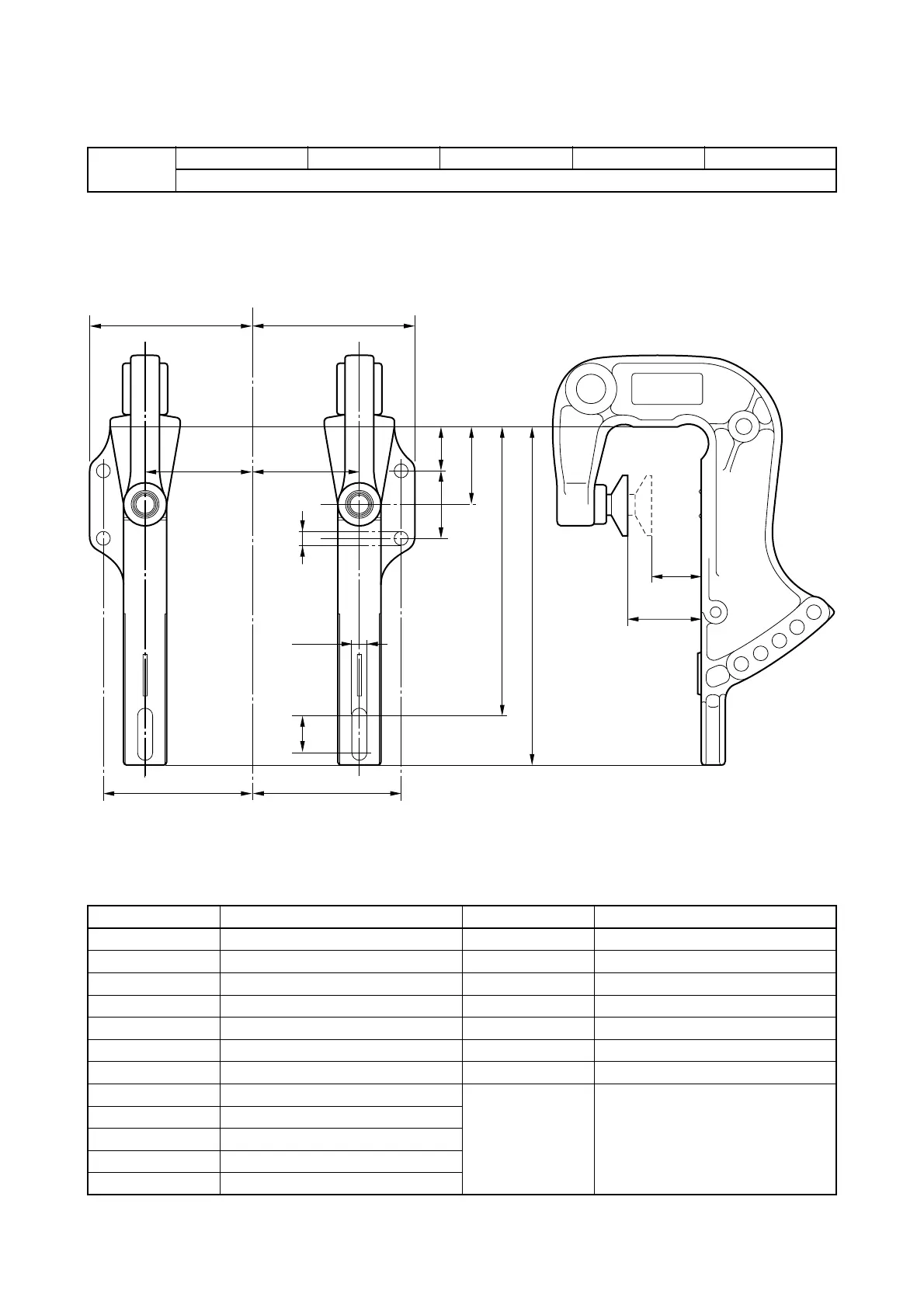

CLAMP BRACKET DIMENSIONS
Model
40J E40G E40J EK40G EK40J
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 — C1 33 (1.3)
B2 212 (8.3) C2 60 (2.3)
B3 124.5 (4.9) C3 —
B4 32 (1.3) D1 10.5 (0.41)
B5 134.5 (5.3) D2 27 (1.1)
B6 249 (9.8) D3 —
B7 — D4 —
B8 —
B9 50 (2.0)
B10 —
B11 93.5 (3.7)
B12 57 (2.2)
C2
C1
B3
D2
D1
B1
1
B5
C/L
B2
B6
B12
B
9
B4
B3
B1
1
B5
D1
