1-42
OUTBOARD MOTOR DIMENSIONS

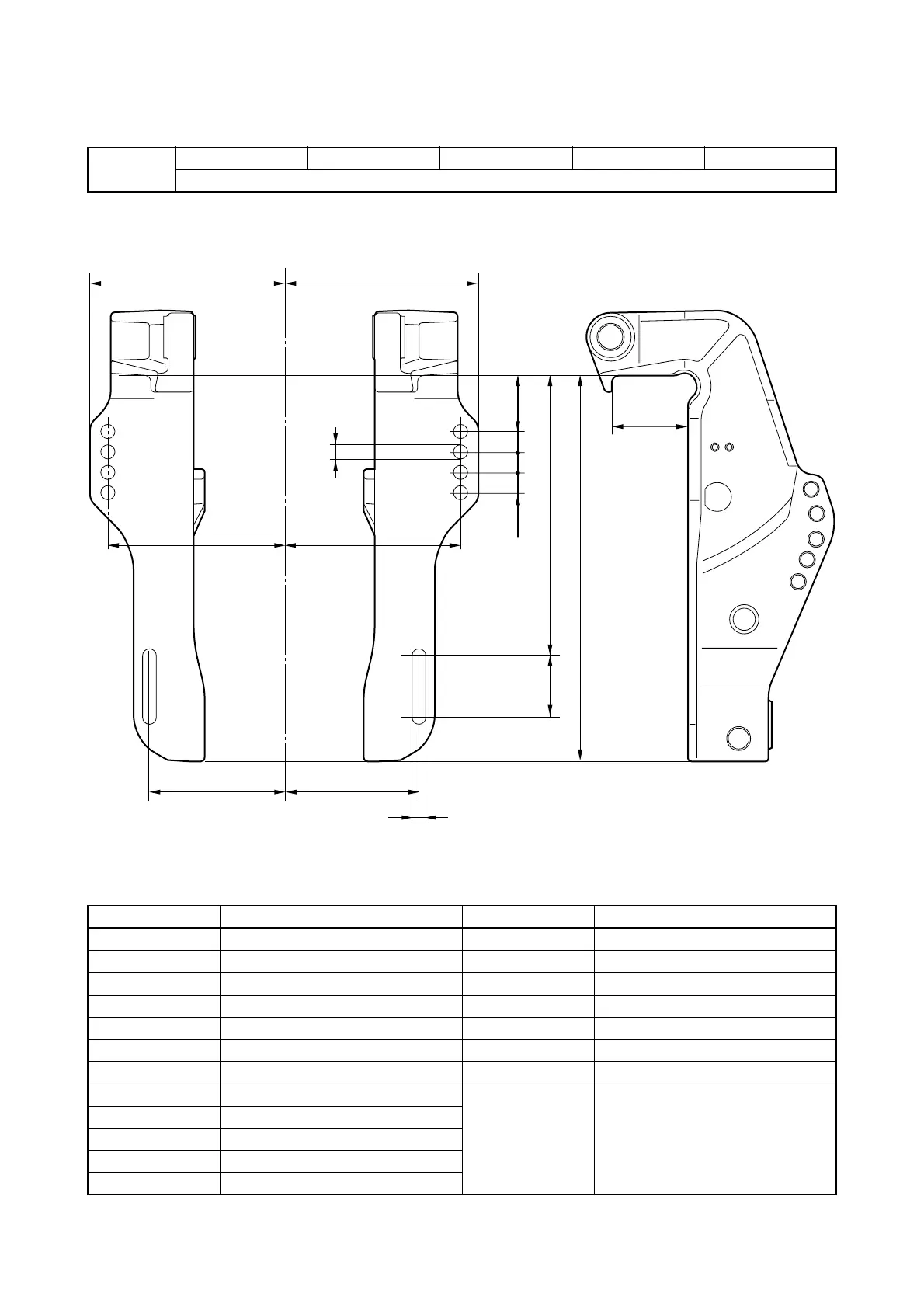

CLAMP BRACKET DIMENSIONS
Model
F50F (F50) FT50G (T50) F60C (F60) FT60D (T60) F40D
PTT & Hydro-tilt
Symbol mm (in.) Symbol mm (in.)
B1 126 (5.0) C1 —
B2 254 (10.0) C2 —
B3 163.5 (6.4) C3 69 (2.7)
B4 50.8 (2.0) D1 13 (0.5)
B5 180 (7.1) D2 55.5 (2.2)
B6 350 (13.8) D3 —
B7 — D4 —
B8 —
B9 18.5 (0.7)
B10 —
B11 —
B12 —
C3
B3
B5
C/L
B1
B4
B9
B2D2
B6
B9B9
D1
D1
B3
B5
B1
