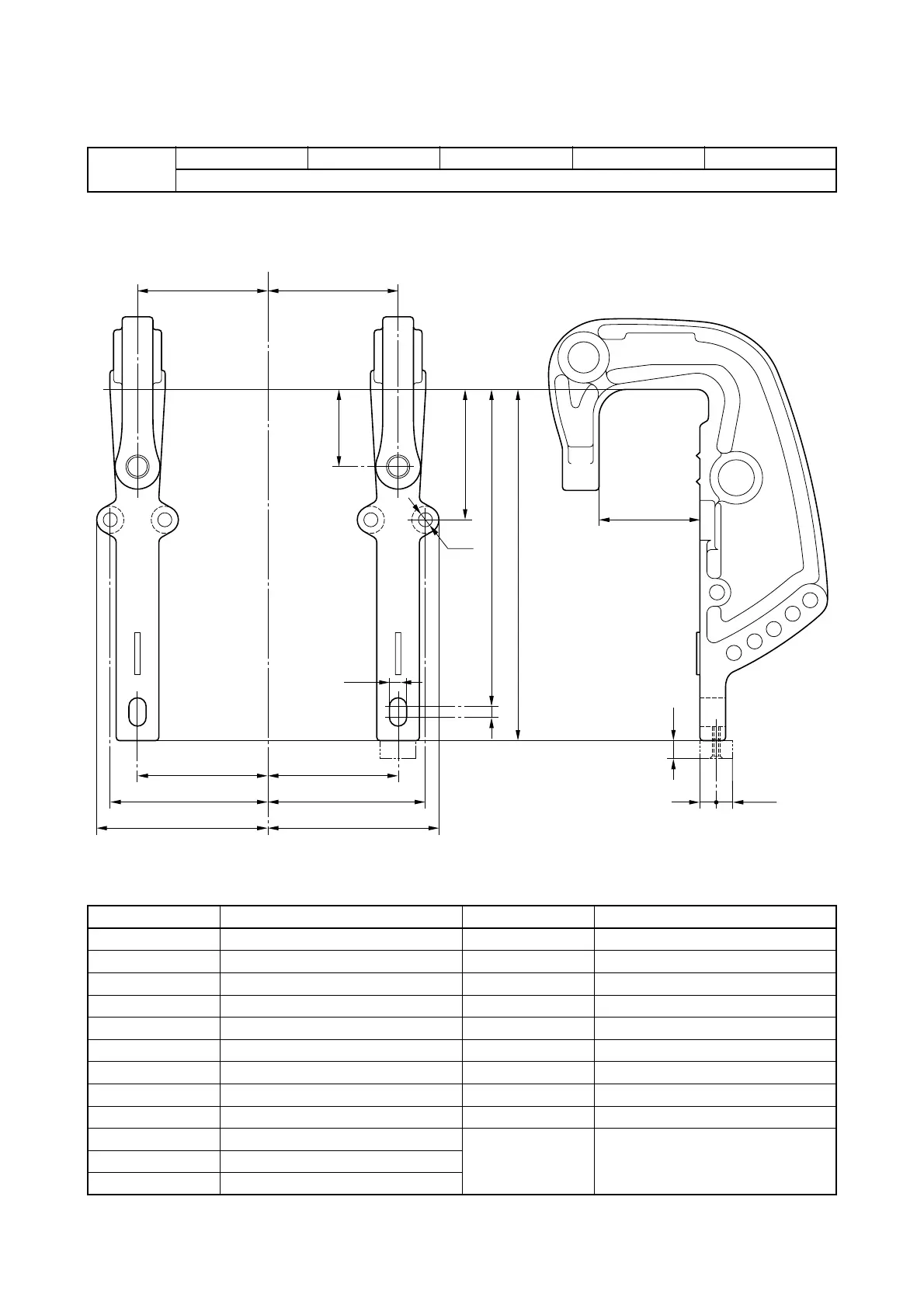

OUTBOARD MOTOR DIMENSIONS
CLAMP BRACKET DIMENSIONS
Model
E48C E55C
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 96 (3.8) C1 —
B2 230 (9.1) C2 —
B3 119 (4.7) C3 73 (2.9)
B4 — D1 12 (0.47)
B5 129 (5.1) D2 8 (0.31)
B6 254 (10.0) D3 10.5 (0.41)
B7 — D4 —
B8 95 (3.7) AN1 14 (0.55)
B9 — AN2 12 (0.47)
B10 —
B11 96 (3.8)
B12 57 (2.2)
B11
C/L
B3
B1
B5
B11
B2 B6
B8
B12
D3
B3
B1
B5
D2
D1
C3
AN1
AN2
