3-9
REMOTE CONTROL APPLICATIONS

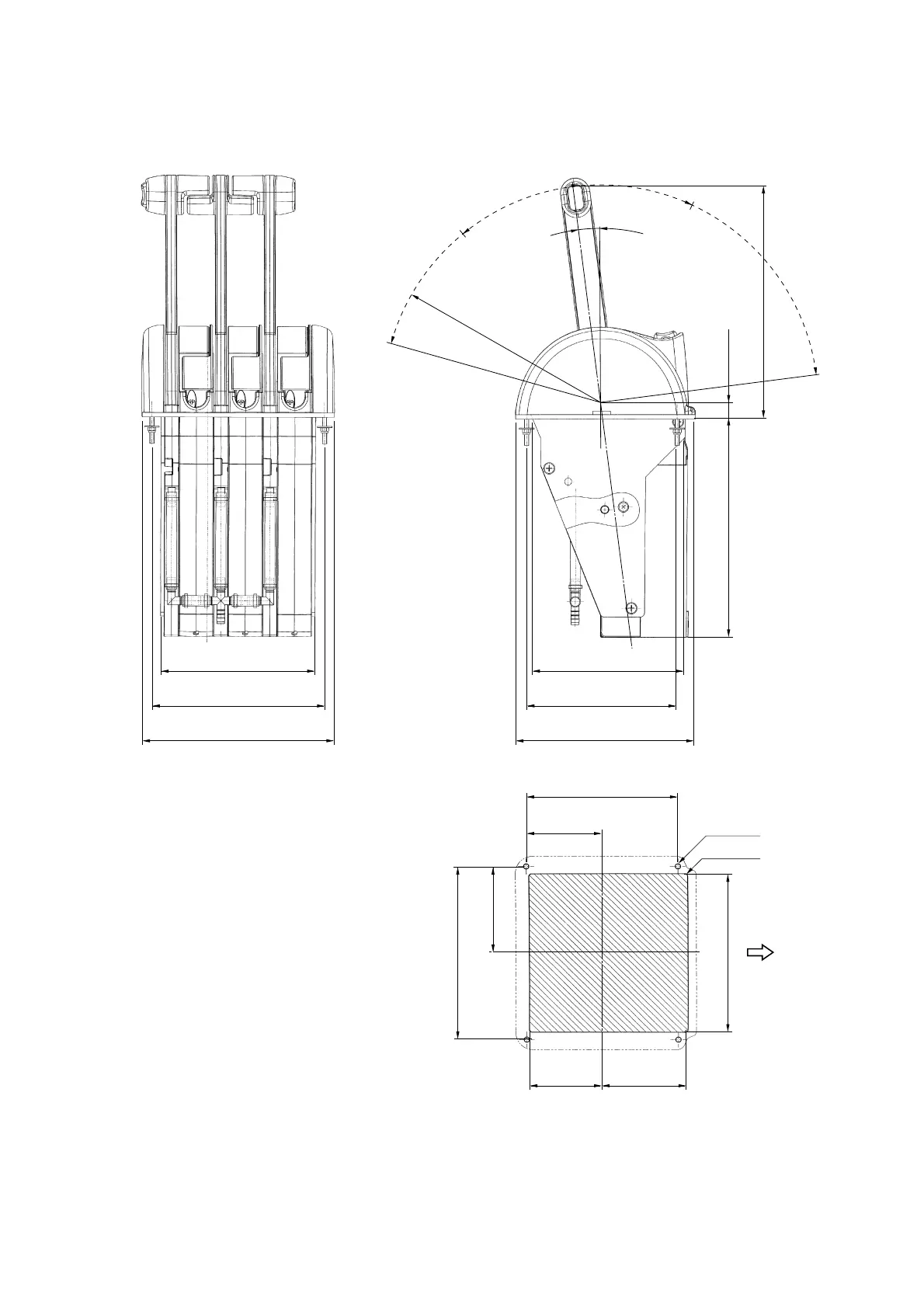

6X5 REMOTE CONTROL DIMENSIONS
205 (8.07)
172 (6.77)
176 (6.93)
200 (7.87)
223 (8.78)
179 (7.05)
100 (3.94)
200 (7.87) 183 (7.20)
172 (6.77)
86 (3.39)
83 (3.27) 100 (3.94)
φ6 (0.24)
R3 (0.12)
251 (9.88)
18 (0.71)252 (9.92)
267 (10.51)
N
32
R
Max.
67
Max.
90
BOW
F
32
7.5
Template
Cut off
shaded
area
Cut off
shaded
area
* If the mounting board is thinner than 20 mm (0.8 in.),
make four 6 mm (0.24 in.) diameter holes and secure
the remote control box with the supplied bolts and nuts.
If the supplied tapping screws are used, make four 3.5
mm (0.14 in.) diameter holes.
mm (in.)
