REMOTE CONTROL APPLICATIONS
Twin-engine
Triple-engine
172 (6.77)

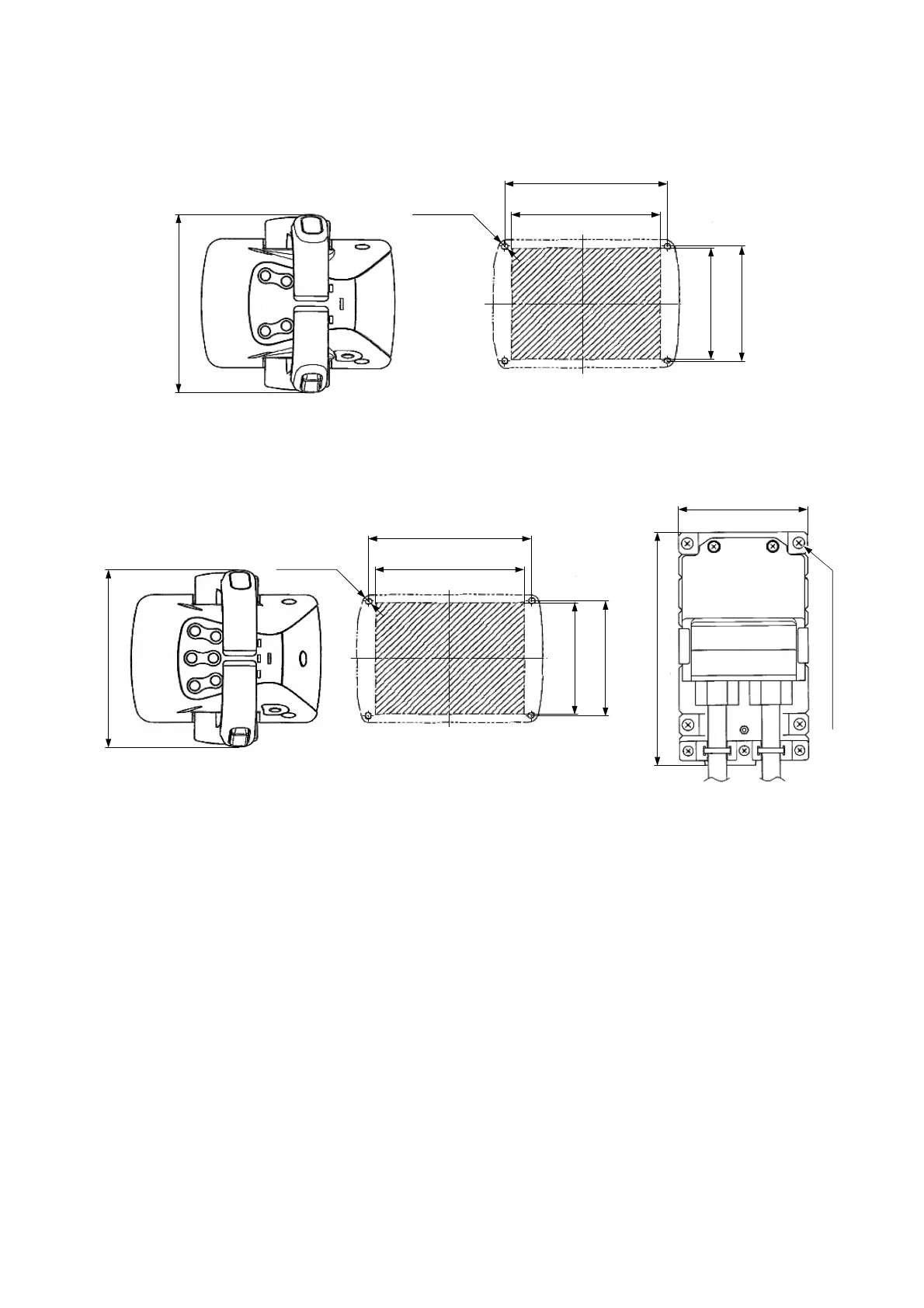

Template (twin lever)
132 (5.20)
145 (5.71)
102 (4.02) 105 (4.13)
5.5 (0.22)
Cut out shaded areaCut out shaded area
mm (in.)
172 (6.77)
213 (8.39)
Template (same as twin engine)
Center RC ECM bracket
132 (5.20)
116 (4.57)
145 (5.71)
102 (4.02) 105 (4.13)
5.5 (0.22)
M6 tapping mount screw
Cut out shaded areaCut out shaded area
