Instruments and indicators
35
The speed & fuel meter unit is available in
round or square types. Check your speed &
fuel meter unit type for operation information.
After the main switch is first turned on, all the
displays come on as a test. After a few sec-
onds, the gauge will change to normal opera-
tion.
For more information, see the operation man-
ual originally supplied with the meter.
EMU36241

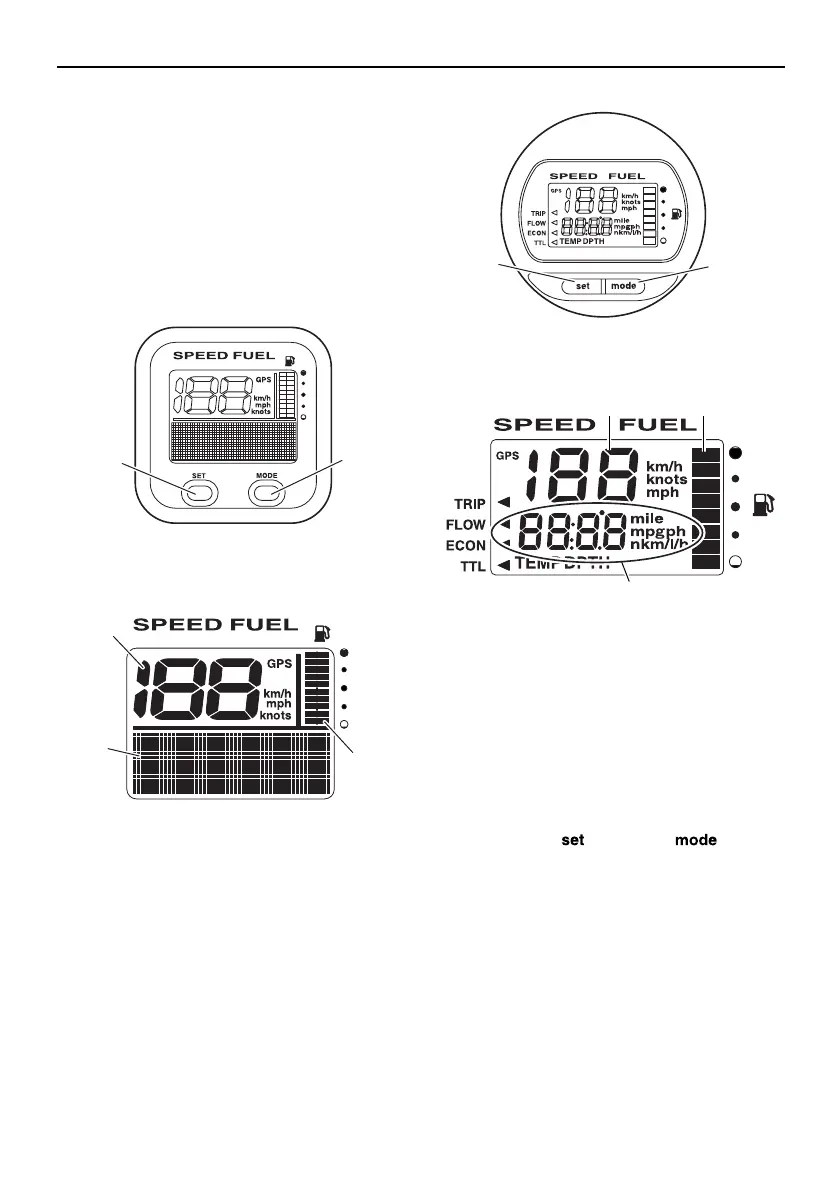

6Y8 Multifunction speedome-
ters
The speedometer unit shows the boat speed
and has functions of fuel meter and system
voltage display. The chosen display is select-
ed by using the “” (set) and “” (mode)
buttons as described in this section. In addi-
tion, the speedometer can show the desired
unit of measurement such as km/h, mph, or
knots. If the speed sensor is installed, the unit
can also show the trip display. However, even
if the speed sensor is not installed, the trip dis-
play can be shown by connecting an optional
sensor to the unit. In addition, if optional sen-
sors are connected to the unit, water surface
1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
2
1
ZMU05432
1
2
3
ZMU05433
1. Set button
2. Mode button
1. Speedometer
2. Fuel meter
3. Multifunction display
2
1
ZMU05434
12
3
ZMU05435
U6P278E0.book Page 35 Monday, April 11, 2011 7:37 PM
