Trouble Recovery
87

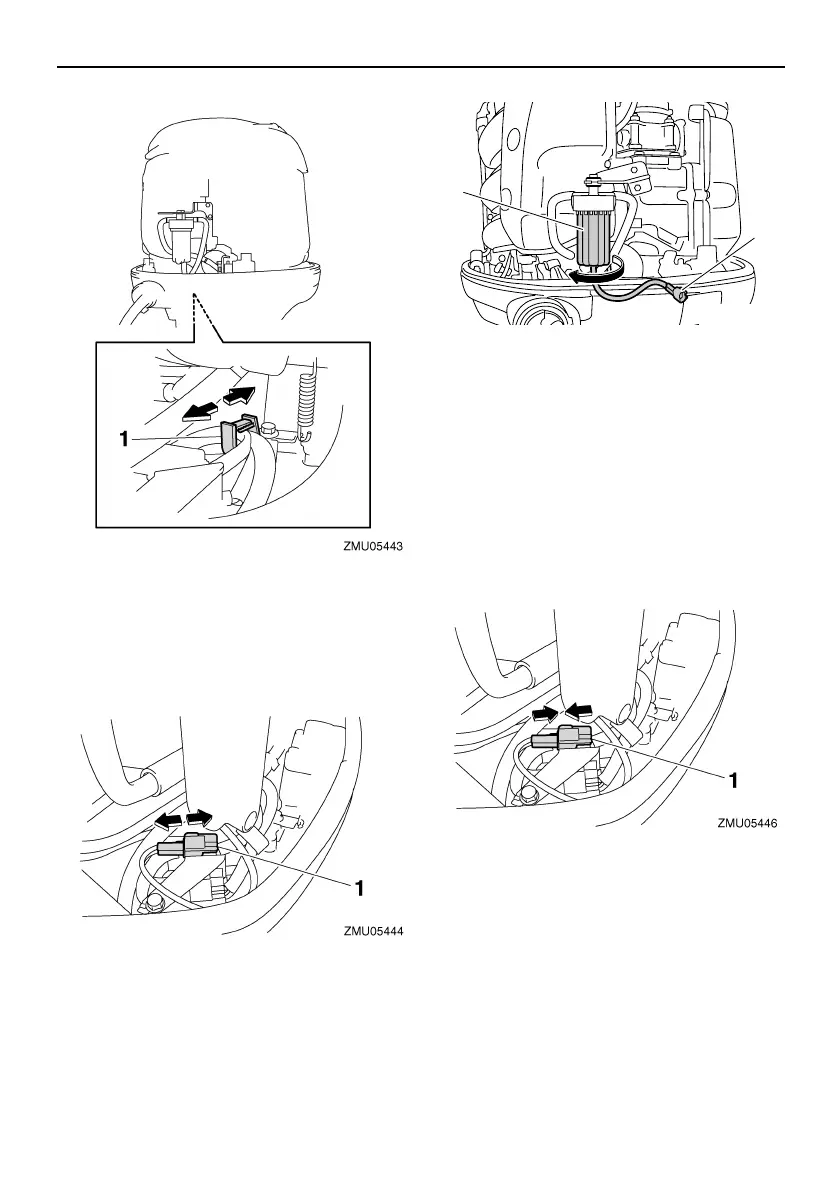

4. Disconnect the water detection switch
coupler. NOTICE: Be careful not to get
any water on the water detection
switch coupler, otherwise a malfunc-
tion could occur.
[ECM01950]
5. Unscrew the filter cup from the filter hous-
ing. NOTICE: Be careful not to twist the
water detection switch lead when un-
screwing the filter cup.
[ECM01960]
6. Drain the water in the filter cup by soaking
it up with a rag.
7. Firmly screw the filter cup onto the filter
housing. NOTICE: Be careful not to
twist the water detection switch lead
when screwing the filter cup onto the
filter housing.
[ECM01970]
8. Connect the water detection switch cou-
pler securely until a click is heard.
9. Fasten the water detection switch lead
with the holder.
1. Holder
1. Water detection switch coupler
1. Filter cup
2. Water detection switch lead
1. Water detection switch coupler
ZMU07550
1
2
U6P278E0.book Page 87 Monday, April 11, 2011 7:37 PM
