Instruments and indicators
32
ing an optional sensor to the unit. For the op-
tional sensor, consult your Yamaha dealer.
The tachometer unit is available in round or
square types. Check your tachometer unit
type.
EMU36191
Start-up checks
Place the remote control lever / gear shift le-
ver in neutral and turn the main switch to
“ ” (on). After all the displays come on and
the total hour display comes on, the gauge
will change to normal operation. If the buzzer
sounds and the water separator-alert indica-

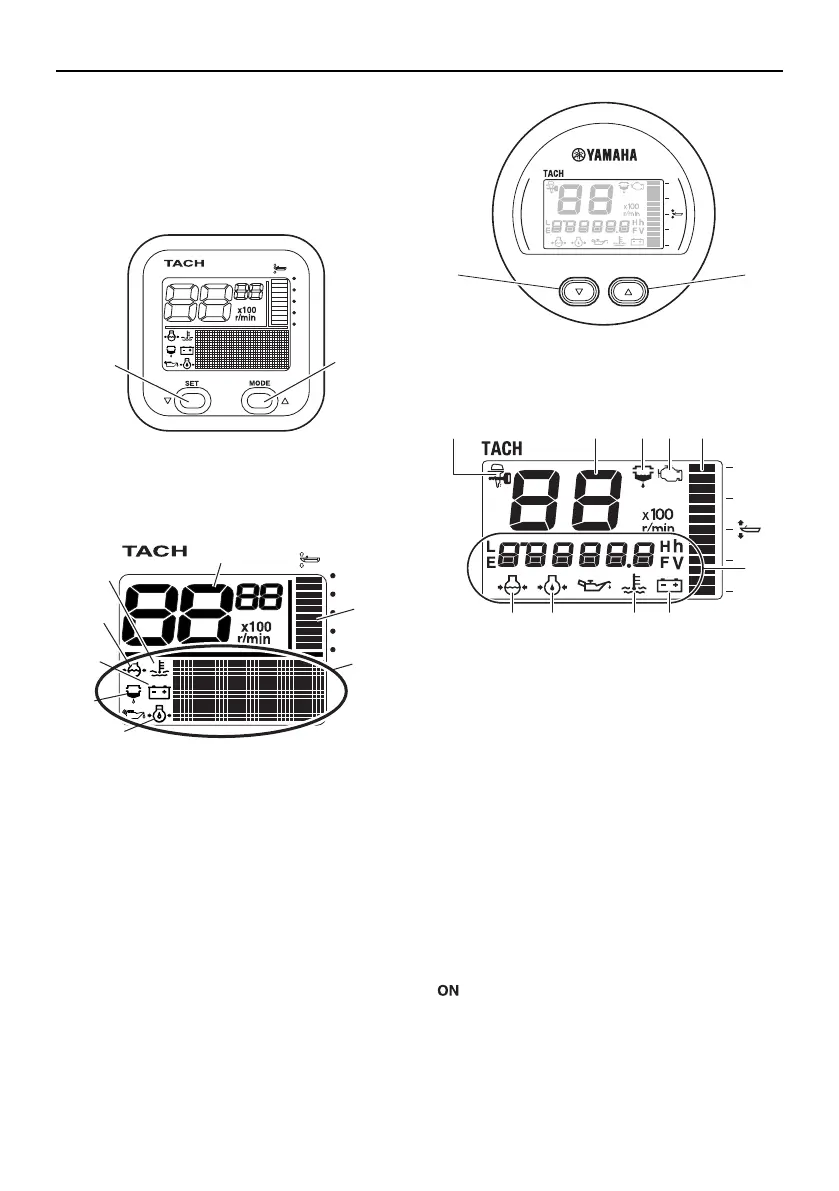

1. Set button
2. Mode button
1. Tachometer
2. Trim meter
3. Multifunction display
4. Cooling water pressure
5. Cooling water/engine temperature
6. Water detection-alert indicator
7. Battery voltage
8. Oil pressure (4-stroke models)
2
1
ZMU05415
2
3
1
4
5
6
7
8
ZMU05416
1. Set button
2. Mode button
1. Tachometer
2. Water detection-alert indicator
3. Engine trouble alert/maintenance indicator
4. Trim meter
5. Multifunction display
6. Battery voltage
7. Cooling water/engine temperature
8. Oil pressure (4-stroke models)
9. Cooling water pressure
10. YAMAHA SECURITY SYSTEM indicator
SET MODE
1 2
ZMU05417
110
9 8 7 6
2 3 4
5
ZMU05418
