Yamaha F50C - Tilt Support Lever; Top Cowling Lock Lever; Flushing Device

2-12
E
301011
EMD62110

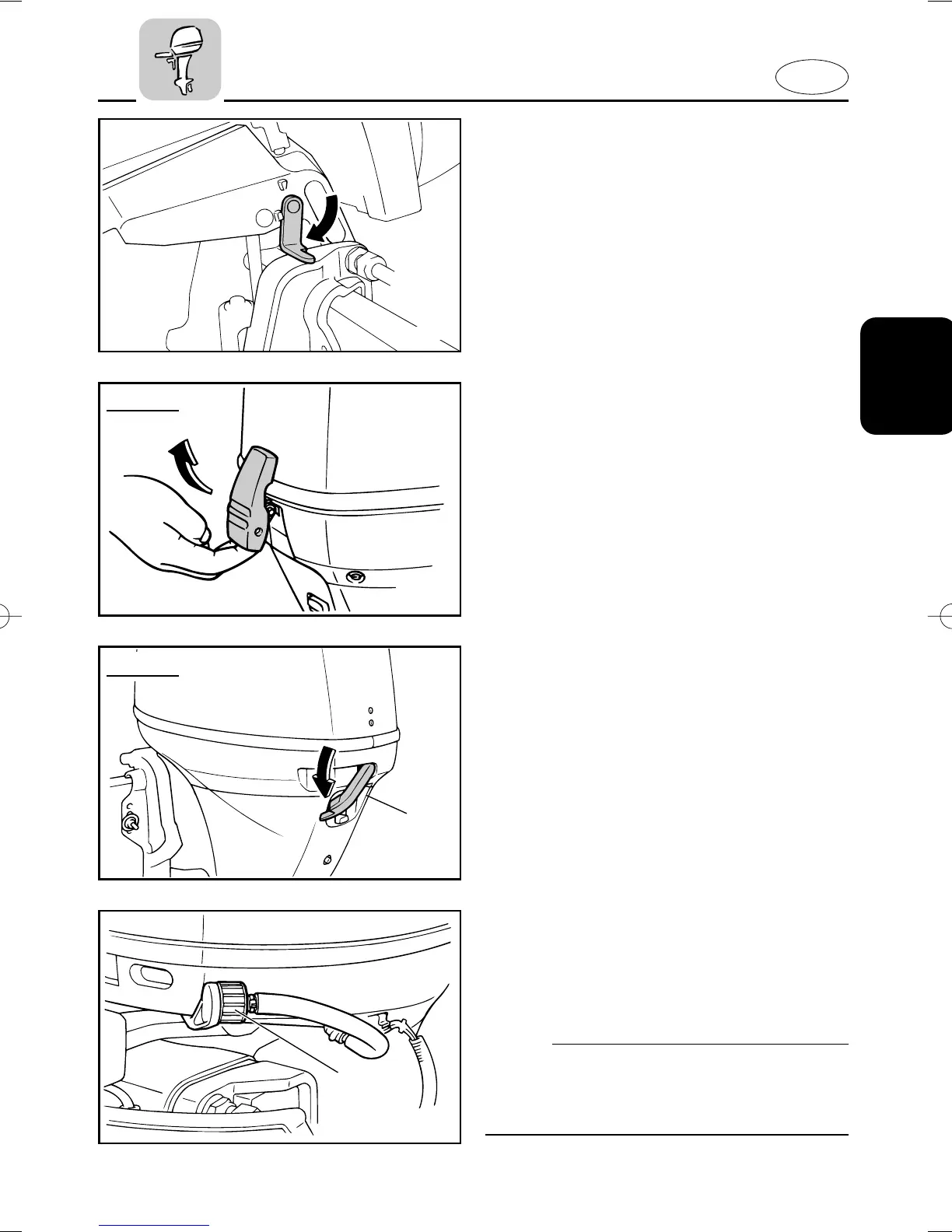

TOP COWLING LOCK LEVER
To remove the engine top cowling, pull
up the lock lever. Then lift off the cowling.
When replacing the cowling, check to be
sure it fits properly in the rubber seal.
Then lock the cowling again by moving
the lever downward.
000971
EMD60010
TILT SUPPORT LEVER
To keep the outboard motor in the tilted-
up position, lock the tilt support lever to
the clamp bracket.
EMU01546
FLUSHING DEVICE
This device 1 is used to clean the cooling
water passages of the motor using a gar-
den hose and tap water.
NOTE:
Refer to “CLEANING COOLING-WATER
PASSAGES” in Chapter 4 for instructions
on usage.
000280
q
EMU00162
TOP COWLING LOCK LEVER
To remove the engine top cowling, turn
the lock lever. Then lift off the cowling.
When replacing the cowling, check to be
sure it fits properly in the rubber seal.
Then lock the cowling again by moving
the lever upward.
1 Top cowling lock lever
001240
q
F60, T60
F50, T50
62Y-9-1C-2 3/20/03 10:22 AM Page 13
