Yamaha Fazer - Instrument and Control Functions; Fuel Information; Fuel Cock Operation

1. Arrow mark

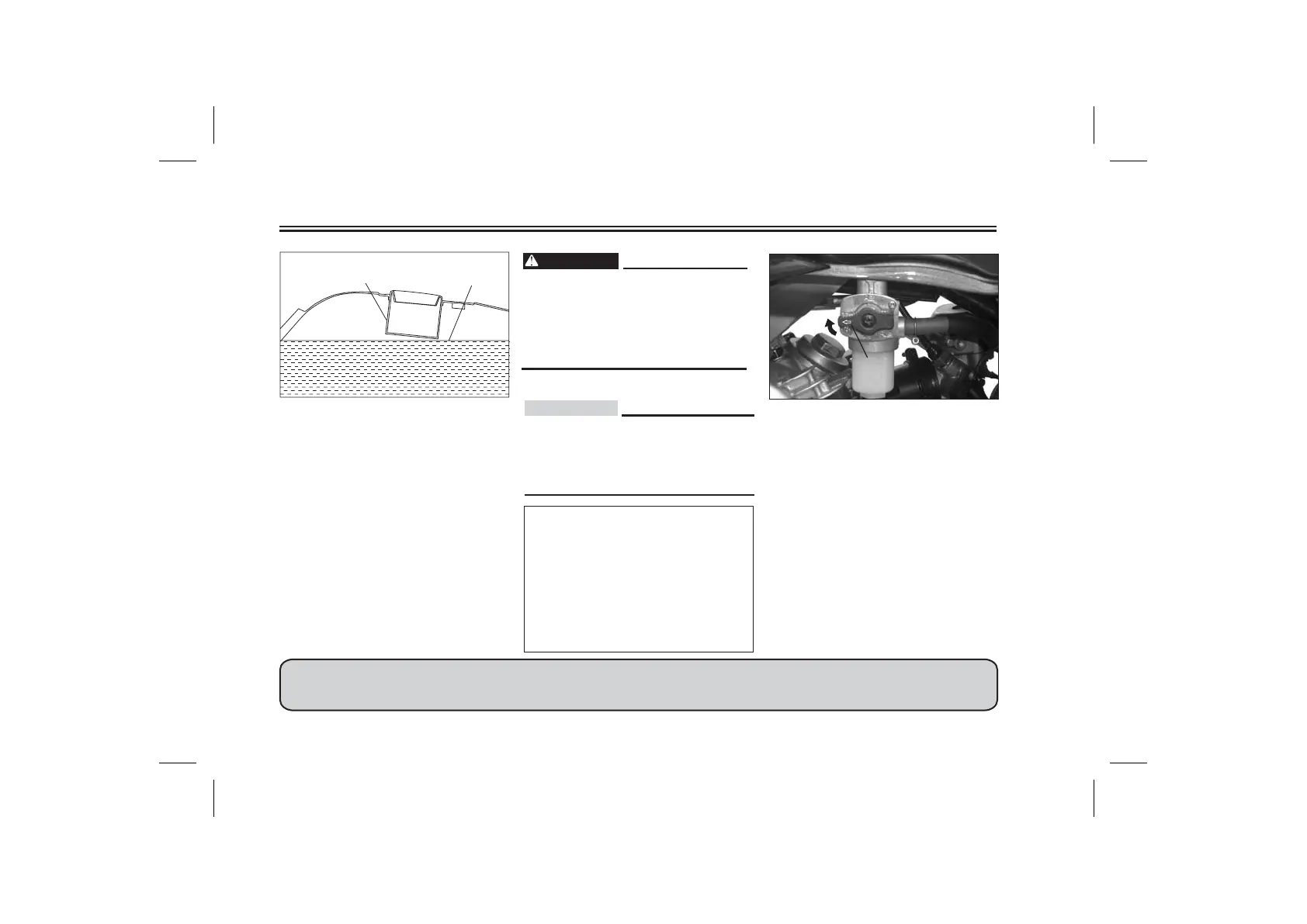

Fuel cock
The fuel cock supplies fuel from the
tank to the carburetor while filtering it
also.
The fuel cock has three positions,
which should be set as shown in the
illustrations.
OFF: With the fuel cock in this
position, fuel will not flow.
Always set the fuel cock to this
position when the engine is not
running.
INSTRUMENT AND CONTROL FUNCTIONS
3-6
Always wipe off spilled fuel
immediately with a dry and clean
soft cloth. Fuel may deteriorate
painted surfaces or plastic parts.
Recommended Fuel :
Fuel tank capacity :
Regular gasoline (Petrol)
Total :
13.0 L
Reserve :
1.2 L
CAUTION :
IT IS A GOOD PRACTICE TO RETURN THE FUEL COCK LEVER TO
"Off" POSITION WHEN ENGINE IS NOT RUNNING
OFF
1
1. Filler tube
2. Fuel level
Fuel
Make sure there is sufficient fuel in the
tank. Fill the fuel tank to the bottom of
the filler tube as shown in the
illustration.
WARNING
1
2
Do not overfill the fuel tank. Avoid
spilling fuel on the hot engine. Do
not fill the fuel tank above the
bottom of the filler tube to avoid
Spillage
6
