Yamaha Fazer - Periodic Maintenance and Minor Repair; Panel Removal and Installation

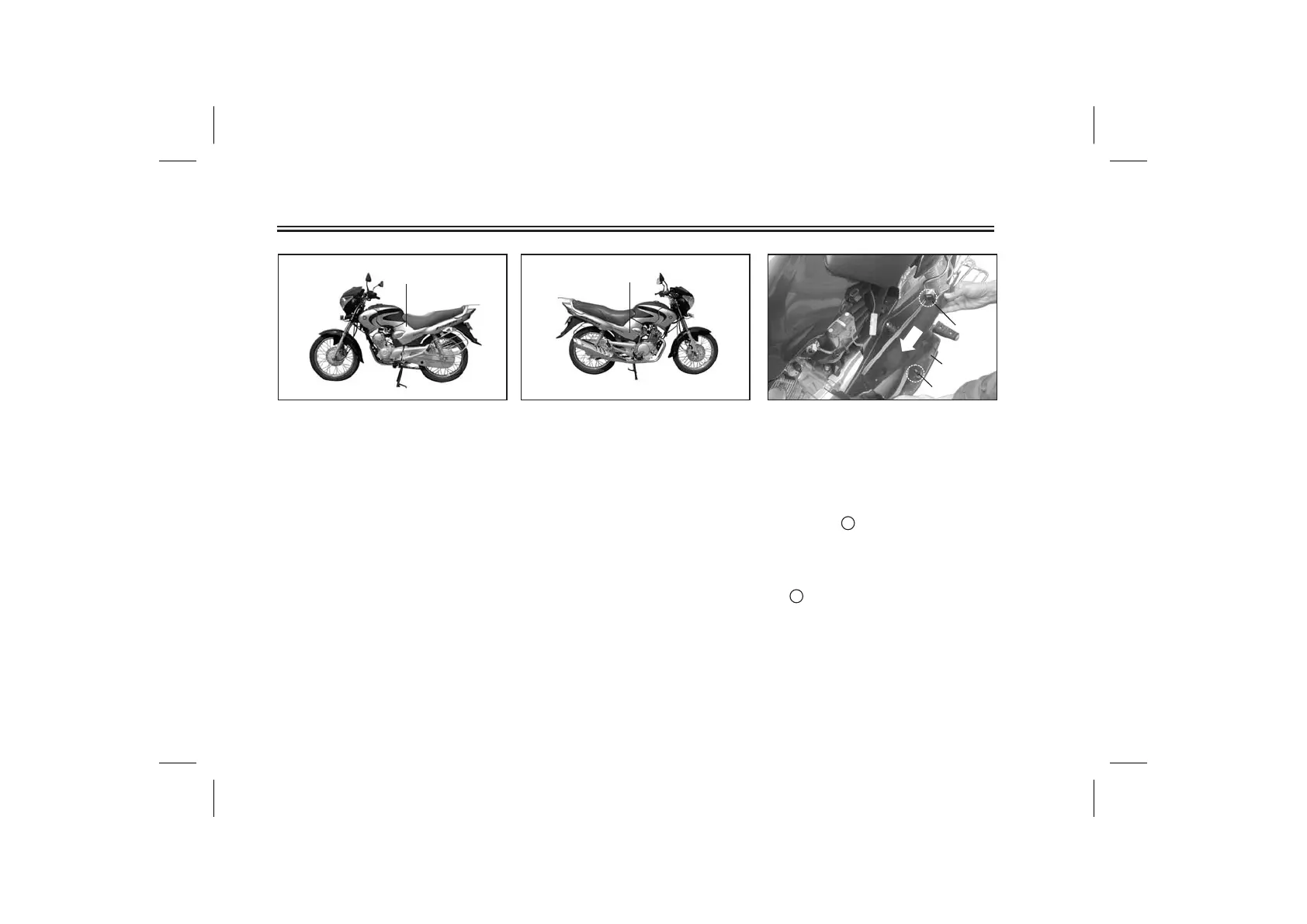

1. Panel A
Panel removal and installa-
tion
The panels illustrated need to be
removed to perform some of the
maintenance described in this
manual. Refer to this section each
time a panel has to be removed or
reinstalled.
2. Panel B
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
1. Lug
2. Panel A
3. Lug
Removal of Panel A
Unlock the panel.
Pull the lug 1 towards you to remove
it from the fuel tank.
Slide the panel A towards the Front
of the motorcycle for removing the
lug 3 to free the panel.
1
2
2
3
1
1
