1. Screw - 2 Nos.
2. Bolt - 1

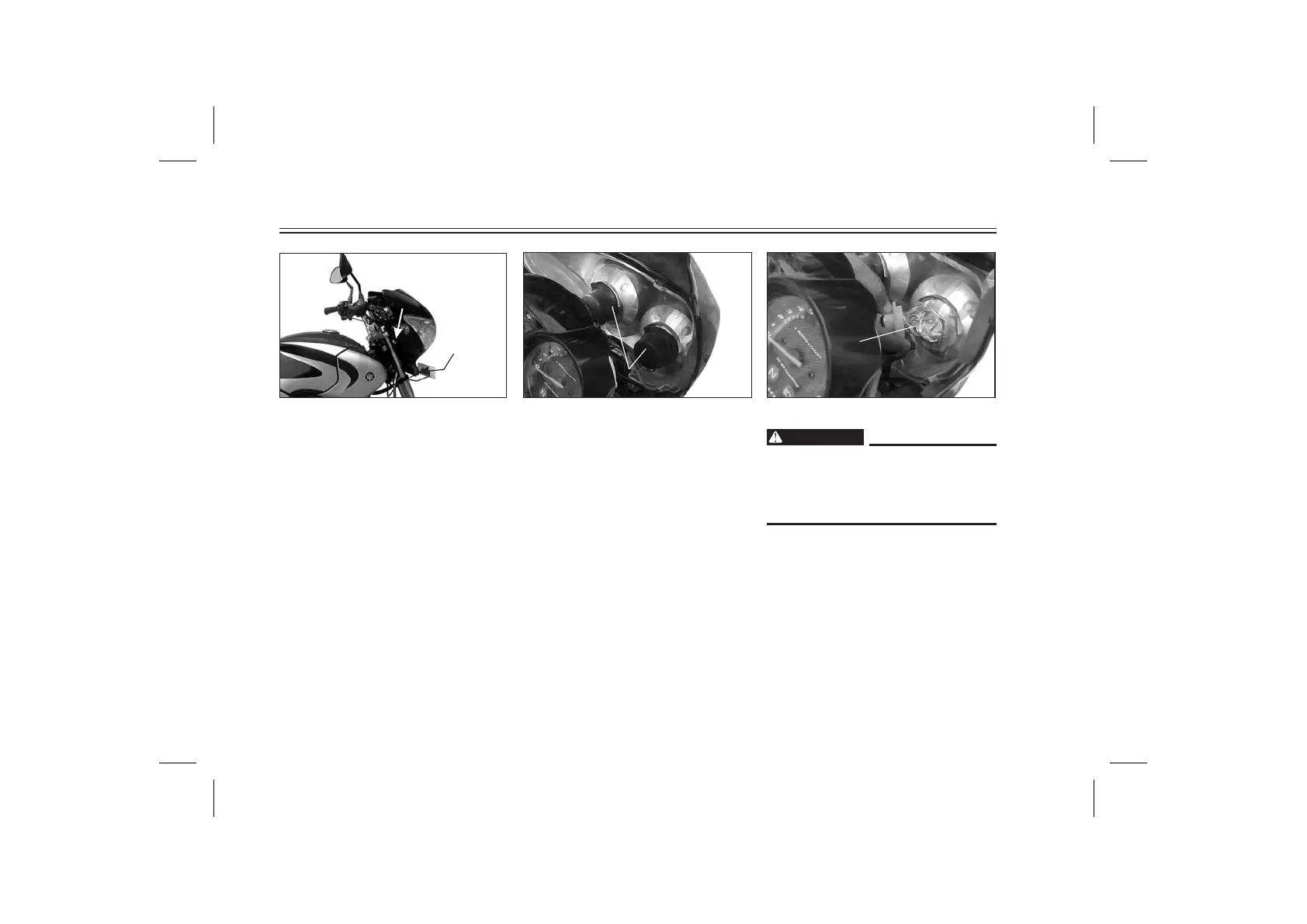

Headlight bulb replacement
If the headlight bulb burns out,
replace the bulb as follows:
1. Remove the two screws from
theHead Light Cowling "1"..
2. Loosen the Bolt "2" below the
Headlight Cowling.
3. Slide Headlight forward..
(LH & RH)
No.
1. Bulb holder - 2 Nos.
4
. Remove the defective bulb from
the bulb holder whichever is
fused.
1. Bulb 2 Nos. (LH & RH)
Keep flammable products and
your hands away from the bulb
while it is on, as it is hot. Do not
touch the bulb until it cools down.
5. Put a new bulb into position and
secure it in place with the bulb
holder.
6. Install the Head LightAssy.
7. If the headlight beam adjustment
is necessary, ask a YAMAHA
dealer to make adjustment.
