CONNECTIONS
Connecting external components
En 29

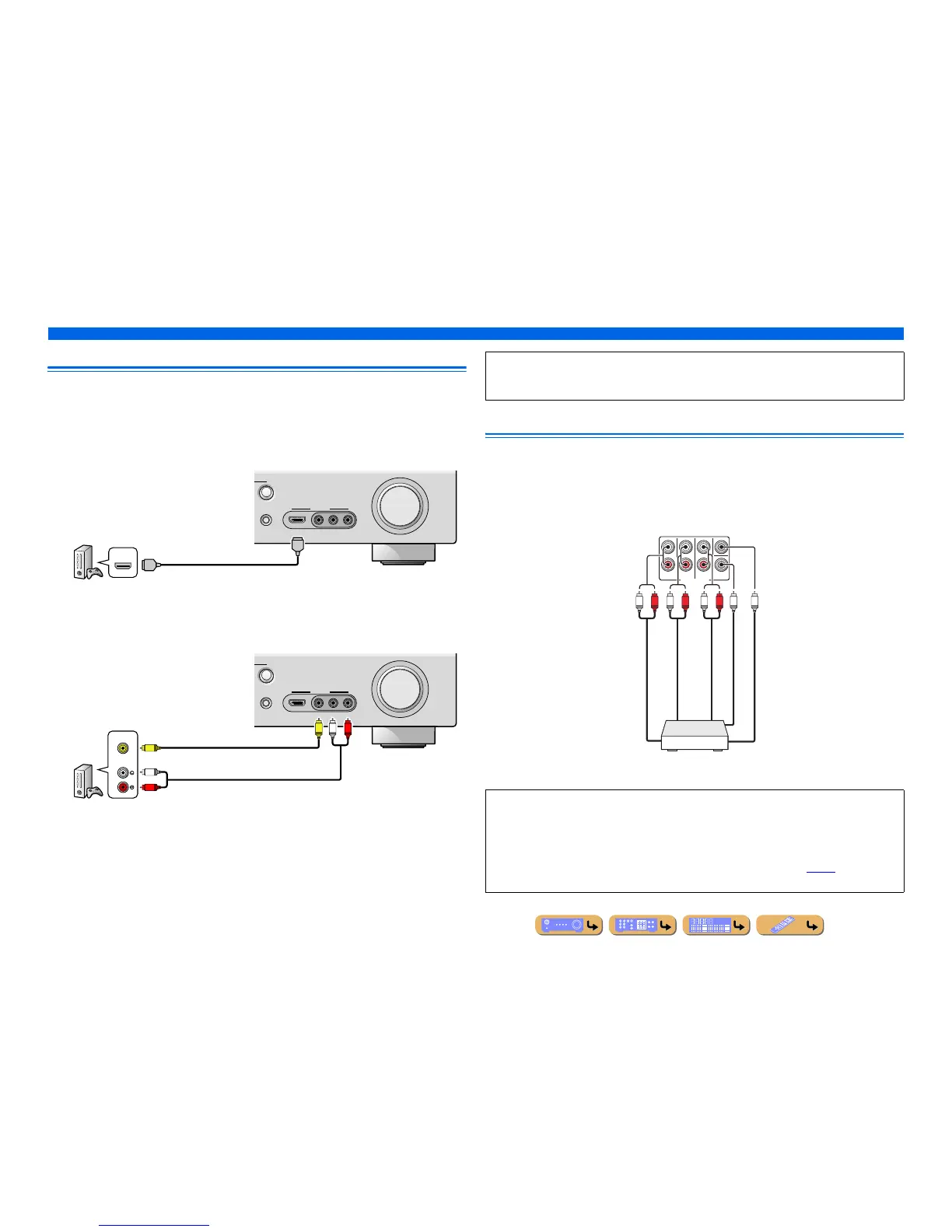

Connecting game consoles
Use the VIDEO AUX jacks on the front panel to temporarily connect devices such as a game console to
the receiver.
Select the V-AUX input to use these connected devices.
■
When connecting an HDMI compatible device
Connect the HDMI output of the device to the HDMI IN jack of this unit.
■
When connecting an non-HDMI compatible device
Connect the video and audio outputs of the device to the VIDEO and AUDIO jacks of this unit.
Connecting a multi-format player or an external decoder
This unit has 8 sets of input jacks (FRONT L/R, CENTER, SURROUND L/R, SUR. BACK and
SUBWOOFER) to input multi-channel analog sound signals. If your playback component, such as a
DVD player or SACD player, has multi-channel analog output capability, you can enjoy up to 7.1-
channel multi-channel sound. To output multi-channel sound, connect the audio output jacks of your
playback component to the MULTI CH INPUT jacks of this unit, and set the input source of this unit to
“MULTI CH.”
VIDEO
AUX
STRAIGHT
VOLUME
RADIO
VIDEO
AUDIOLR
HDMI IN
HDMI
HDMI
HDMI
HDMI output
Game console
VIDEO
AUX
STRAIGHT
VOLUME
RADIO
VIDEO
AUDIOLR
HDMI IN
AUDIO
VIDEO
R
L
V
V
RL
Video output
Analog audio output
Game console
• Be sure to turn down the volume when connecting this unit and the other devices.
• When both the HDMI connection and the analog video/audio connection are performed between the
HDMI compatible device and this unit, only the HDMI signal will be input.
• When you select “MULTI CH” as the input source, the digital sound field processor and tone control are
automatically disabled.
• Since this unit does not redirect signals input at the MULTI CH INPUT jacks to accommodate for
missing speakers, connect at least a 5.1-channel speaker system when using this feature.
• When the input source is switched to “MULTI CH,” images input from a component connected to the
HDMI1-5, AV1-6, or VIDEO AUX jacks can be displayed on a video monitor (☞
p. 68). If your DVD
player does not support multi-channel digital output, connect it to these input jacks.
MULTI CH INPUT
SUBWOOFER
SUR.BACK
SURROUND
FRONT
CENTER
RL RL RL
Surround out
Front out
Subwoofer out
Center out
Multi-format player/External decoder
(7.1-channel output)
Surround back out
To Next Page
