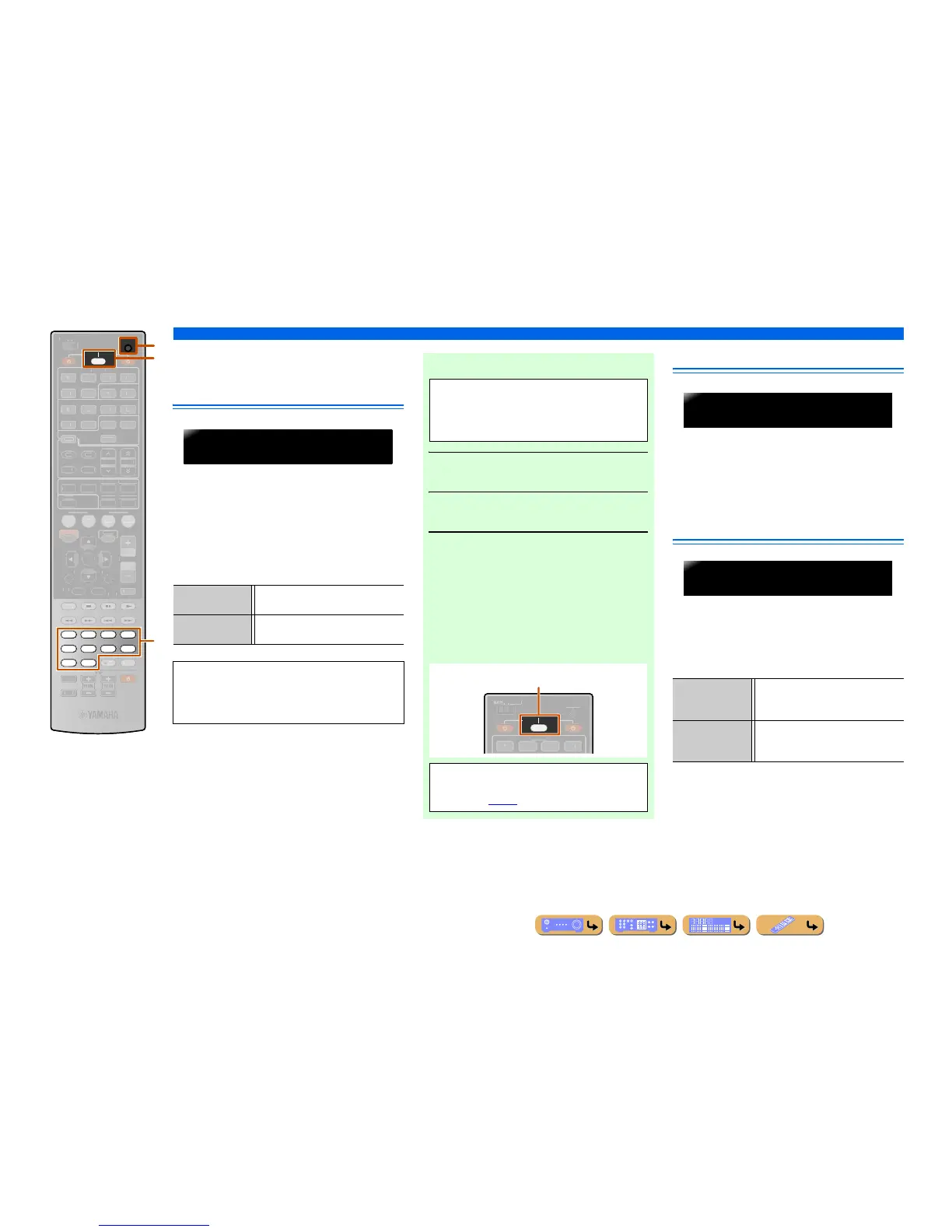

SETUP
Extended functionality that can be configured as needed (Advanced Setup menu)
En 93
Avoiding crossing remote control
signals when using multiple
Yamaha receivers
The remote control of the unit can only receive signals
from a receiver which has an identical ID (remote
control ID). When using multiple Yamaha AV receivers,
you can set each remote control with a unique remote
control ID for its corresponding receiver.
On the contrary, if you are setting the same remote
control ID for all receivers, you can use one remote
control to operate 2 receivers.
Changing TV format
Change the color encoding format of OSD to PAL or
NTSC (default), to match the format used by the TV
connected via the HDMI OUT or VIDEO (MONITOR
OUT) jack.
Removing HDMI video output up-
scaling limits
Removes the up-scaling limitation on video resolution
when this unit and a TV are connected via HDMI jacks.
If a resolution supported by the monitor cannot be
detected when configuring the up-scaling settings, this
setting will remove the output limitation.
m
Numeric keys
oCODE SET
qSOURCE/RECEIVER
7856
90
1234
SOURCE
CODE SET
RECEIVER
SC
ENE
RETURN
V
OLUME
ENHAN
C
E
R
SU
R. DE
CO
DE
S
TRAI
G
HT
S
LEEP
PU
RE DIRE
C
T
MO
VI
E
MUS
I
C
BD
D
V
D
TV
CD
RADI
O
MUTE
ENTER
1
0
R
EC
EN
T
TOP
MEN
U
PO
P-
UP
MENU
DI
S
PLAY
MAIN
ZONE 2
INPUT
MUTE
O
PTI
O
N
ON SCREE
N
FM
I
NF
O
M
EMORY
AM
P
RE
S
ET
HDMI
AV
AU
DI
O
1
2
3
4
1
2
5
V
-A
UX
D
OC
K
MU
LT
I
5
1
2
3
4
6
PH
O
N
O
TUNER
TUNIN
G
o
q
m
ID1 (Default) Receives the remote control signals set in
ID1.
ID2 Receives the remote control signals set in
ID2.
ID1 is set for both remote control and receiver by
default. To avoid crossing remote control, change the
remote control ID for both remote control and
receiver.
REMOTEID-ID1
■ To change the remote control ID
1
Press oCODE SET using a pointed
object such as the tip of a ballpoint pen.
2
Press qSOURCE/RECEIVER.
3
Enter the desired remote control ID code.
To switch to ID1:
Enter “5019” using
mNumeric keys.
To switch to ID2:
Enter “5020” using
mNumeric keys.
Once the remote control code is registered successfully
qSOURCE/RECEIVER will blink twice.
Perform each of the following steps within
1 minute. Settings will be automatically stopped if
more than 1 minute passes since the last operation.
To reset, repeat from step 1.
SOURCE
RECEIVER
HDMI
1
2
3
4
ZONE
2
CO
DE
S
E
T
Registration successful: blinks twice
Registration failed: blinks 6 times
• If setup fails, repeat from step 1.
• Returns to ID1 after the remote control code is
initialized (☞
p. 91).
YES (Default) Video output signals of a resolution not
supported by the TV will not be
transmitted.
SKIP This unit ignores the TV’s support
capability and transmits input video
signals to the TV.
TVFORMAT-NTSC
MON.CHK-YES
