3
CONNECTIONS
This unit (KX-E300)
Do not plug in this unit (or other components) until all connections are
complete.
• Connections should be made to the correct input/output jacks on the other component.
• Also refer to the owner’s manual supplied with the component you are connecting.
• If the placement of this unit causes noise in other equipment, such as a tuner, move them farther apart.
• The connection using the SYSTEM CONNECTOR jack allows you to control this unit as well as the connected
components of YAMAHA Piano Craft series. Make connections between the Piano Craft series components using the
system control cable.

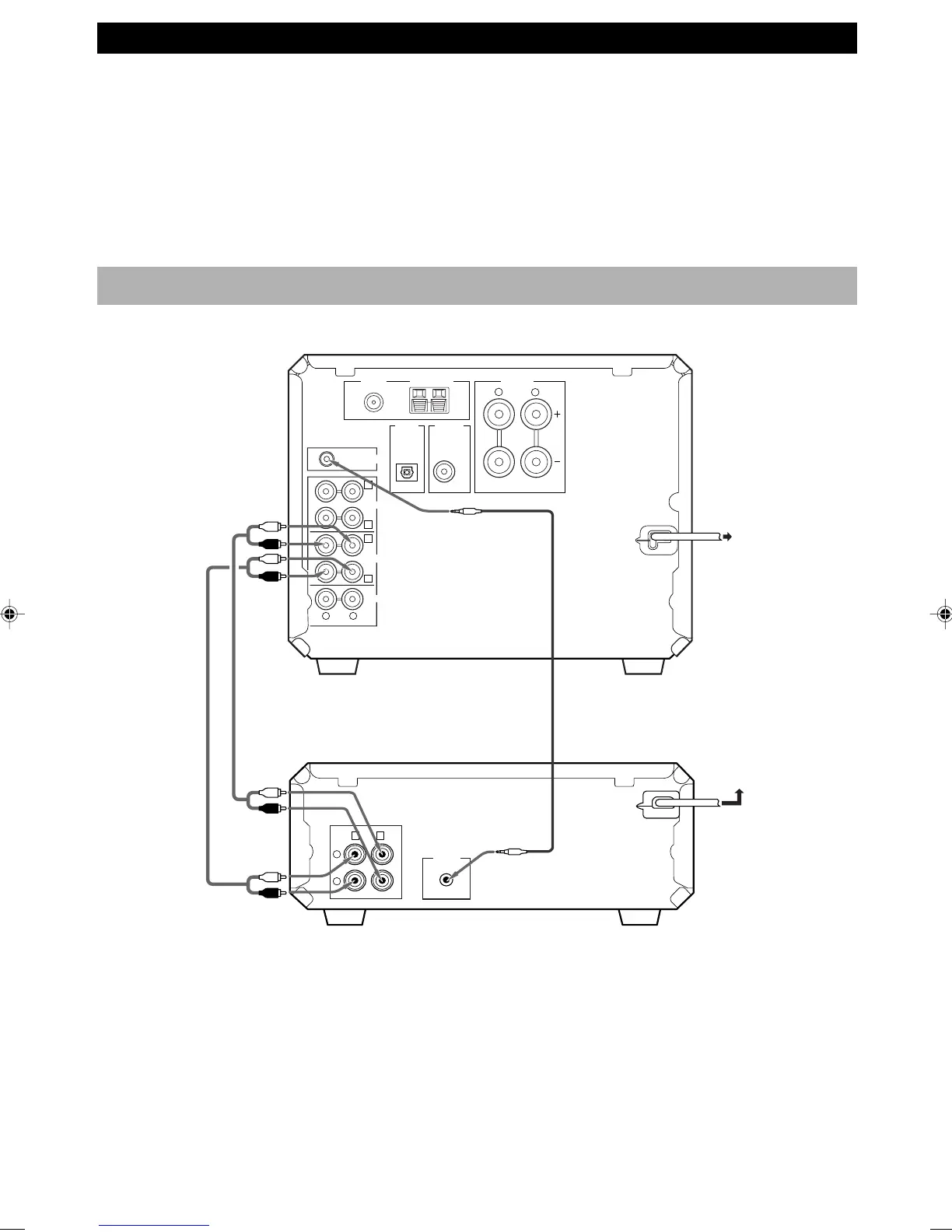

Connecting CRX-E300
MD
TAPE
IN
OUT
IN
IN
OUT
AUX
D
A
B
LR
C
OUT
6
Ω
MIN. /SPEAKER
OUT
DIGITAL
SUBWOOFER
OPTICAL
SPEAKERS
RL
FM ANT
GND – AM ANT
75Ω UNBAL.
SYSTEM CONNECTOR
SYSTEM
CONNECTOR
IN
L
B
OUT
R
A
CD receiver (CRX-E300)
Audio pin cables
(included)
System control cable
(included)
To wall outlet
To CRX-E300
• The analog OUT jacks on this unit are marked Å and the analog IN jacks are marked ı. When connecting this unit to
CRX-E300 whose jacks are marked Å, ı, Ç and Î, connect this unit’s analog OUT jacks to the input jacks marked Å
and connect this unit’s analog IN jacks to the output jacks marked ı on the rear panel of CRX-E300.
• The SYSTEM CONNECTOR jack should be connected to the SYSTEM CONNECTOR jack on CRX-E300.
• To reduce the standby power consumption, connect the AC power cord of this unit to the switched AC outlet on
CRX-E300 (except for the U.K. model).
• If you add MDX-E300 (not available in some areas) to your system, you can connect the system connector jack to the
SYSTEM CONNECTOR jack on MDX-E300. Also, you can connect the power cord to the AC OUTLET on MDX-E300
(except for the U.K. model).
0103KXE300(UB).1-4.E 02.5.21, 2:29 PM3
