CHAS
6-8
EAS00542*

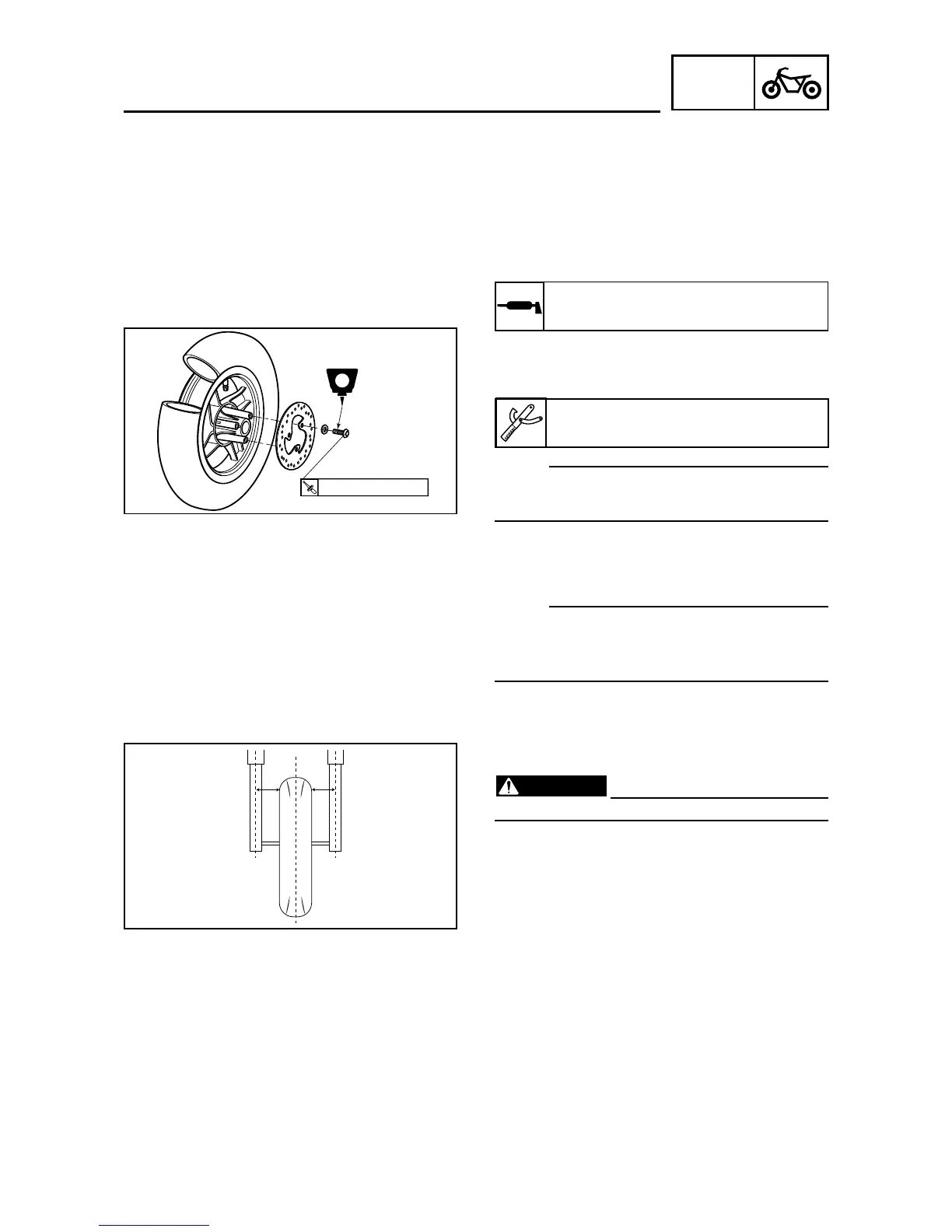

INSTALLING THE FRONT WHEEL
1.Lubricate:
• Wheel axle
• Wheel bearings
• Oil seal lips
• Speedometer drive gear
• Speedometer driven gear
Recommended lubricant
Lithium soap base grease
2.Install:
• Brake disc
Brake disc bolt
23 Nm (2.3 m • kg)
NOTE:
Tighten the brake disc bolts in stages and in a
crisscross pattern.
3.Install:
• Speedometer gear unit
NOTE:
Make sure the speedometer gear unit and the
wheel hub are installed with the two projections
meshed into the two slots respectively.
4.Install:
• Front wheel
Be sure to assemble the front wheel as shown.
Difference between A and B < 3 mm
FRONT WHEEL AND BRAKE DISC
WARNING
A
B
T
.R
23 Nm (2,3 m.kg)
LT
