FRONT BRAKE
EAS00635

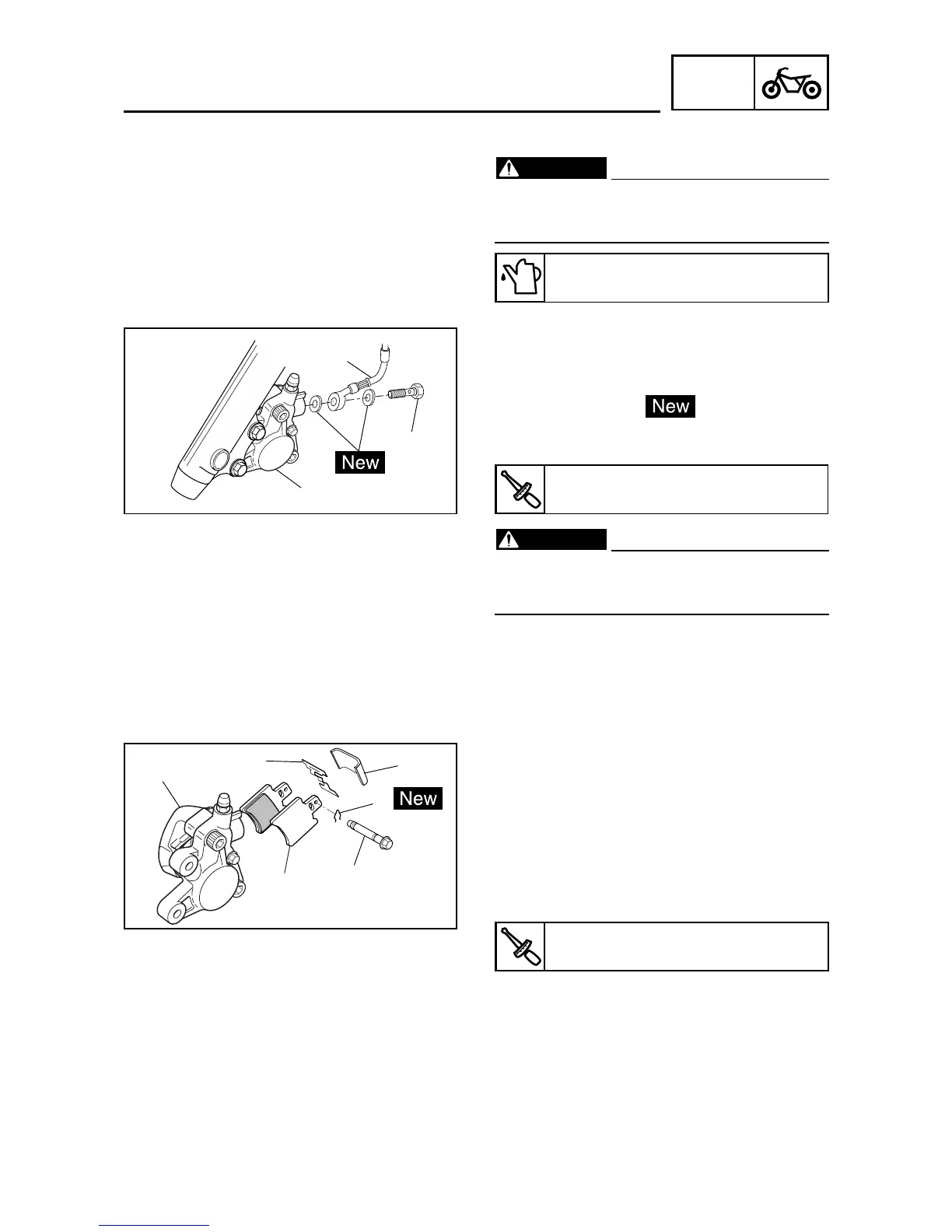

INSTALLING THE FRONT BRAKE CALIPER
Before installation, all internal brake
components should be cleaned and
lubricated with clean or new brake fluid.
Recommended brake fluid
DOT #3 or DOT #4
1.Install:
• brake caliper
(temporarily)
• copper washers
• brake hose
• union bolt
Union bolt
23 Nm (2.3 m • kg)
Proper brake hose routing is essential to
insure safe scooter operation. Refer to
"CABLE ROUTING".
2.Remove:
• brake caliper
3.Install:
• brake pads
• brake pads springs
• brake pads retaining pin
• brake pads retaining clip
• Brake pads cap
• brake caliper
Refer to "REPLACING THE BRAKE PADS".
Brake caliper bolt
31 Nm (3.1 m • kg)
