Yamaha MT09 - Description of Motorcycle Parts; Left View Component Identification

2-1
1
2
3
4
5
6
7
8
9
10
11
12
Description
EAU10411

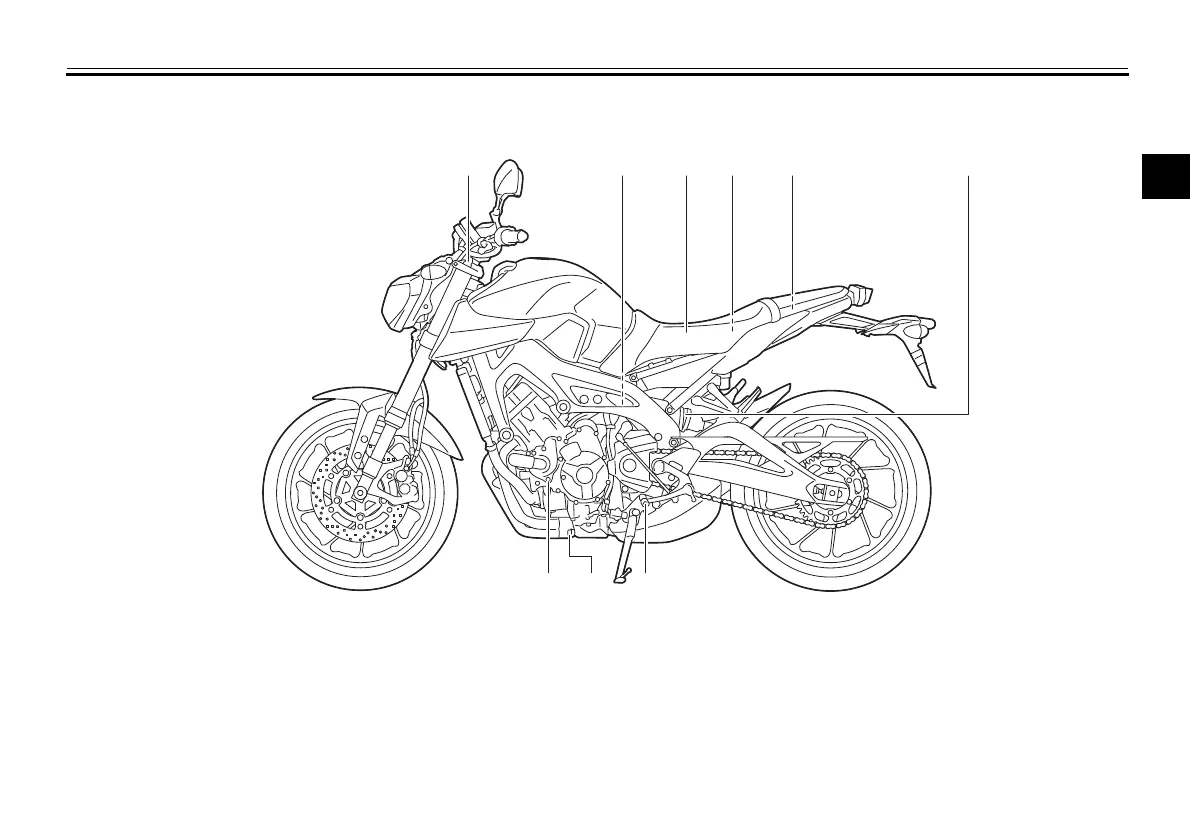

Left view
1 2 3 4,5,6 7 8
911 10
1. Front fork spring preload adjusting bolt (page 3-26)
2. Shock absorber assembly rebound damping force adjusting screw
(page 3-28)
3. Seat (page 3-25)
4. Fuse box 2 (page 6-31)
5. Main fuse (page 6-31)
6. Fuel injection system fuse (page 6-31)
7. Storage compartment (page 3-26)
8. Shock absorber assembly spring preload adjusting ring (page 3-28)
9. Shift pedal (page 3-18)
10.Engine oil drain bolt (page 6-9)
11.Coolant drain bolt (page 6-12)
