Yamaha MT09 - Replacing Auxiliary Light Bulbs

Periodic maintenance and adjustment
6-36
1
2
3
4
5
6
7
8
9
10
11
12
8. Place a new headlight bulb into po-
sition, then secure it with the bulb
holder.
9. Install the headlight bulb cover.
10. Install the headlight unit as shown,
and then connect the headlight
coupler.
11. Connect the auxiliary light coupler.
12. Align the holes in the headlight unit
with the holes in the headlight unit
cover.
13. Install the grommets.
14. Place the headlight unit side cov-
ers in their original position, and
then install the bolts.
15. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU58021
Replacing an auxiliary light
bulb
This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove the headlight unit side
covers by removing the bolts on
each side.

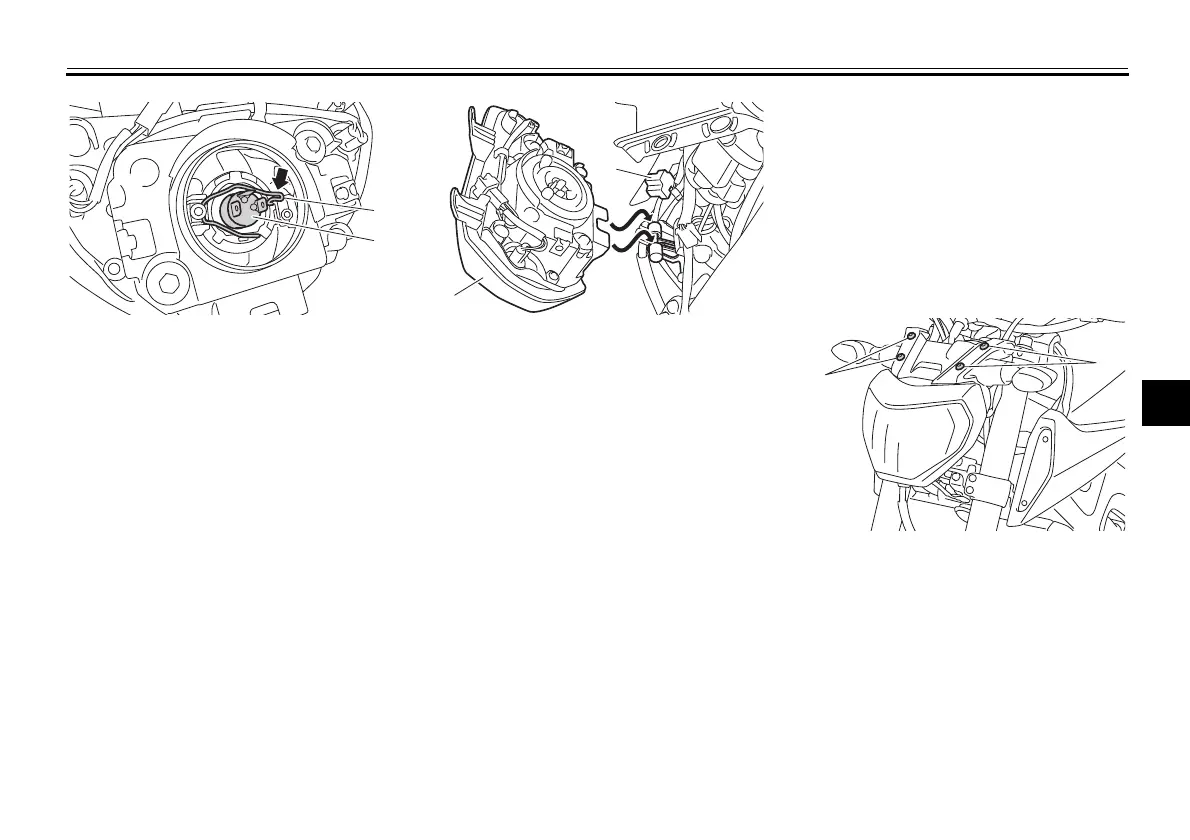

1. Headlight bulb holder
2. Headlight bulb
1
2
1. Headlight unit
2. Headlight coupler
1
2
1. Bolt
1
1
