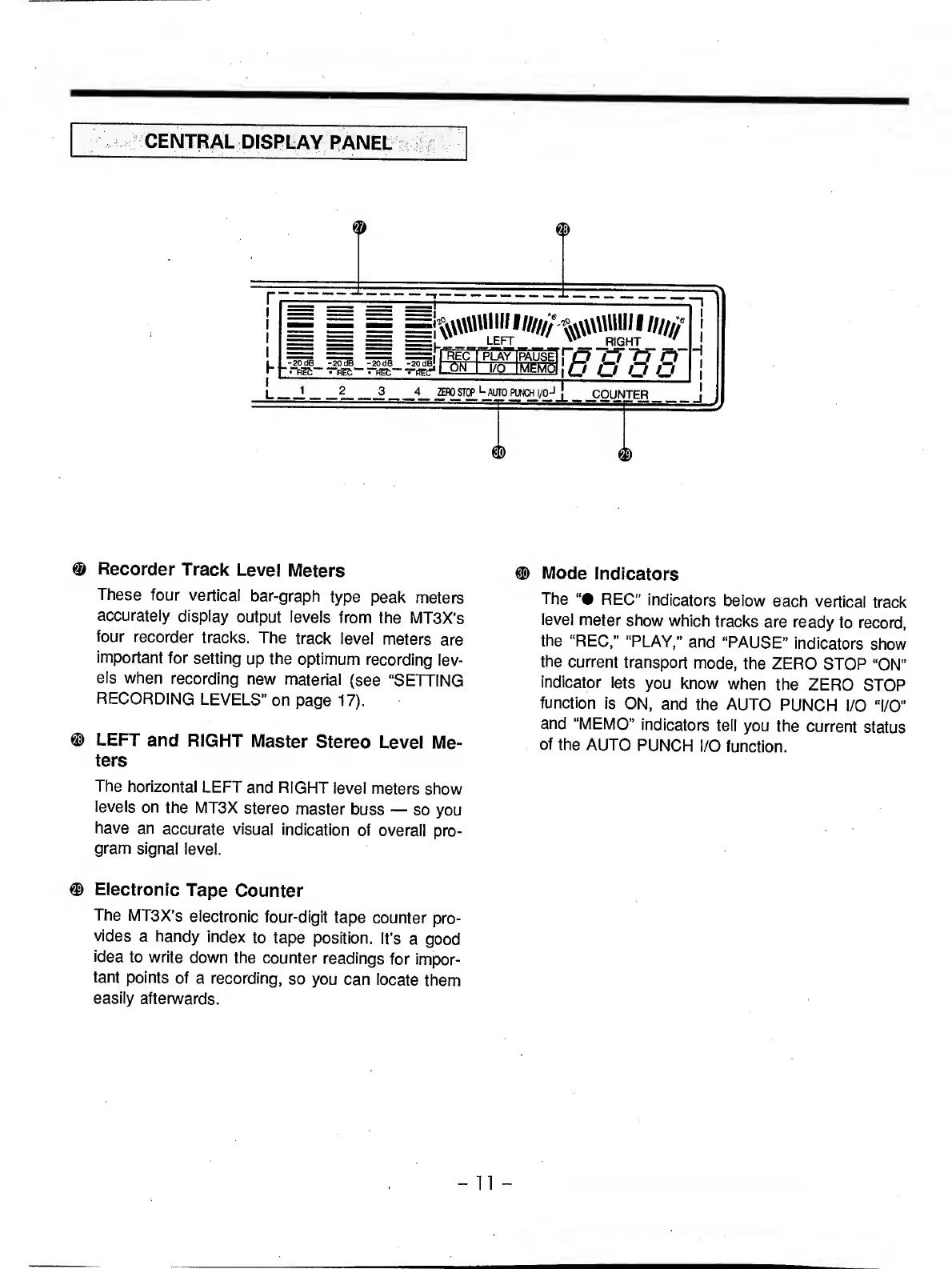

CENTRAL DISPIIAY PANEL
@ Recorder Track Level Meters
These four vertical bar-graph type peak meters
accurately display output levels from the MT3X’s
four recorder tracks. The track level meters are
important for setting up the optimum recording lev¬
els when recording new material (see “SETTING
RECORDING LEVELS” on page 17).
® LEFT and RIGHT Master Stereo Level Me¬
ters
The horizontal LEFT and RIGHT level meters show
levels on the MT3X stereo master buss — so you
have an accurate visual indication of overall pro¬
gram signal level.
® Electronic Tape Counter
The MT3X’s electronic four-digit tape counter pro¬
vides a handy index to tape position. It’s a good
idea to write down the counter readings for impor¬
tant points of a recording, so you can locate them
easily afterwards.
® Mode Indicators
The “• REC” indicators below each vertical track
level meter show which tracks are ready to record,
the “REC,” “PLAY,” and “PAUSE" indicators show
the current transport mode, the ZERO STOP “ON”
indicator lets you know when the ZERO STOP
function is ON, and the AUTO PUNCH I/O “I/O”
and “MEMO” indicators tell you the current status
of the AUTO PUNCH I/O function.
