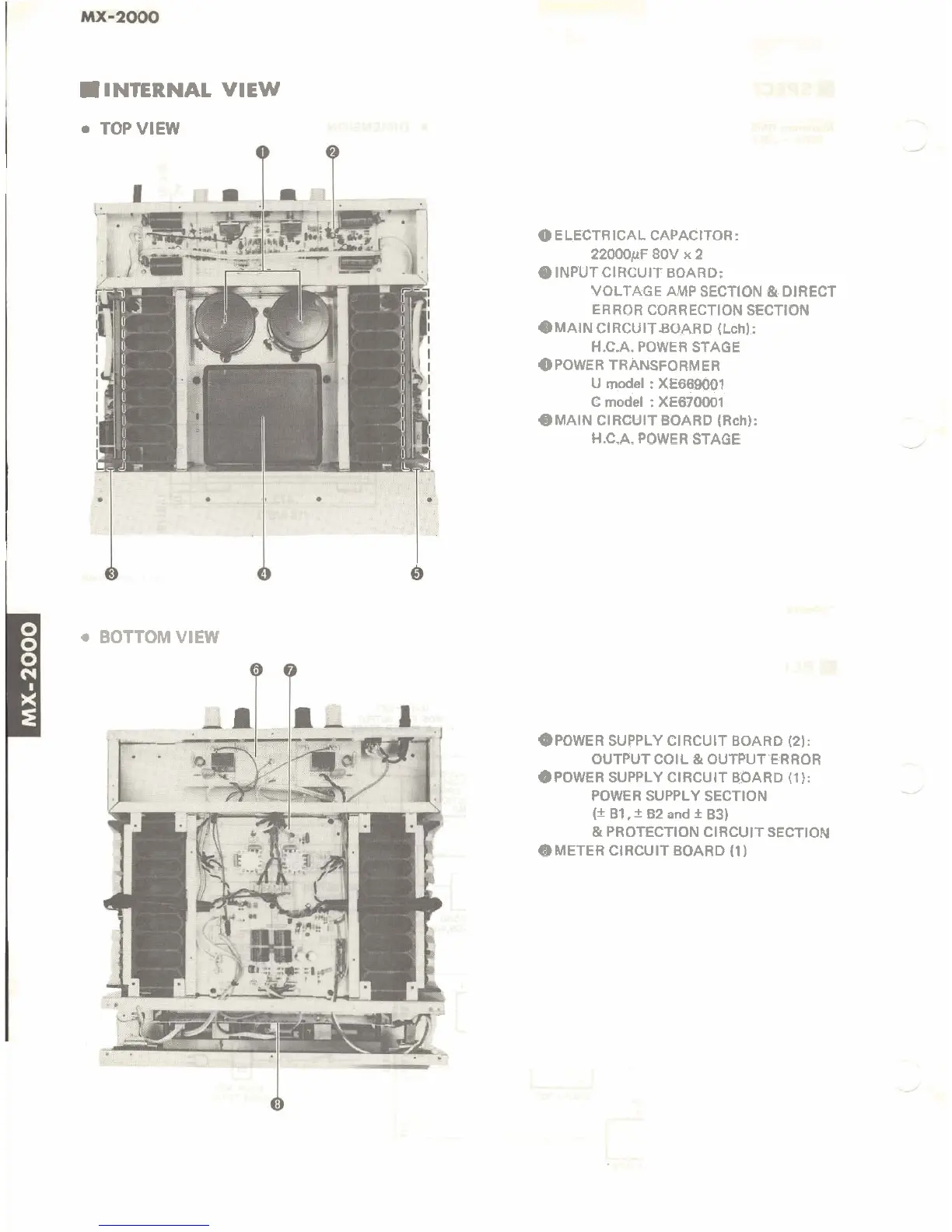

Yamaha MX-2000 - INTERNAL VIEW

.INTERNAL VIEW
TOP VlEW
BOTTOM VlEW
0 ELECTRICAL CAPACITOR:
22000pF 80V x 2
OINPUTCIRCUIT BOARD:
VOLTAGE AMP SECTION 81 DIRECT
ERROR CORRECTION SECTION
@MAIN CIRCUITBOARD (Lch):
H.C.A. POWER STAGE
@POWER TRANSFORMER
U
model : XE669001
C model : XE670001
@MAIN CIRCUIT BOARD (Rch):
H.C.A. POWER STAGE
@POWER SUPPLY CIRCUIT BOARD (2):
OUTPUT COIL 81 OUTPUT ERROR
POWER SUPPLY CIRCUIT BOARD (11:
POWER SUPPLY SECTION
(* B1.f BZandiB3)
&PROTECTION CIRCUITSECTION
@METER CIRCUIT BOARD (1)
