Yamaha P5000S - Rear Panel Overview

7
P5000S/P7000S
SUB
WOOFER
LOW CUT
ON
STEREO BRIDGE PARALLEL
INPUT
SPEAKERS
BRIDGE
OFF
OFF
1
1
+
-
+
-
+
-
+
-
2
2
1
1
+
-
+
-
SUB
WOOFER
LOW CUT
OFF
FREQUENCY
Hz
25 150
90
50
125
FREQUENCY
11
2332
L
O
C
K
L
O
C
K
++ --
(+)(-)
Hz
25 150
90
50
125
qw
er
t
y

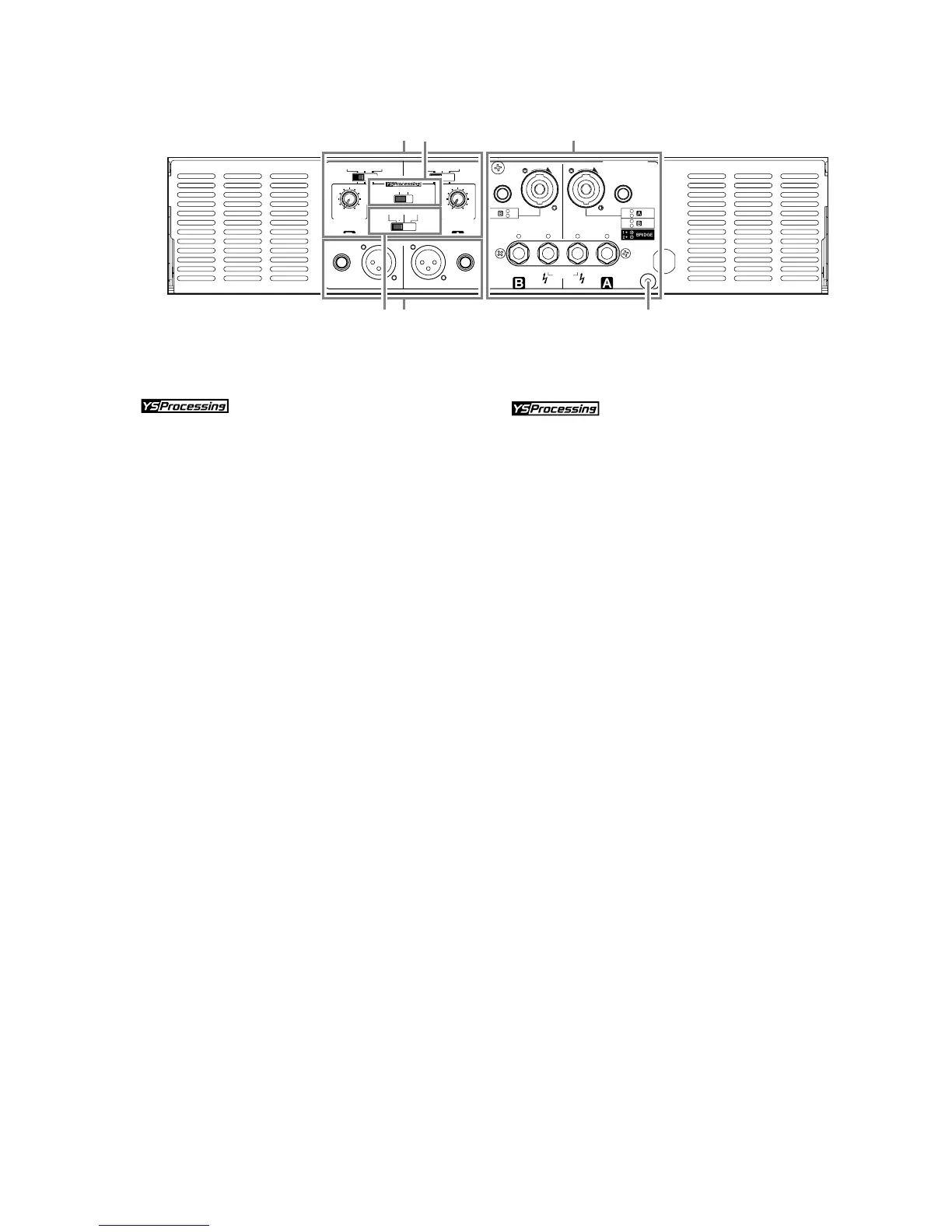

q FILTER switch and[FREQUENCY] adjustment knob
(One pair for each channel)
w [
]
ON/OFF switch
e [INPUT] jacks (Channels A, B)
r [STEREO/PARALLEL/BRIDGE] switch
t [SPEAKERS] jacks
y GND terminal
qFILTERスイッチ、[FREQUENCY]調整つまみ
（チャンネルA、B）
w[
 
]切り替えスイッチ
e[INPUT]端子（チャンネルA、B）
r[STEREO/PARALLEL/BRIDGE]モード切り替えスイッチ
t[SPEAKERS]端子
yGND端子
・Rear Panel（リアパネル）
