98 PSR-S975/S775 Owner’s Manual
You can connect a stereo system to amplify the instrument’s sound by using the
OUTPUT [L/L+R]/[R] jacks.
You can use the instrument’s [MASTER VOLUME] dial to adjust the volume of the
sound output to the external device.
You can connect the headphone jack of a portable audio player to the instrument’s
[AUX IN] jack, letting you hear the sound of that portable audio player through the
built-in speakers of the instrument.
The input signal from the [AUX IN] jack is affected by the setting of the
instrument’s [MASTER VOLUME] dial, and the volume balance with other
sounds played on the keyboard can be adjusted from the BALANCE display
(page 57).

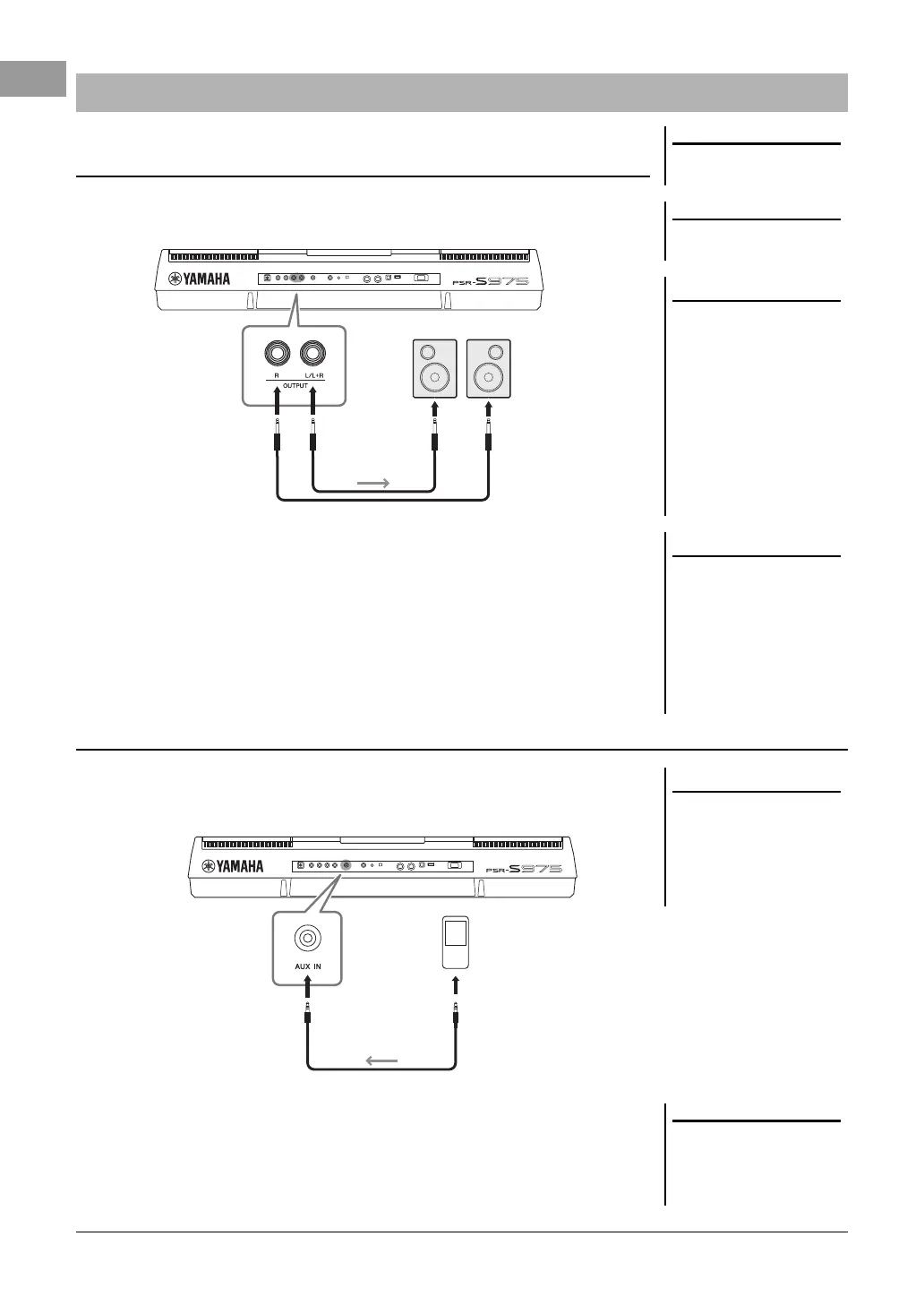

Connecting Audio Devices (OUTPUT [L/L+R]/[R] jacks, [AUX IN] jack)
Use audio cables and adaptor plugs
having no (zero) resistance.
Use only the [L/L+R] jack for connec-
tion with a monaural device.
To avoid possible damage, first
turn on the power to the instru-
ment, then to the external
device. When turning off the
power, first turn off the power to
the external device, then to the
instrument. Since this instru-
ment’s power may automatically
be turned off due to the Auto
Power Off function (page 17),
turn off the power to the external
device, or disable Auto Power
Off when you do not intend to
operate the instrument.
Do not route the output from the
OUTPUT jacks to the [AUX IN]
jack. If you make this connec-
tion, the signal input at the [AUX
IN] jack is output from the [OUT-
PUT] jacks and then back again,
creating a feedback loop that
could make normal performance
impossible, and may even dam-
age the equipment.
Using an External Stereo System for Playback
Audio signal
Phone plug
(standard)
Audio cable
Phone plug
(standard)
Input jack
Powered speaker
Playing a Portable Audio Player with the Built-in Speakers
To avoid damage to the devices,
first turn on the power to the
external device, then to the
instrument. When turning off the
power, first turn off the power to
the instrument, then to the exter-
nal device.
Phone plug
(stereo mini)
Audio cable
Phone plug
(stereo mini)
Headphone jack
Portable audio
player
Audio signal
You can also adjust the input volume
by using the LIVE CONTROL knobs.
For instructions on how to assign the
functions to the knobs, refer to
page 40.
