I/O devices and external head amps
V5.1 Supplementary Manual
9

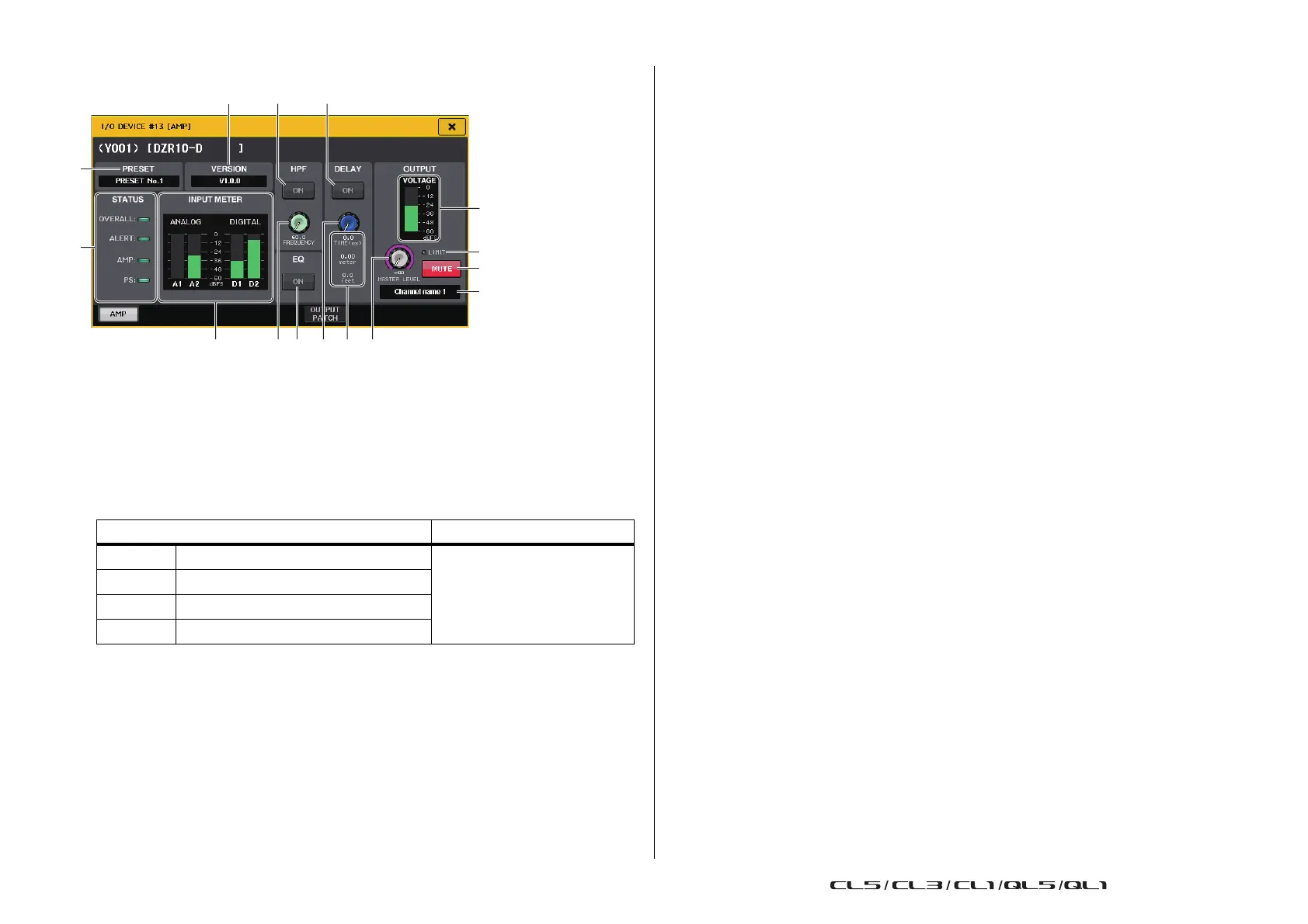

 For Yamaha DZR-D series, DXS XLF-D series
1
PRESET
Displays the set preset number and title.
2 VERSION
Displays the firmware version of the device.
3 STATUS indicator
Indicates the status of the device.
* ALERT indicator display is green and red only. When an alert occurs, the indicator turns red and the alert
contents are displayed at the bottom of the screen.
4 INPUT meter
Displays both the input analog input levels and digital input levels.
5 HPF ON button (DZR-D series only)
Switches the HPF on or off. The LPF is hidden and always on.
6 HPF/LPF FREQUENCY knob
Sets the HPF frequency for DZR-D series or the LPF frequency for DXS XLF-D series.
7 EQ ON button
Switches the EQ on or off.
8 DELAY ON button
Switches the delay on or off.
9 DELAY knob
Sets the delay time.
0 DELAY TIME
Displays the delay time by time (TIME) and distance (meter, feet).
A Output level meter
Displays the output level of the speakers.
B MASTER LEVEL knob
Sets the output level.
C LIMIT indicator
Lights while the limiter for amplifier or power supply protection is applied.
D MUTE button
Switches the mute on or off.
E Channel name
Displays the channel name (the LABEL for the DZR).
Status Indicator display
OVERALL Overall status of the device
Green: Normal operation
Yellow: Fault detection
Orange: Temporary malfunction
Red: Malfunction that cannot
be resolved
ALERT Alert
AMP Operating status of each amplifier channel
PS
Operating status of power supply unit
3
1
2 5 8
4
7 :6 9 B
A
D
E
C
