Periodic maintenance and adjustment
7-22
7

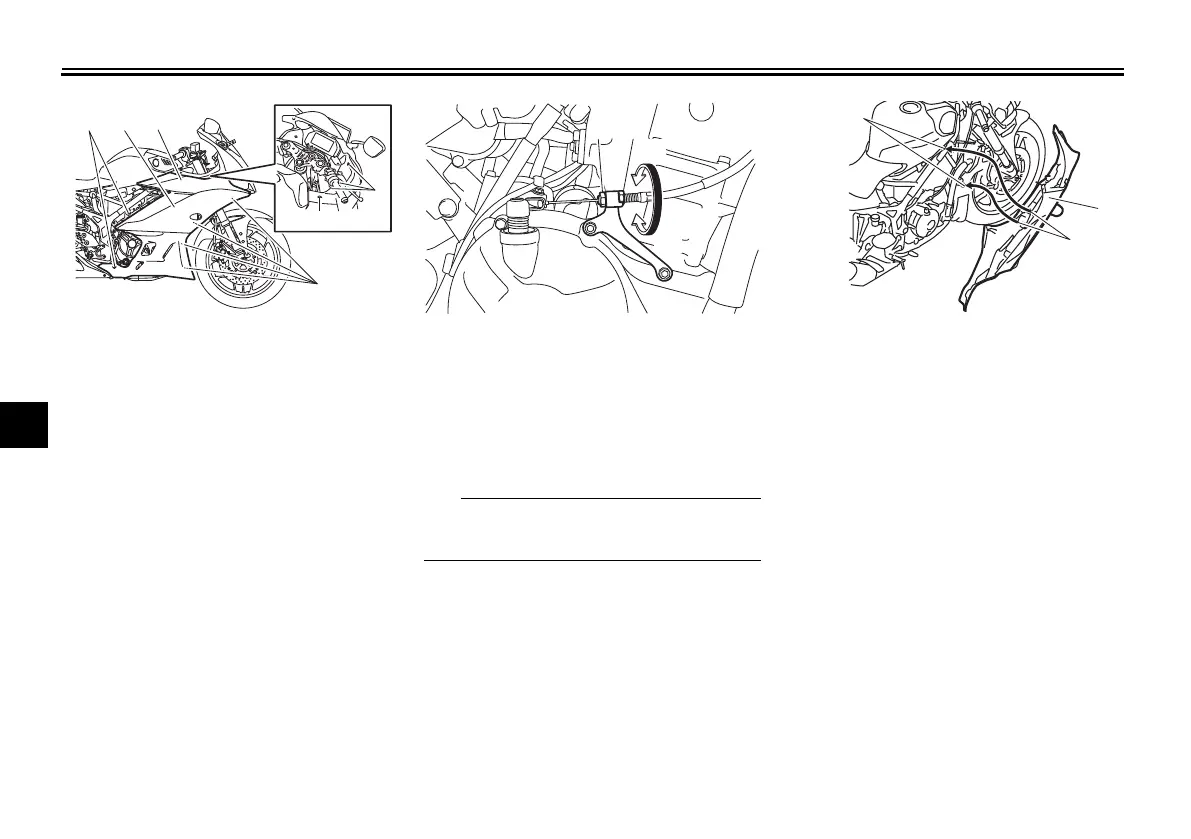

6. Loosen the locknut at the crank-
case.
7. To increase the clutch lever free
play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free
play, turn the adjusting nut in di-
rection (b).
8. Tighten the locknut at the crank-
case.
9. Install the right side cowling and
then install the upper panel.
TIP
Fit the projections on the cowling into
the holes as shown.
10. Install the right side panel.
11. Tighten the locknut at the clutch
lever.
1. Quick fastener
2. Panel
3. Bolt
4. Right side cowling
5. Screw
5
3
343
2
1
1. Locknut
2. Clutch lever free play adjusting nut
2
(b)
(a)
1
1. Hole
2. Projection
3. Right side cowling
1
3
2
