Yamaha R3 2021 - Vehicle lights

Periodic maintenance and adjustment
7-36
7
EAUN2261
Vehicle lights
This model is equipped with LED lights
for headlights, auxiliary lights and
brake/tail light. If a light does not come
on, check the fuse and then have a
Yamaha dealer check the vehicle.
NOTICE
ECA16581
Do not affix any type of tinted film or
stickers to the headlight lens.
EAU62590
Replacing a turn signal light
bulb
1. Remove the turn signal light lens
by removing the screw.
2. Remove the turn signal light bulb
socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
6. Install the turn signal light lens by
installing the screw. NOTI CE: Do
not overtighten the screw, oth-
erwise the lens may break.
[ECA11192]

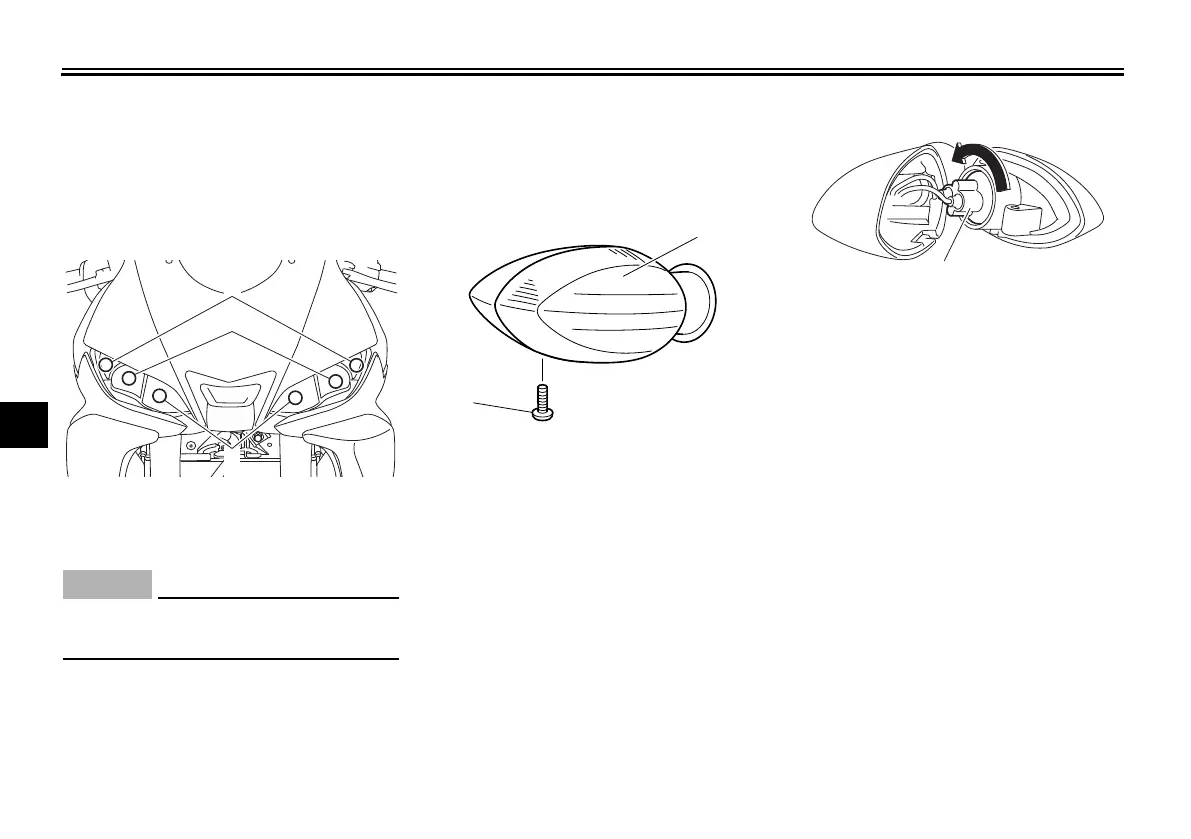

1. Auxiliary light
2. Headlight (low beam)
3. Headlight (high beam)
1
2
3
1. Turn signal light lens
2. Screw
1
2
1. Turn signal light bulb socket
1
