Yamaha RX-A1010 Easy Setup Guide

2 En
Set up the speakers in the room by using the following diagram as a reference.
For information on other speaker systems, refer to “Owner’s Manual”.

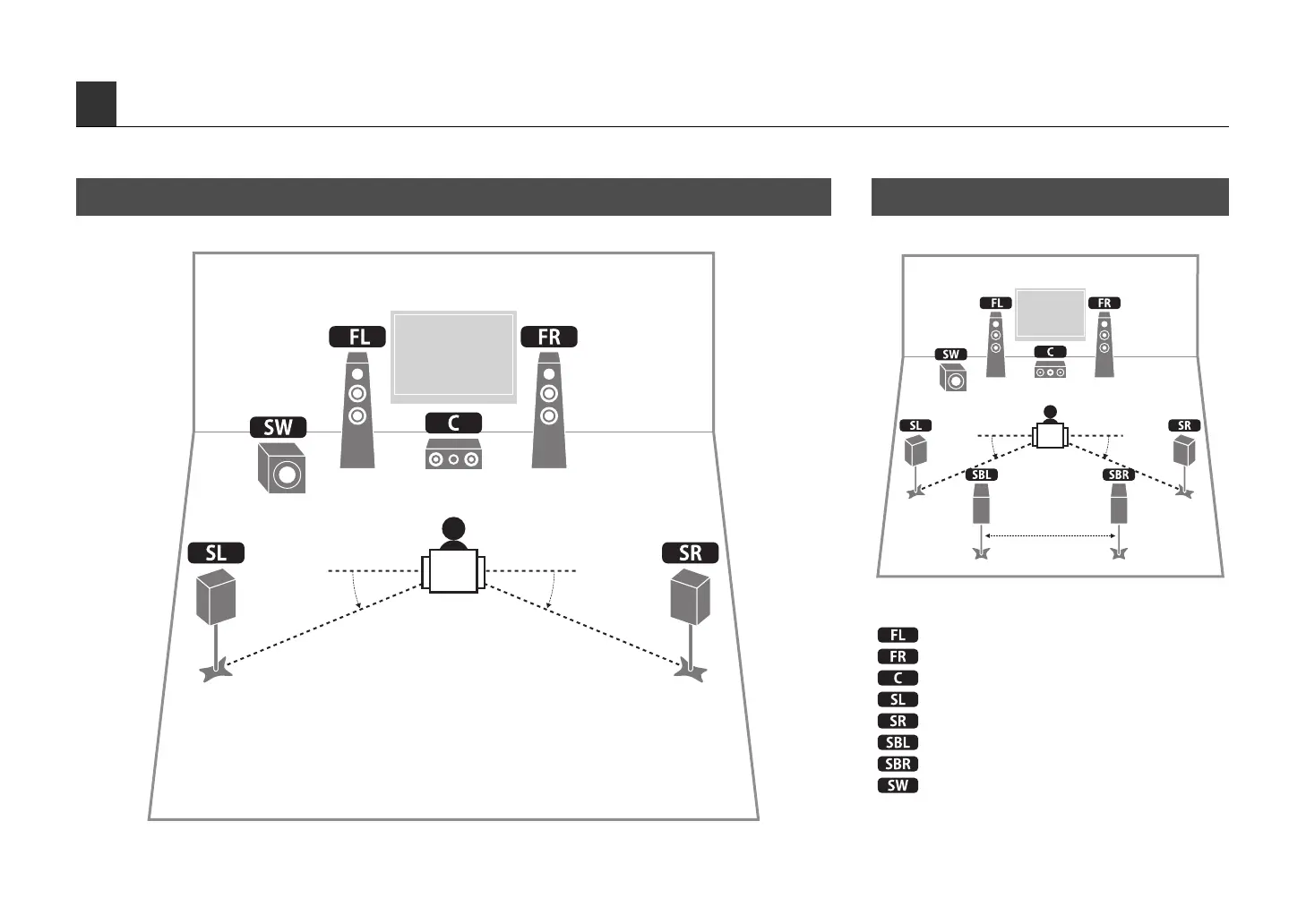

2 Placing the speakers
5.1-channel system
10°~30°10°~30°
7.1-channel system
Front speaker (L)
Front speaker (R)
Center speaker
Surround speaker (L)
Surround speaker (R)
Surround back speaker (L)
Surround back speaker (R)
Subwoofer
30 cm (1 ft) or more
10°~30°10°~30°

Yamaha RX-A1010 Specifications

General

RMS rated power	1190 W
Audio output channels	7.2 channels
Dynamic power per channel (8 Ohm)	135 W
Power output per channel (1KHz@8 Ohm)	165 W
Power output per channel (20-20KHz@8 Ohm)	110 W
HDMI in	8
Composite video in	5
Digital audio coaxial in	3
Component video (YPbPr/YCbCr) in	4
Number of HDMI outputs	2
Component video (YPbPr/YCbCr) out	1
Speakers connectivity type	-
Ethernet LAN	No
Supported radio bands	AM, FM
Product color	Titanium
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	Not supported
Power consumption (standby)	0.3 W

Weight and Dimensions

Depth	432 mm
Width	435 mm
Height	182 mm
Weight	15100 g
