CONNECTIONS
Connecting external components
En 22

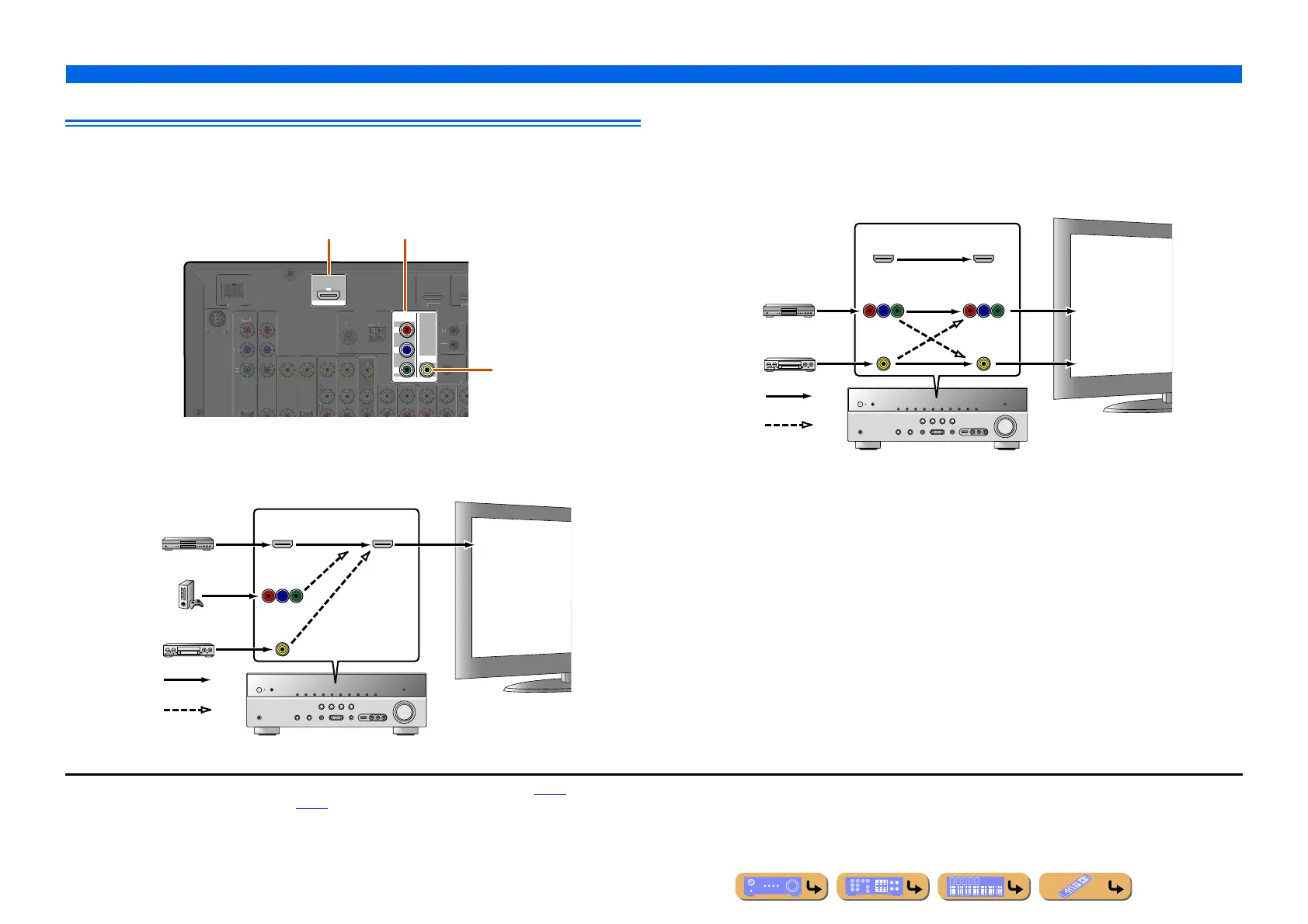

Connecting a TV monitor
This unit is equipped with the following three types of output jack for connection to a TV.
HDMI OUT, COMPONENT VIDEO or VIDEO. Select the proper connection according to the input
signal format supported by your TV.
When connecting to an HDMI compatible TV
Video signal such as component video and video received by this unit is converted to HDMI and output to
the TV. Just select HDMI input on the TV to view video from any external source connected to this unit. J1
When connecting to a non-HDMI compatible TV
Connect to the TV using the same type of connection that you used to connect to the external
component, and change the inputs on your TV to match that of the external component you are using
for playback. If the external component and TV are equipped with different types of analog video
jacks, this unit will convert the video signal to component video signal, or vice-versa, according to the
type of video input jacks used by the TV. J2, J3
HDMI
OUT
ARC
COMPONENT
VIDEO
VIDEO
MONITOR OUT
P R
P B
Y
D
OCK
V
IDE
O
HDMI
1
(
BD
/
DVD
)
HDM
C
OMPONENT
V
IDE
O
P
R
P
B
Y
TRIGGER OUT
+12V
0
.1
A
MAX.
IN
REM
O
TE
O
U
T
S
IRI
US
ANTENNA
FM
G
N
D
AM
75
HDMI OUT jack
COMPONENT VIDEO jacks
(MONITOR OUT)
VIDEO jack
(MONITOR OUT)
HDMI
COMPONENT
VIDEO
HDMI
VIDEO
Input Output
HDMI input
Through
Converted
TV
COMPONENT
VIDEO
HDMI
VIDEO
COMPONENT
VIDEO
HDMI
VIDEO
Input Output
Video input
Through
Component
video input
TV
Converted
J
1 : You can change the resolution and aspect ratio when converting to HDMI to suit your requirements (☞p. 90).
J
2 : Set “Analog to Analog Conversion” to “On” (☞p. 89).
J
3 : Analog to analog conversion is available only for 480i/576i-resolution video signal.
