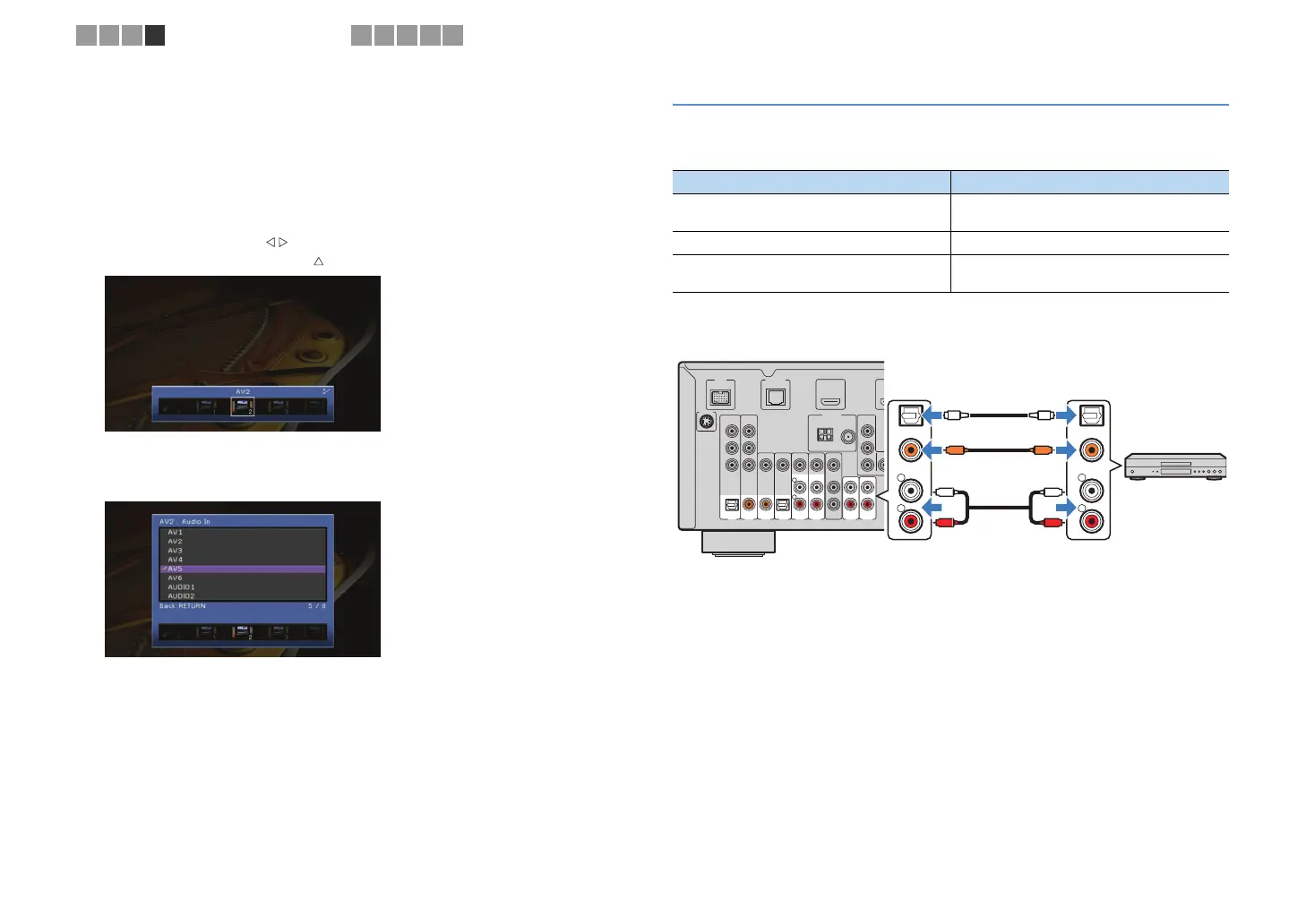

No. Main menu No. Sub-menu
C3 HDMI INFORMATION 1 HDMI MODEL NAME
2 HDMI ID
V: Video system
V1 ANALOG VIDEO CHECK
1 ANALOG BYPASS
2 DIGITAL BYPASS
3 INVALID ITEM
(Not for service)
4 MUTE CHECK
5 TEST PATTERN
6 VIDEO IN
V2 DIGITAL VIDEO CHECK 1 LOOPBACK TEST 1
2 LOOPBACK TEST 2
3 INVALID ITEM
(Not for service)
4 HDMI REPEAT
5 DIGITAL CVBS
6 DIGITAL Y/C (B, G, F models)
7 DIGITAL COMPONENT
8 DIGITAL COMPONENT SC
9 GUI-VIDEO OUT
V3 TEST PATTERN 1 480i
2 480p
3 720p 60Hz
4 1080i 60Hz
5 1080p 60Hz
6 576i
7 576p
8 720p 50Hz
9 1080i 50Hz
10 1080p 50Hz
11 1080p 24bit
12 1080p 24bit 3D/FP
13 720p 60Hz 3D/FP
14 720p 50Hz 3D/FP
15 1080i 60Hz 3D/SS
16 1080i 50Hz 3D/SS
17 720p 60Hz 3D/TB
18 720p 50Hz 3D/TB
19 1080p 24bit 3D/TB
P: Power and protection system
P1 SYSTEM MONITOR 1 DC
2 PS1/PS2
3TM
4 INVALID ITEM
(Not for service)
5 OUTPUT LEVEL
6 LIMITER CONTROL
7 L3 (J model)
(Not for service)
8 KEY1/KEY2
P2 PROTECTION HISTORY 1 HISTORY 1
2 HISTORY 2
3 HISTORY 3
4 HISTORY 4
