Connecting to the jacks on the front panel

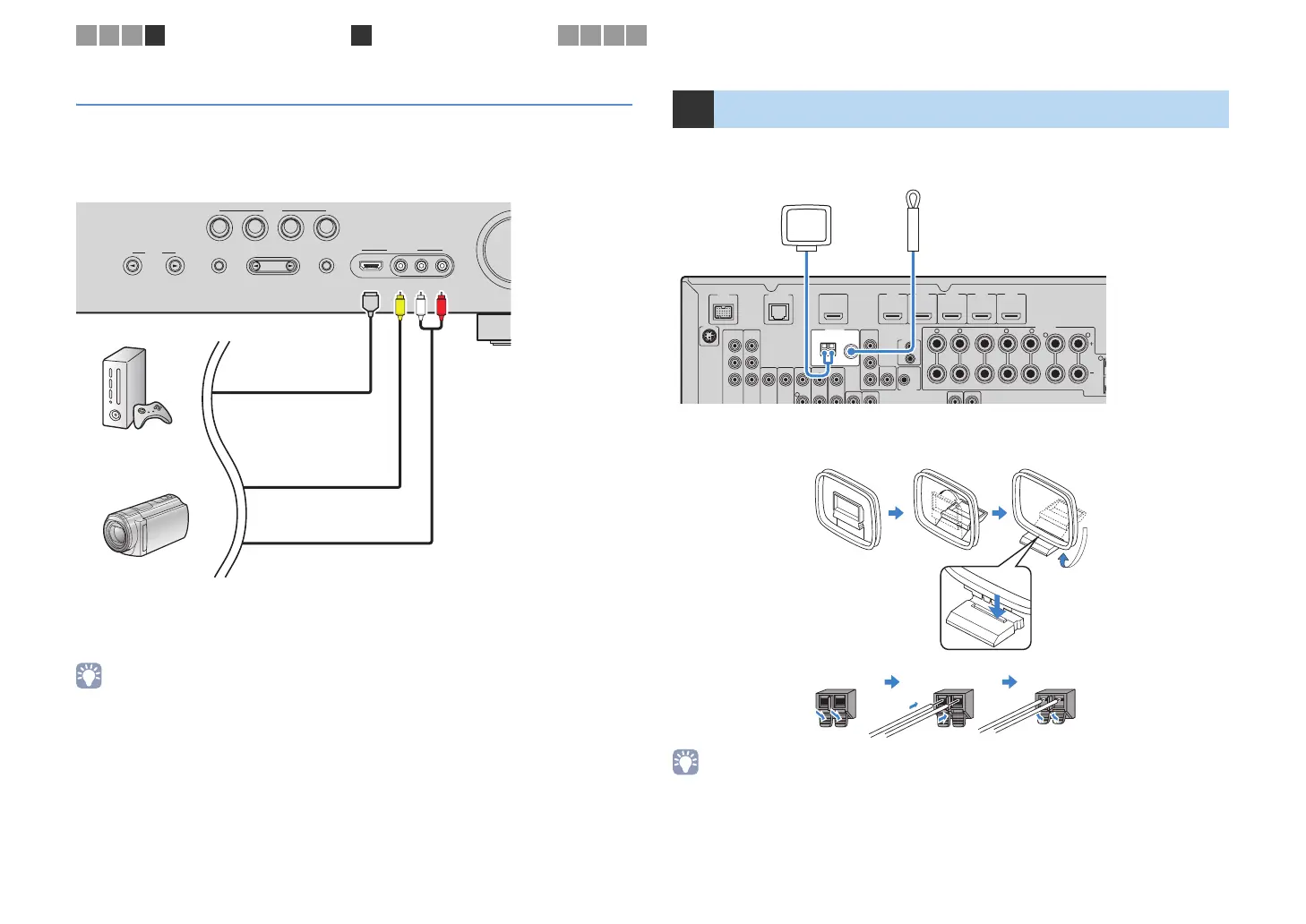

Use the VIDEO AUX jacks on the front panel to temporarily connect devices such as a
game console and a camcorder to this unit.
Before making a connection, stop playback on the device and turn down the volume of
this unit.
If you select “V-AUX” as the input source by pressing V-AUX, the video/audio played
back on the device will be output from this unit.
• If you connect video devices to both the HDMI IN jack and VIDEO/AUDIO jacks, this unit outputs video/
audio input through the HDMI IN jack.
• To protect against dust, attach the supplied VIDEO AUX input cover when the VIDEO AUX jacks are not in
use.
Connect the supplied FM/AM antennas to this unit.
Assembling and connecting the AM antenna
• Unwind the antenna cable from the AM antenna unit only the length needed.
• The wires of the AM antenna have no polarity.
