Yamaha RX-E100 - Nx-E100

ABCDE
1
2
3
4
5
6
7
RX-E100
Ref.
No. PART NO. Description Remarks Markets
New Parts
*
* 1 AAX07740 CABINET ASS’Y AA13000901
* 2 XW275A00 SPEAKER 2.5cm XR02502701
* 3 XW276A00 SPEAKER 13cm CR13005301
* 4 AAX07790 FRONT GRILLE ASS’Y AA13001001
4-1 V2192200 EMBLEM 5900015501
* 5 AAX07800 HOLDER 5600003101
6 EM030180 FLAT HEAD TAPPING SCREW 3.5x20 MFZN2-BL 7002792002
* 7 AAX07770 TAPPING SCREW 7010542502
* 8 AAX07780 NETWORK ASS’Y 6700007401
* 8-1 AAX07750 CAPACITOR 8.2uF 100V 4300014801
* 8-2 AAX07760 CAPACITOR 3.3uF 100V 4300014901
* 8-3 AAX07810 RESISTOR 2.7Ω 5W 4120000101
ACCESSORIES
* AAX07730 SPEAKER CODE ASS’Y 4.0m x2 6200038201

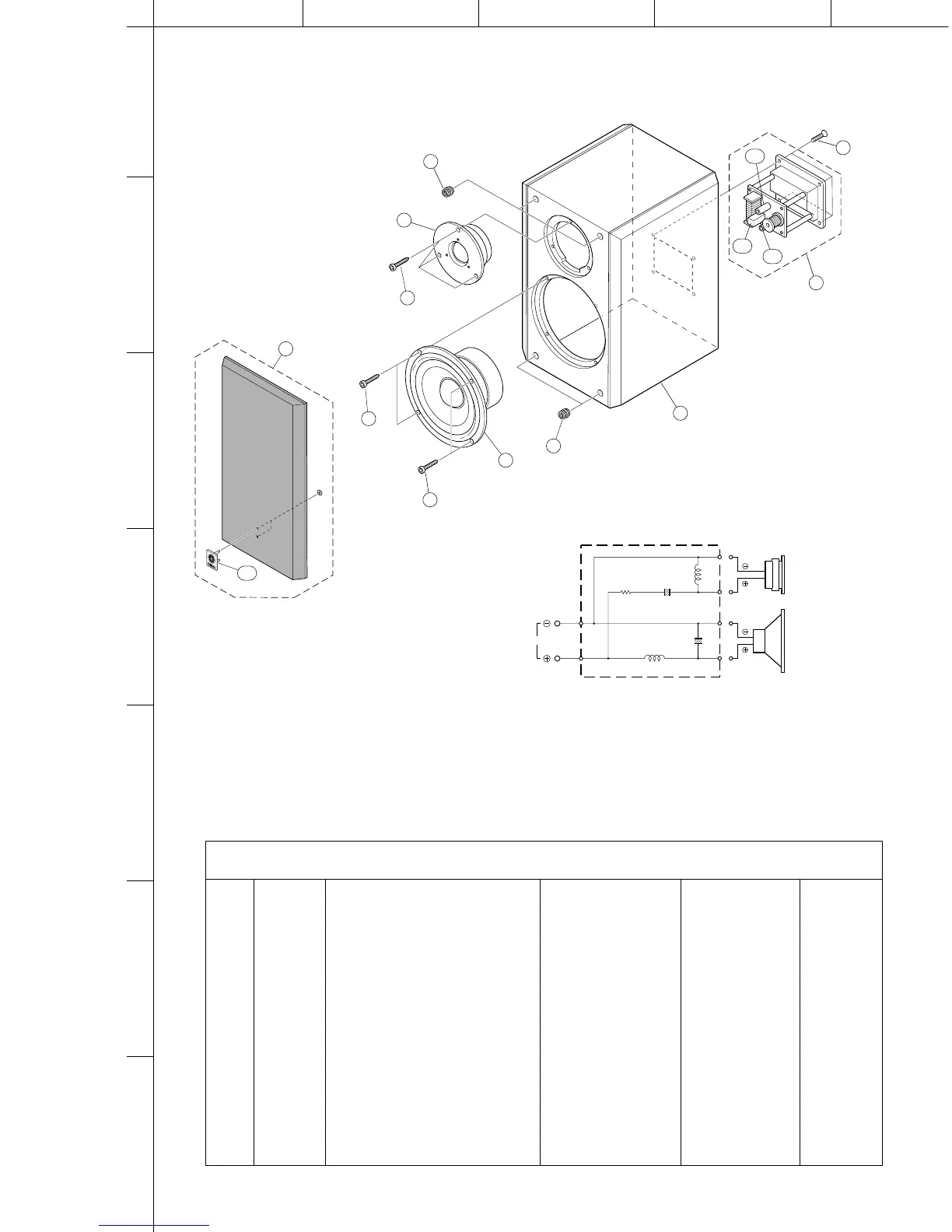

NX-E100
2
5
1
8
6
5
3
7
7
7
4-1
8-2
8-3
8-1
4
TWEETER
(XW275A00)
WOOFER
(XW276A00)
R1
2.7Ω/5W
L1
1.0mH
L2
0.27mH
C2
3.3µF/100V
C1
8.2µF/100V
INPUT
