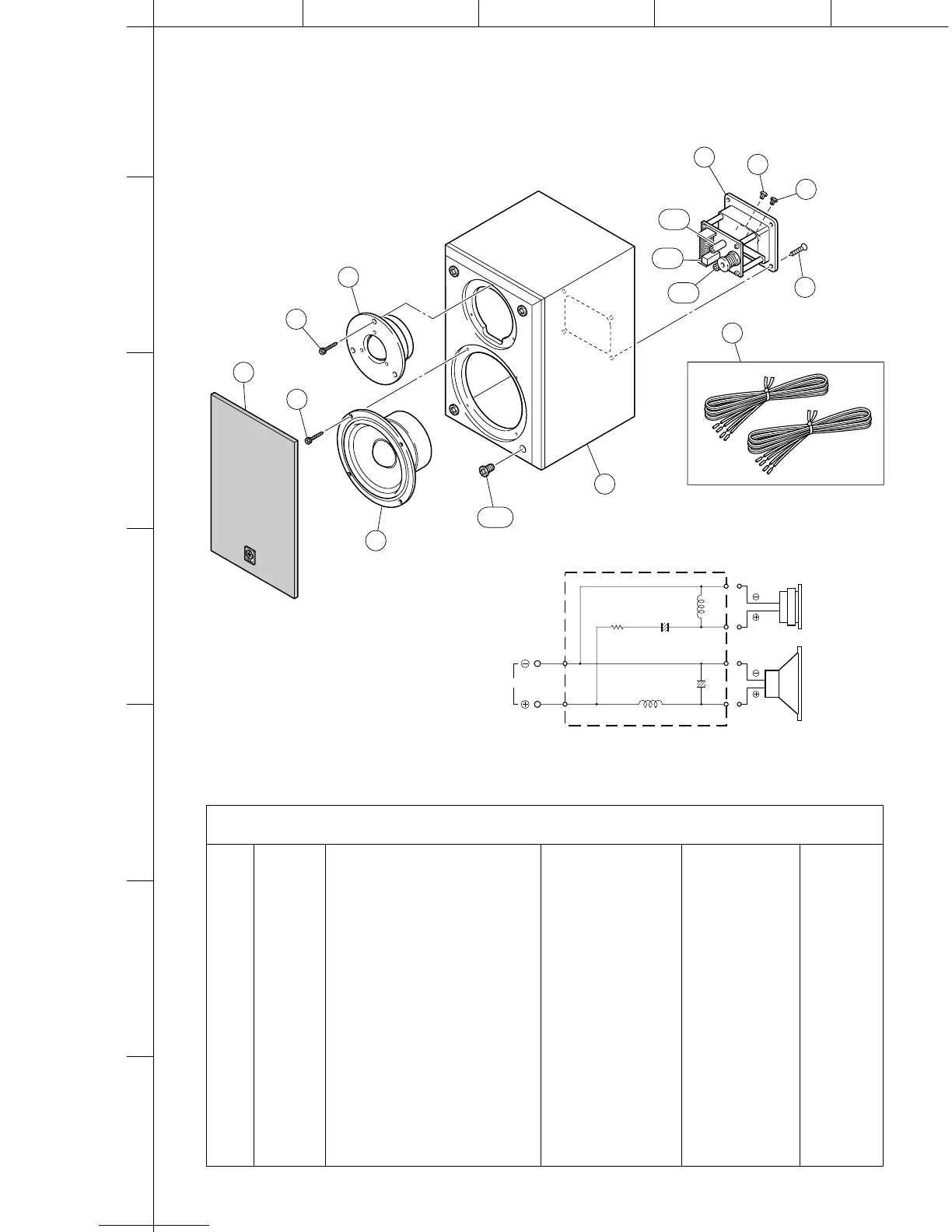

Yamaha RX-E400 - Nx-E400

ABCDE
1
2
3
4
5
6
7
RX-E400
39
Ref.
No. PART NO. Description Remarks Markets
New Parts
*
NX-E400
22
21
7-1
7-2
1-12
7-3
12
7
1
13
22
2
3
4
TWEETER
(XW275A00)
WOOFER
(XW276A00)
R1
2.7 /5W
L1
1.0mH
L2
0.27mH
C2
3.3 F/63V
C1
8.2 F/63V
INPUT
30
x
2
* 1 V9509300 CABINETASS'Y BL
1‑12 CB605250 HOLDER
* 2 V9509700 FRONTGRILLEASS'Y BL
3 XW275A00 DRIVERTWEETER 2.5cm5Ω40W
4 XW276A00 DRIVERWOOFER 13cm6Ω40W
* 7 V9509800 NETWORKASS'Y
7‑1 V6055400 ELECTROLYTICCAP 8.2uF63V
7‑2 V6367500 ELECTROLYTICCAP 3.3uF63V
* 7‑3 V9507500 CEMENTRESISTOR 2.7Ω5W
12 V5361400 TERMINALCAP S06ERED
13 V5361500 TERMINALCAP S06EBLACK
* 21 V9506000 FLATHEADWOODSCREW 3.5x20MFZN2BL
* 22 V9506100 HEXAGONHEADWOODSCREW 4x25MFZN2BL
ACCESSORIES
* 30 V9826900 SPEAKERCABLE 4m1pc
