RX-E400
6
RX-E400
1. Removal of Top Cover
a. Remove 4 screws ( q ) and 4 screws
( w
)
in Fig. 1.
b. Lift the Top Cover at the rear and move it rear-ward slantingly.
2. Removal of Front Panel
a. Disconnect 4 connectors (CB251, CB253, CB210, CB406) in Fig. 2.
b. Remove 2 screws ( e ), 3 screws
( r
)
and 1 plastic rivet (
t
) in Fig. 1.
c.
Release 2 hooks and remove the Front Panel Unit by pulling it forward.
■ DISASSEMBLY PROCEDURES (Remove parts in disassembly order as numbered.)

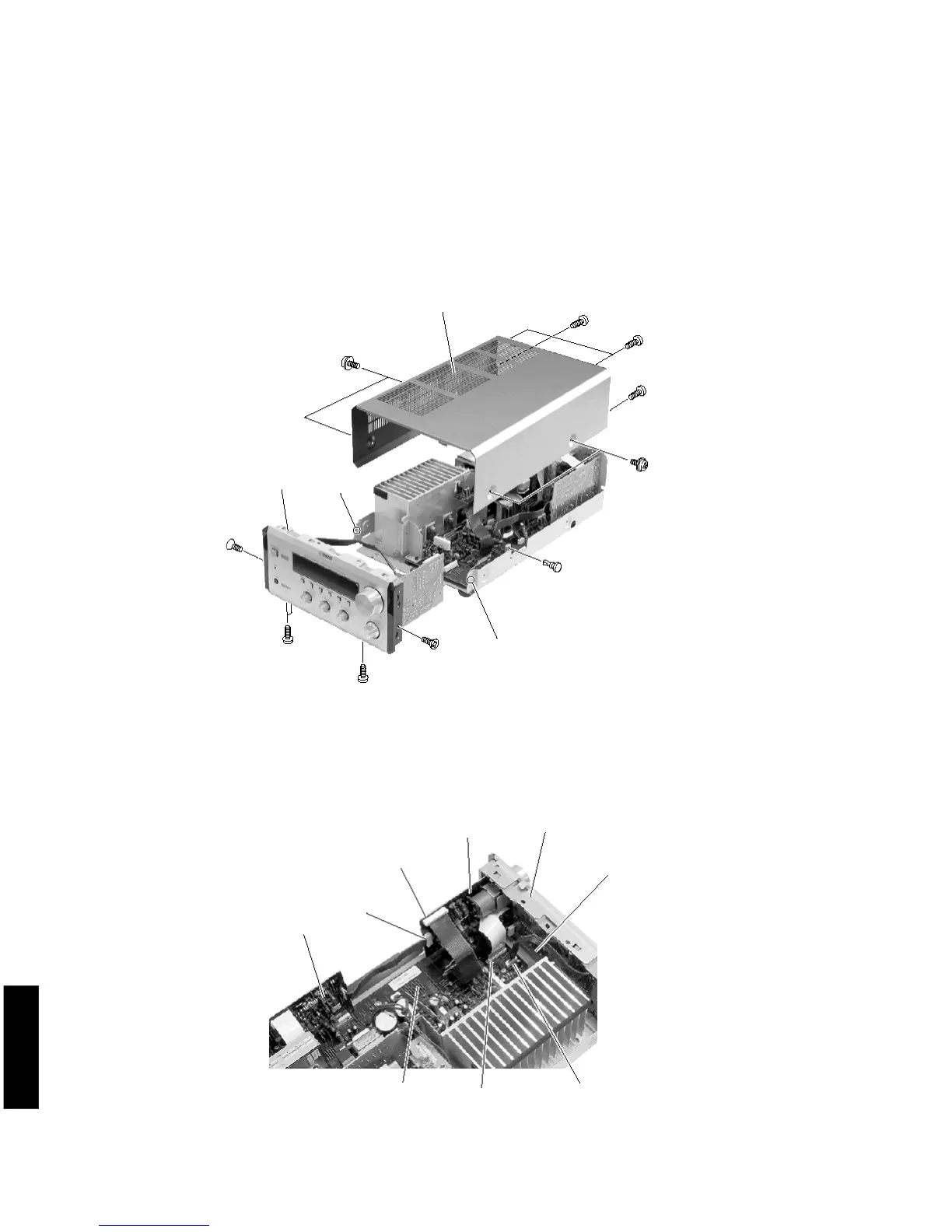

Fig. 1
q
w
w
Fig. 2
q
Top Cover
w
Front Panel Unit
Hook
e
r
Hook
e
r
Operation P.C.B.
Front Panel Unit
Main (3) P.C.B.
Main (2) P.C.B.
CB210
CB406
CB253
CB251
Main (1) P.C.B.
t
To Next Page
