■ TEST MODE
STANDBY/ON Key is pushed while pushing DISPLAY Key and AUTO/MAN'L Key.
TEST MODE indication.
PRESET/TUNING B Key
Test mode number
up.
PRESET/TUNING N Key
Test mode number
down.
PRESET/BAND Key
Execute test mode.
STANDBY/ON Key
POWER OFF
The completion
of test mode.
POWER Off condition
TEST MODE UP
TEST MODE DOWN
When present mode is
carried out.
Test mode is
finished.
DISPLAY
FUNCTION
PRESET/BAND Key
01 DEST-B,G
02 FL+CLEAR
DESTINATION R (AM9k/FM:50k) R (AM10k/FM100k) A B,G U,C
Display R9k R10k A B, G U, C
(*1)
03 FL CHECK
04 Ver-A1.10
05 SUM[Caa2]
04'99.05.28

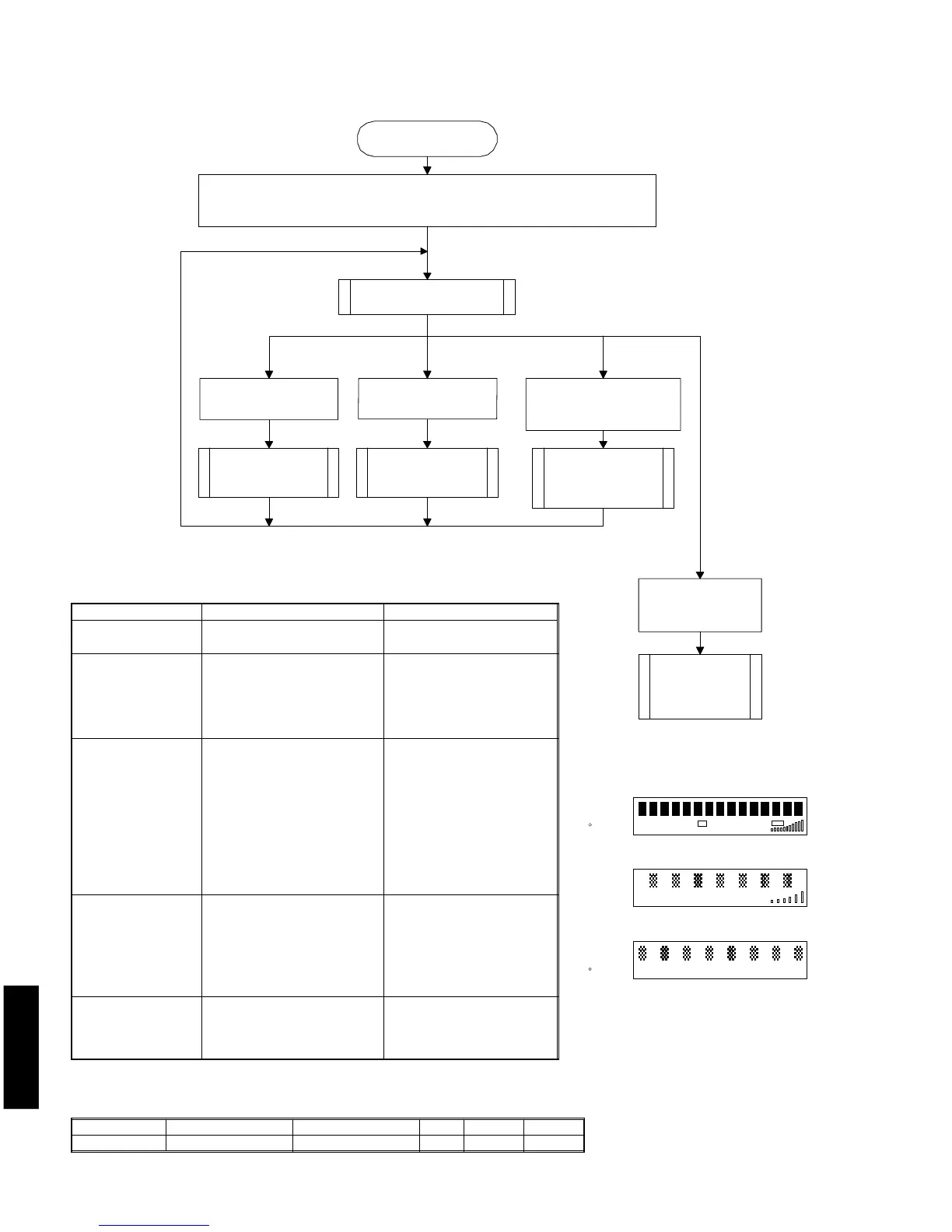

TEST PROGRAM MODE FUNCTION DESCRIPTION
Indication for destinaion. (*1)
All FL segments and BACKUP
RAM CLEAR.
All FL segments and circuit
board short circuit inspection.
Version information of the
microcomputer software. (*2)
The date of the microcomputer
software. (*2)
The calculation of SUM is done and
indicated after that. (*2)
1st : all segments light
2nd : RAM CLEAR
1st : all segments light
2nd : Even-numbered
segments and even
numbered digits are
turned on.
3rd : Odd -numbered
segments and odd-
numbered digits are
turned on.
It is changed to the date
indication.
It is changed to version
indication.
Re-calculation
(*2) Contents of indication change by the microcomputer software.
(Note that memories set by the user
will be erased.)
Also, the preset contents of the
tuner are restored to the factory
preset ones.
PRESET
EDIT
VOLUME
RDS PS PTY RT CT
PTY HOLD
STEREO AUTO TIMER
SLEEPTUNED MEMORY
TIMER
EDIT
VOLUME
RDS PTY CTSTEREO AUTO TIMER
PRESET
PS RT
PTY HOLD SLEEPTUNED MEMORY
TIMER
PRESET
EDIT
VOLUME
RDS PS PTY RT CT
PTY HOLD
STEREO AUTO TIMER
SLEEPTUNED MEMORY
TIMER
FL CHECK
1st
2nd
3rd
