FEATURES ➤ Part names and functions En 10

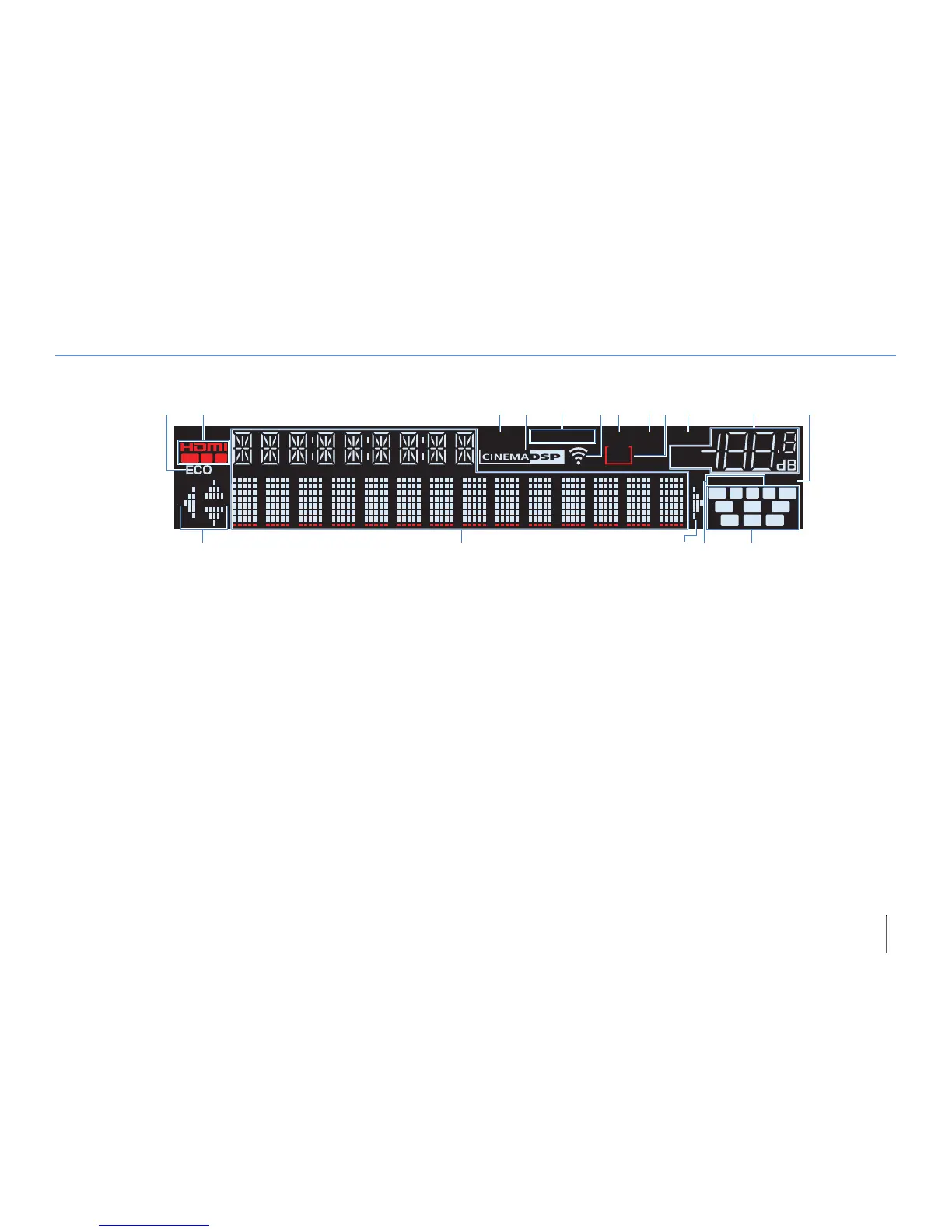

Front display (indicators)
1 ECO
Lights up when the unit is in the eco mode (p.113).
2 HDMI
Lights up when HDMI signals are being input or output.
OUT1/OUT2 (RX-V777 only)
Indicates the HDMI OUT jacks currently outputting an HDMI
signal
OUT (RX-V677 only)
Lights up when HDMI signals are being output.
3 ENHANCER
Lights up when Compressed Music Enhancer (p.57) is
working.
4 CINEMA DSP
Lights up when CINEMA DSP or CINEMA DSP 3D (p.53) is
working.
5 STEREO
Lights up when the unit is receiving a stereo FM radio signal.
TUNED
Lights up when the unit is receiving an FM/AM radio station
signal.
6 Signal strength indicator
Indicates the strength of the wireless network signal (p.42).
7 PARTY (RX-V777 only)
Lights up when the unit is in the party mode. (p.82)
8 SLEEP
Lights up when the sleep timer is on.
9 ZONE2
Lights up when audio output to Zone2 is enabled (p.81).
0 MUTE
Blinks when audio is muted.
A Volume indicator
Indicates the current volume.
B VIRTUAL
Lights up when the Virtual Presence Speaker (VPS) (p.53) or
the virtual surround processing (p.55) is working.
C Cursor indicators
Indicate the remote control cursor keys currently operational.
D Information display
Displays the current status (such as input name and sound
mode name). You can switch the information by pressing
INFO (p.86).
E ADAPTIVE DRC
Lights up when Adaptive DRC (p.88) is working.
F Speaker indicators
Indicate speaker terminals from which signals are output.
A Front speaker (L)
S Front speaker (R)
D Center speaker
F Surround speaker (L)
G Surround speaker (R)
H Surround back speaker (L)
J Surround back speaker (R)
K Surround back speaker
B Presence speaker (L)
N Presence speaker (R)
L Subwoofer
