Yamaha S80 - Circuit Board and Component Removal

S80
9
[220]
[82]
[31] [30]
[31]
[22]
POWER SUPPLY
[96][130]
[81]
PLG Angle
Display assembly
[92]
Display assembly
JK
SV
[22]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)
[30]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)
[31]: Bonding Tapping Screw-B 3.0X10 MFZN2BL (VQ049800)
[81]: Bonding Tapping Screw-B 3.0X10 MFZN2BL (VQ049800)
[82]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)
[92]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)
[96]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)
[130]: Bind Head Tapping Screw-B 3.0X6 MFZN2BL (EP600230)

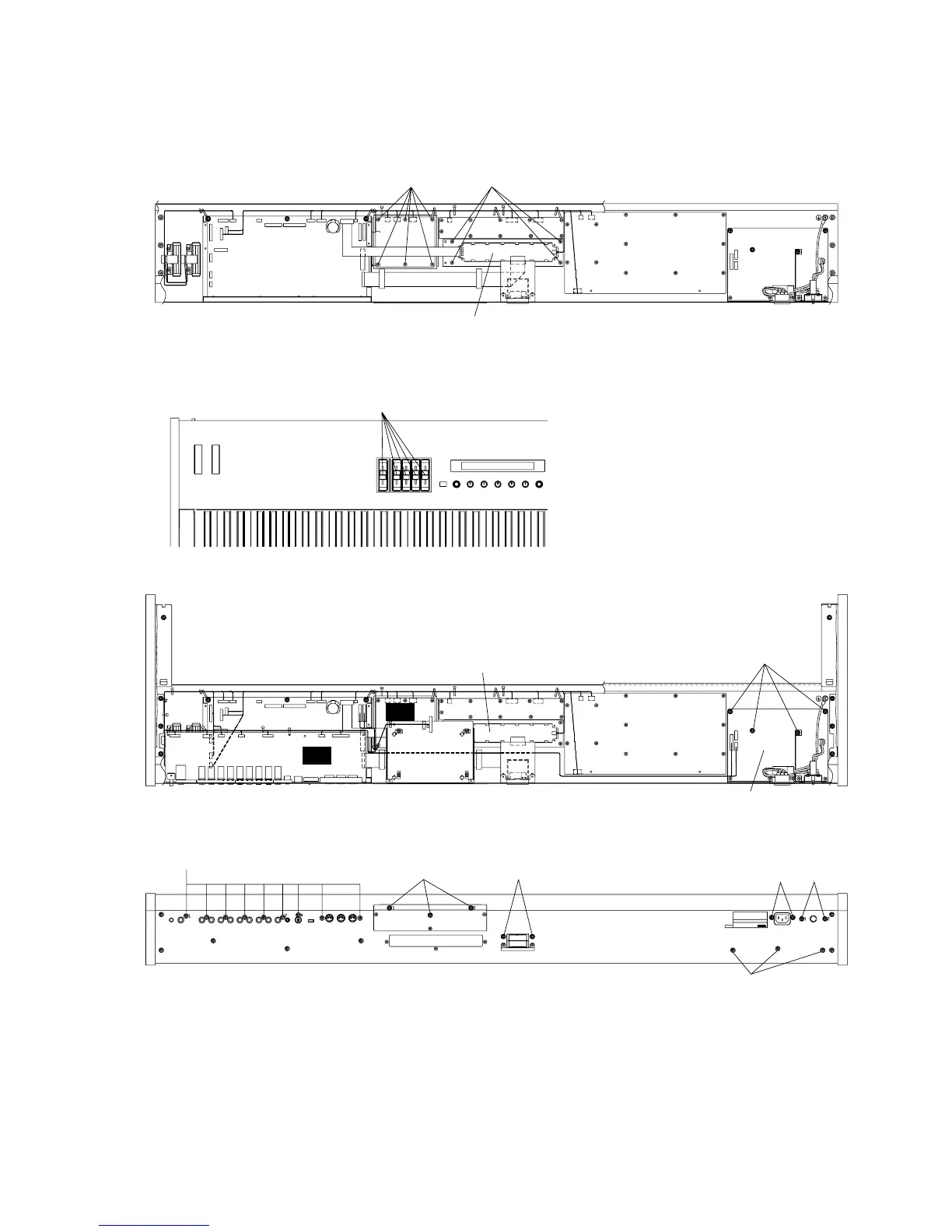

Fig.3
〈
BOTTOM VIEW1
〉
〈
TOP VIEW
〉
〈
BOTTOM VIEW2
〉
〈
REAR VIEW
〉
