4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
5. Install the oil filler cap.
To change the engine oil (with or
without oil filter element replace-
ment)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the oil filter element cover
bleed bolt and its gasket, and the
oil filter element drain bolt to drain
the oil from the oil filter element
chamber.
4. Remove the engine oil drain bolt
and its gasket to drain the oil from
the crankcase.
5. Remove the engine oil filler cap,
the engine oil tank drain bolt and
its gasket to drain the oil from the
oil tank.

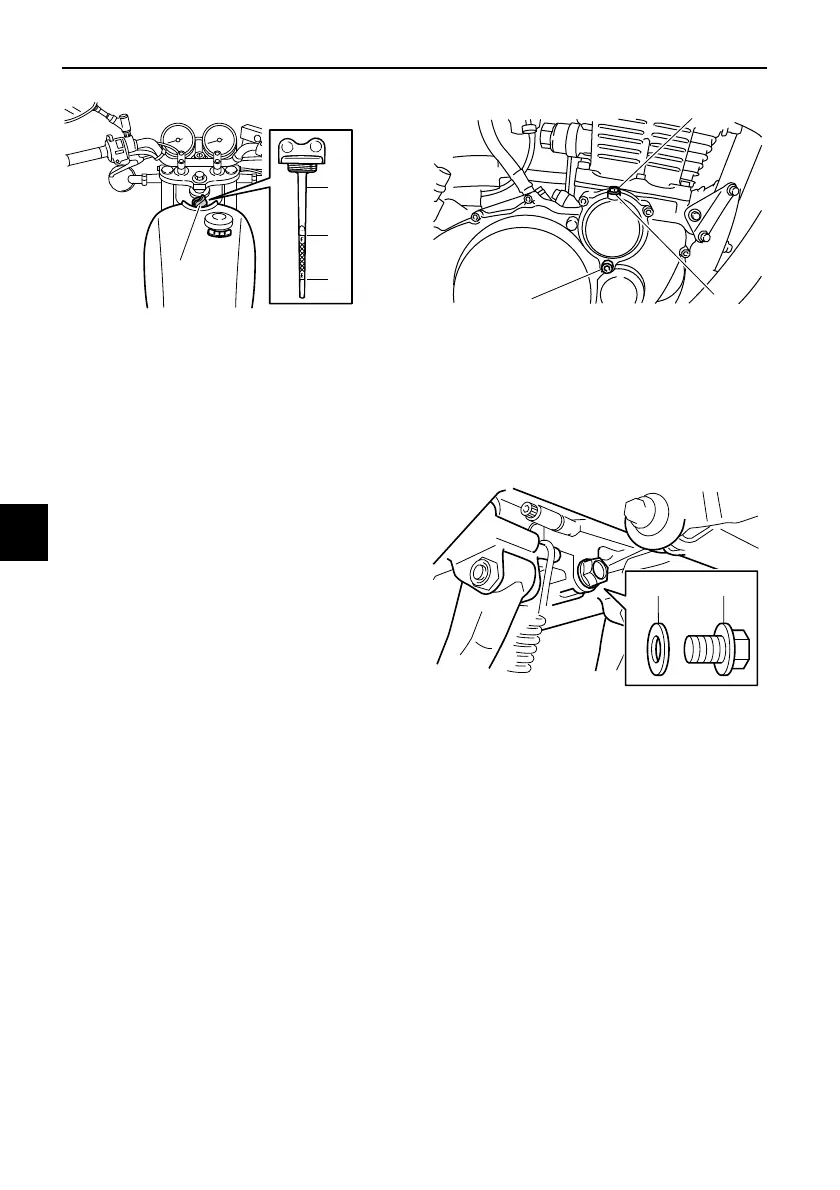

1. Engine oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
1. Oil filter element cover bleed bolt
2. Gasket
3. Oil filter element drain bolt
1. Gasket
2. Engine oil drain bolt (crankcase)
