Yamaha T135SE User Manual

4-8
ENG
CYLINDER HEAD
3
8
2
6
5
7
9
0
1
10 Nm (1.0 m•kg, 7.2 ft•lb )
10 Nm (1.0 m•kg, 7.2 ft•lb )
10 Nm (1.0 m•kg, 7.2 ft•lb )
10 Nm (1.0 m•kg, 7.2 ft•lb )
13 Nm (1.3 m•kg, 9.5 ft•lb )
22 Nm (2.2 m•kg, 16 ft•lb )
30 Nm (3.0 m•kg, 22 ft•lb )
10 Nm (1.0 m•kg,7.2 ft•lb )
LS
E
E
EASF0023

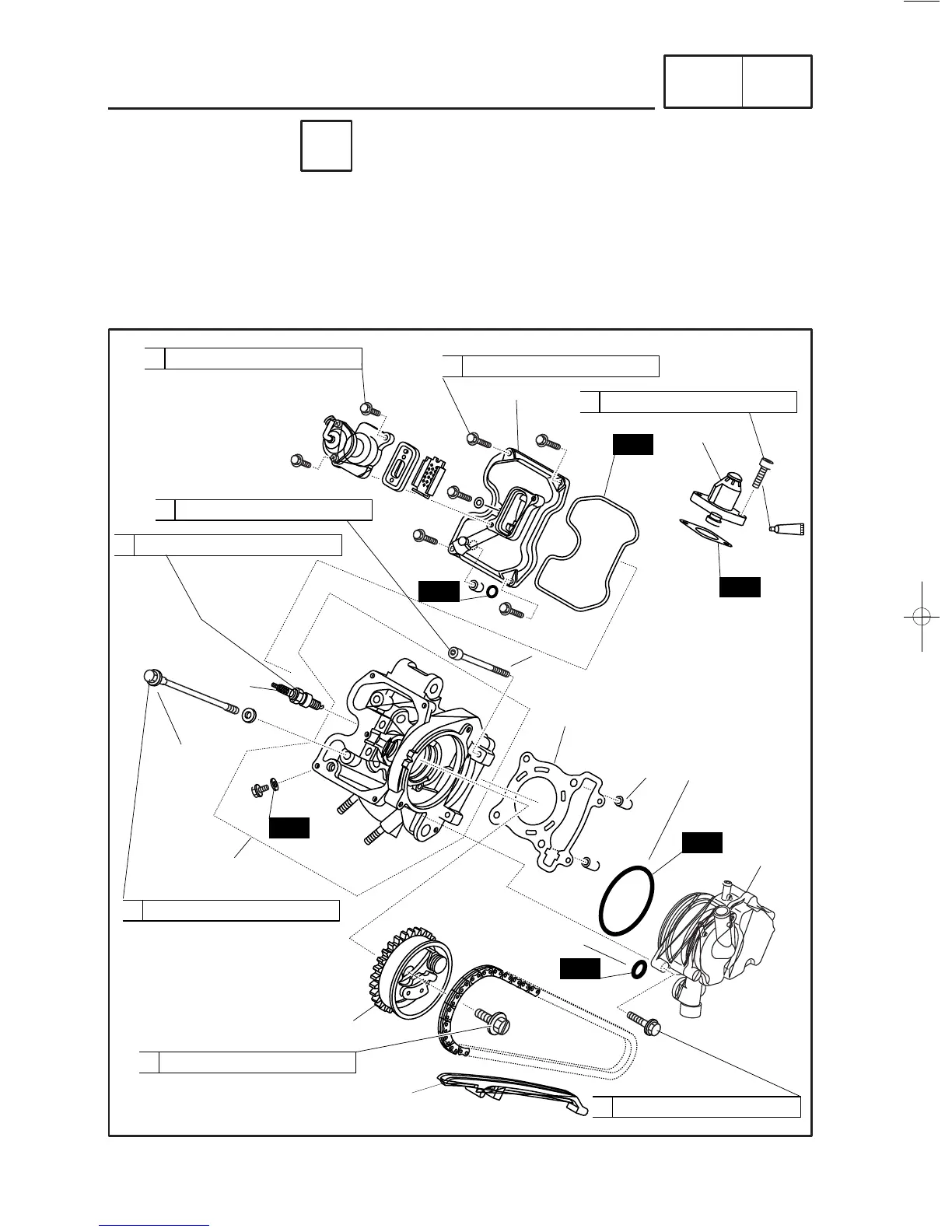

CYLINDER HEAD
1
Water pump
2
Spark plug
3
Cylinder head cover
4
Dowel pin
5
Camshaft sprocket
6
Cylinder head
7
Timing chain guide (exhaust side)
8
Timing chain tensioner
9
Dowel pin
0
Gasket
