CHAS
FRONT BRAKE
7-25
1
2
1
2
1
EAS00588

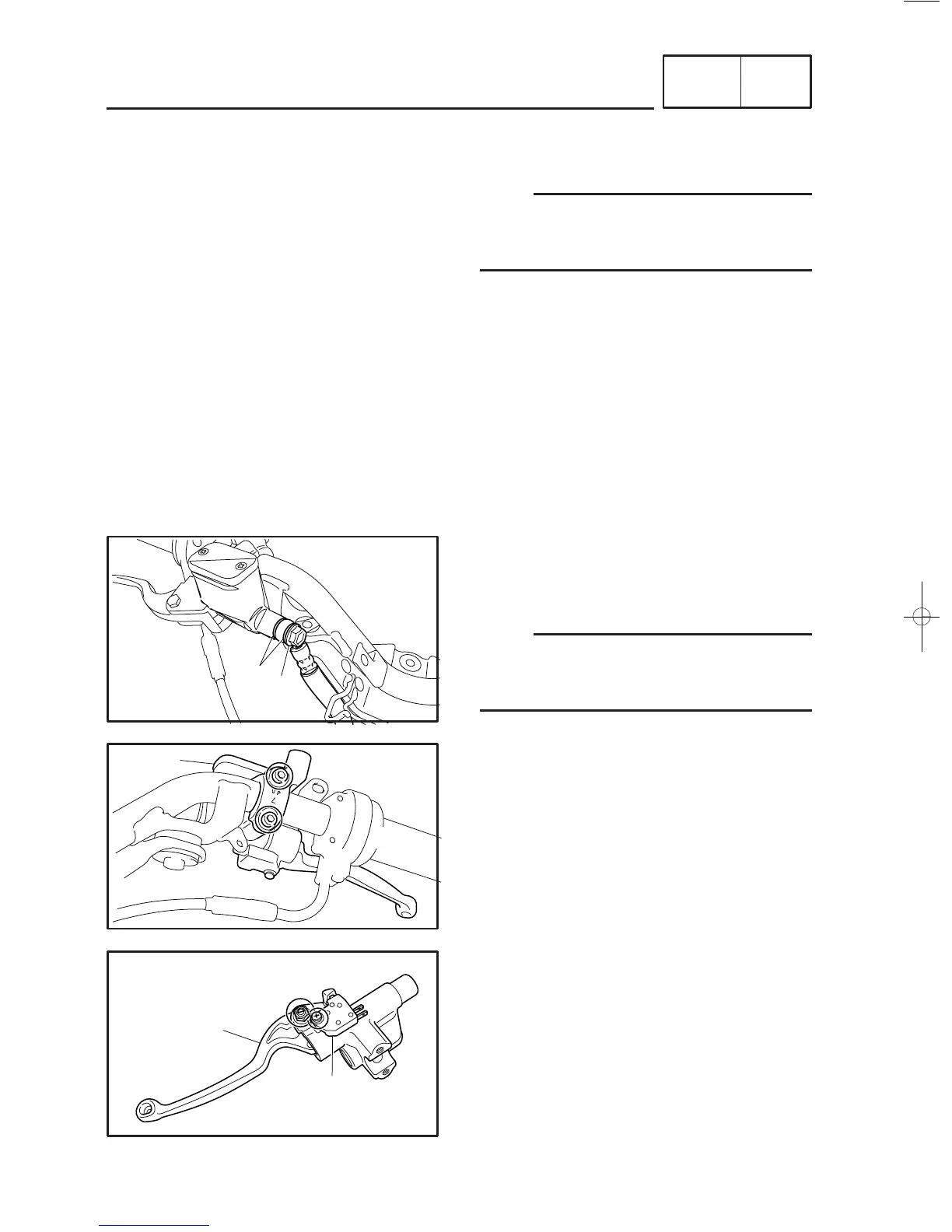

DISASSEMBLING THE FRONT BRAKE
MASTER CYLINDER
NOTE:
Before disassembling the front brake master
cylinder, drain the brake fluid from the entire
brake system.
1. Remove:
9
side cowlings (left and right)
9
front cowling
Refer to “REMOVING THE SIDE COWL-
INGS” and “REMOVING THE FRONT
COWLING” in chapter 3.
9
headlight assembly
Refer to “REMOVING THE HEADLIGHT
ASSEMBLY” in chapter 3.
2. Remove:
9
union bolt
1
9
copper washers
2
9
brake hose
NOTE:
To collect any remaining brake fluid, place a
container under the master cylinder and the end
of the brake hose.
3. Remove:
9
brake master cylinder assembly
1
4. Remove:
9
brake light switch
1
9
brake lever
2
To Next Page
