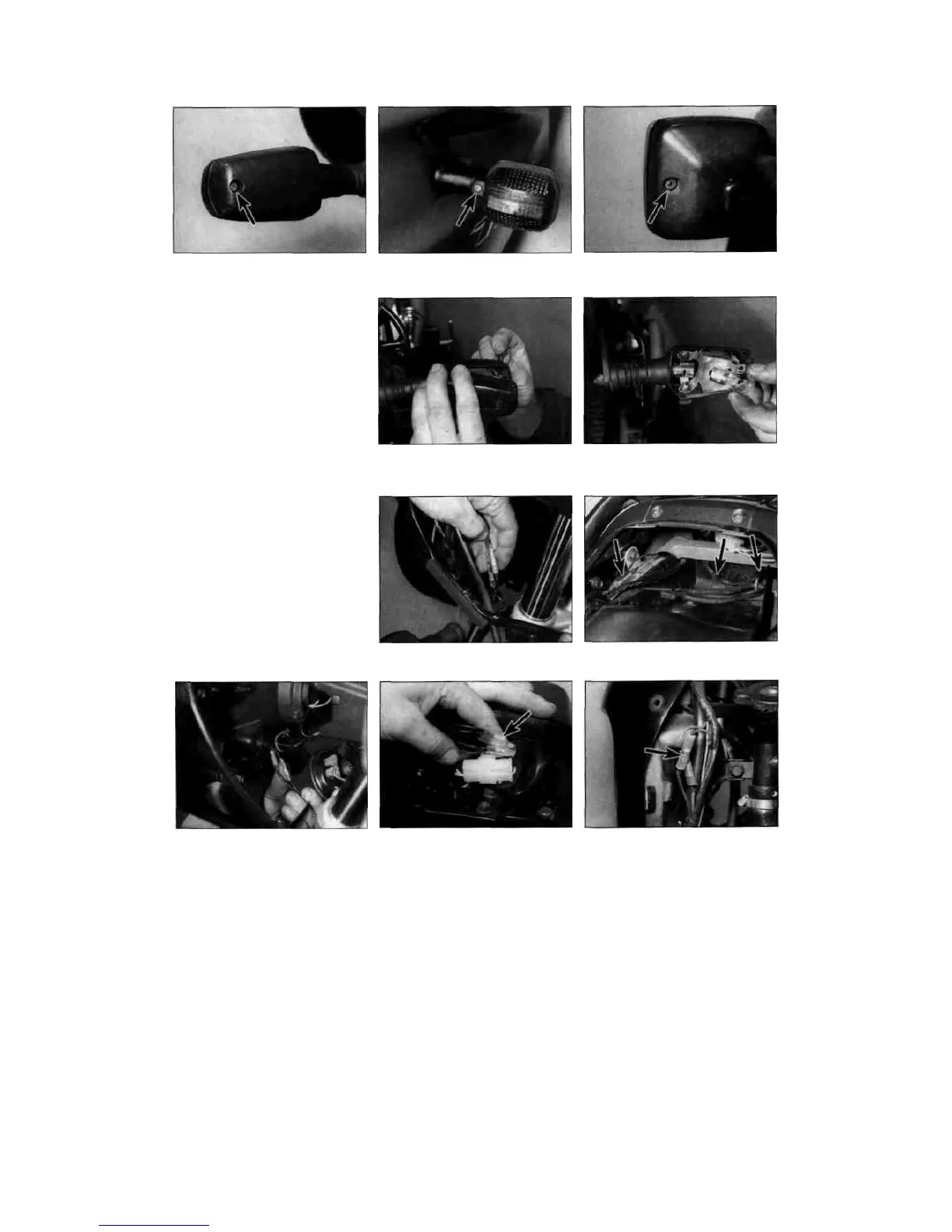

12.1a Turn signal lens screw (arrowed) -
TDM models
12.1b Turn signal lens screw (arrowed) -
TRX models
12.1c Turn signal lens screw (arrowed) -
XTZ models
12 Turn signal bulbs - renewal §$>
I
1 Remove the screw securing the turn signal
lens and remove the lens, noting how it fits
(see illustrations).
2 Push the bulb into the holder and twist it
anti-clockwise to remove it (see illustration).
Check the socket terminals for corrosion and
clean them if necessary. Line up the pins of
the new bulb with the slots in the socket, then
push the bulb in and turn it clockwise until it
locks into place.
3 Fit the lens onto the holder. Do not
overtighten the screw as the lens or threads
could be damaged.
13 Turn signal assemblies - ^
removal and installation |k
Removal
1 Disconnect the turn signal wiring
connectors. On the front turn signals, they are
on the inside of the fairing (see illustrations).
On TDM models remove the fairing, and on
XTZ models the fairing side panel(s) for best
access (see Chapter 8). On the rear turn
signals, remove the seat (see Chapter 8) (see
illustrations).
12.1d Remove the screw and detach the
lens...
13.1a Front turn signal wiring connectors
- TDM models
12.2 ... and remove the
bulb
13.1b Rear turn signal wiring connectors
(arrowed) - TDM models
13.1c Front turn signal wiring connectors -
TRX models
13.1d Rear turn signal wiring connectors -
TRX models
13.le Front turn signal wiring connectors -
XTZ models
