For XT660ZA:
This front fork cannot be adjusted.
EAUB1462
Adjusting the shock
absorber assembly
This shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To
decrease the spring preload and the-
reby soften the suspension, turn the
adjusting ring in direction (b).
TIP
Align the appropriate notch in the
adjusting ring with the position indica-
tor on the shock absorber.

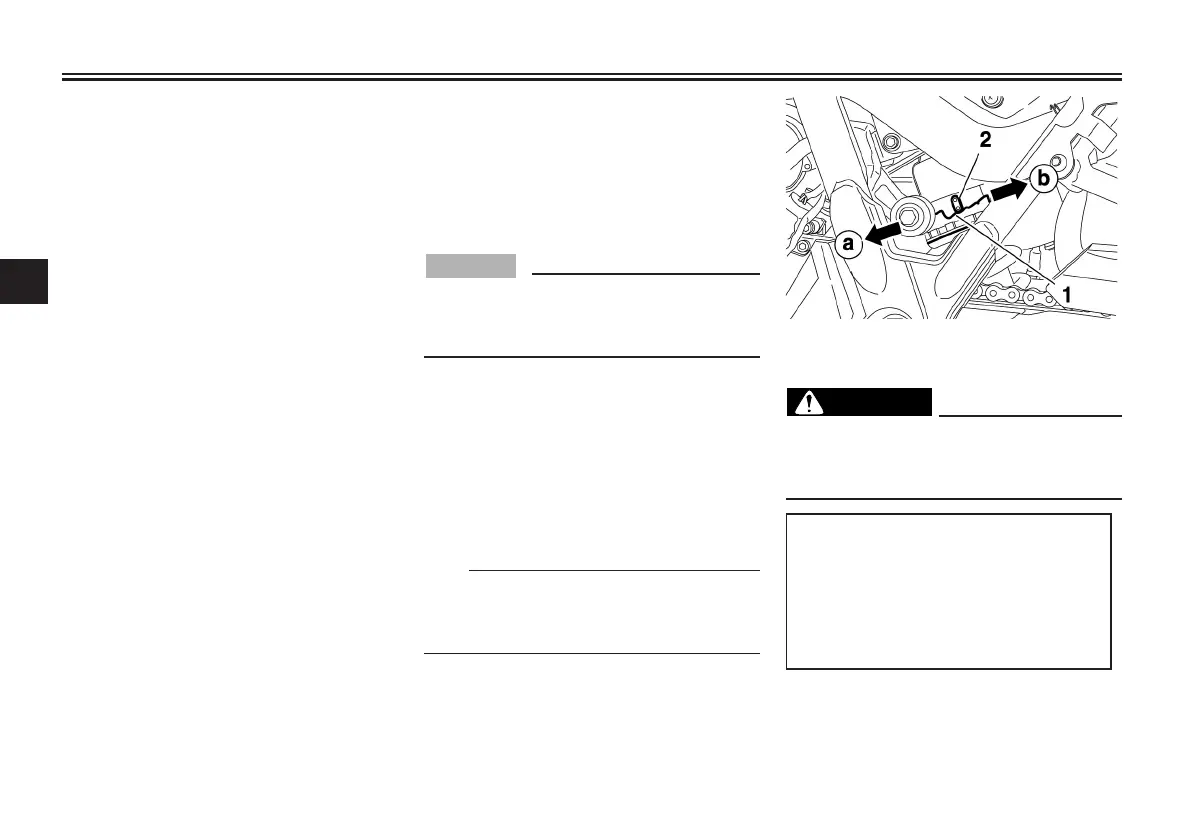

1. Spring preload adjusting ring
2. Position indicator
EWAB0020
Never adjust the spring preload
until the exhaust system has coo-
led down.
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
9
WARNING
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
56P-F8199-E0 30/6/10 09:24 Página 36

Yamaha TENERE XT660Z Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Wet Weight	206 kg
Fuel Tank Capacity	23 liters
Lubrication System	Dry sump
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Wheel Base	1, 505 mm
Minimum Ground Clearance	260 mm
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
Front Suspension	Telescopic fork
Rear Suspension	link suspension
Front Brake	Dual disc
Rear Brake	Single disc
Maximum Power	35.0 kW (48PS) @ 6, 000 rpm
