Changing the coolant
The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant. WARNING! Never attempt
to remove the radiator cap when
the engine is hot. [EWA10381]
EAUB1481
Replacing the air filter
element and cleaning the
check hose
The air filter element should be repla-
ced at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in
unusually wet or dusty areas. In addi-
tion, the air filter check hose must be
frequently checked and cleaned if
necessary.
To replace the air filter element
1. Remove the seat. (See page
3-16).
2. Remove the air filter case cover
by removing the screws.

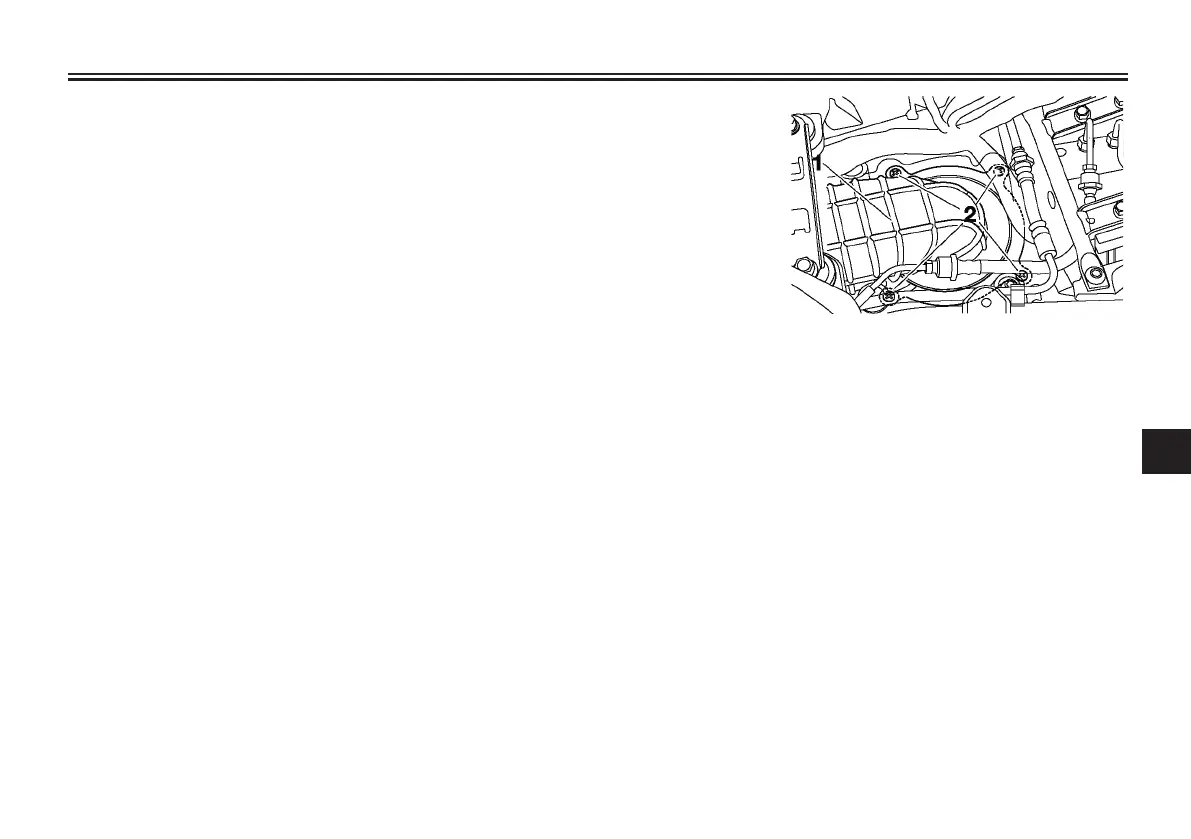

1. Air filter case cover
2. Screw
3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case as shown.
NOTICE: Make sure that the air
filter element is properly sea-
ted in the air filter case. The
engine should never be opera-
ted without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s)
may become excessively worn.
[ECA10481]
PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
56P-F8199-E0 30/6/10 09:24 Página 61

Yamaha TENERE XT660Z Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Wet Weight	206 kg
Fuel Tank Capacity	23 liters
Lubrication System	Dry sump
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Wheel Base	1, 505 mm
Minimum Ground Clearance	260 mm
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
Front Suspension	Telescopic fork
Rear Suspension	link suspension
Front Brake	Dual disc
Rear Brake	Single disc
Maximum Power	35.0 kW (48PS) @ 6, 000 rpm
