Front wheel
EWA14840
For the ABS model, have a Yamaha
dealer remove and install the whe-
el.
EAUB1441
To remove the front wheel
EWA10821
To avoid injury, securely support
the vehicle so there is no danger of
it falling over.

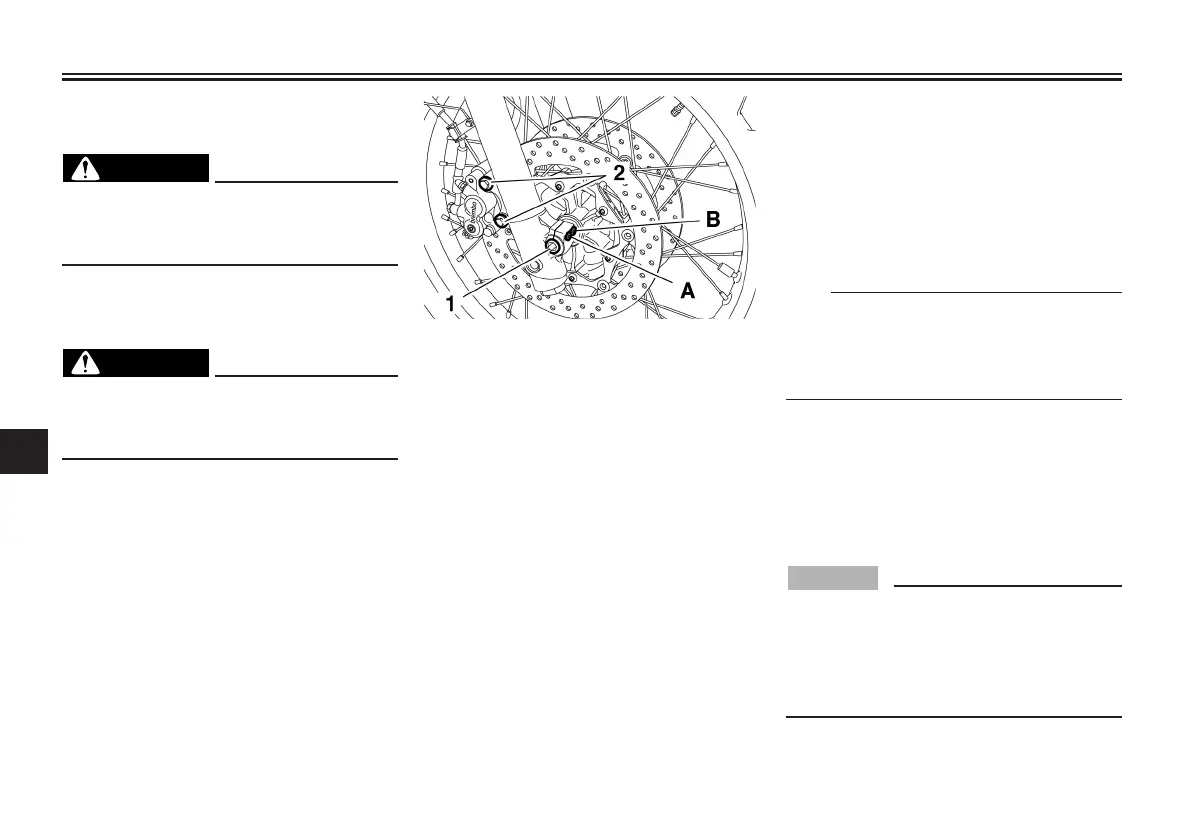

1. Loosen the front wheel axle pinch
bolts, the wheel axle and the bra-
ke caliper bolts.
1. Wheel axle
2. Brake caliper bolt
3. Front wheel axle pinch bolt
4. Front wheel axle pinch bolt
2. Lift the front wheel off the ground
according to the procedure on
page 6-35.
3. Remove the brake caliper on
each side by removing the bolts.
NOTICE: Do not apply the bra-
ke after the brake calipers have
been removed, otherwise the
brake pads will be forced shut.
[ECA11051]
4. Pull the wheel axle out, and then
remove the wheel.
EAUB1472
To install the front wheel
1. Lift the wheel up between the
fork legs.
2. Insert the wheel axle.
3. Install the brake calipers by insta-
lling the bolts.
TIP
Make sure that there is enough space
between the brake pads before insta-
lling the brake calipers onto the brake
discs.
4. Lower the front wheel so that it is
on the ground.
5. Tighten the wheel axle and the
brake caliper bolts to the speci-
fied torques.
ECAB0061
Be sure the right brake disc is posi-
tioned exactly between the brake
pads to prevent any brake drag.
Tap the side of the right fork leg to
position the disc correctly.
6. Tighten wheel axle pinch bolt A,
and then pinch bolt B to their
specified torque.
NOTICE
WARNING
WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
56P-F8199-E0 30/6/10 09:24 Página 82

Yamaha TENERE XT660Z Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Wet Weight	206 kg
Fuel Tank Capacity	23 liters
Lubrication System	Dry sump
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Wheel Base	1, 505 mm
Minimum Ground Clearance	260 mm
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
Front Suspension	Telescopic fork
Rear Suspension	link suspension
Front Brake	Dual disc
Rear Brake	Single disc
Maximum Power	35.0 kW (48PS) @ 6, 000 rpm
