PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
EAU24204
Replacing a turn signal light
bulb

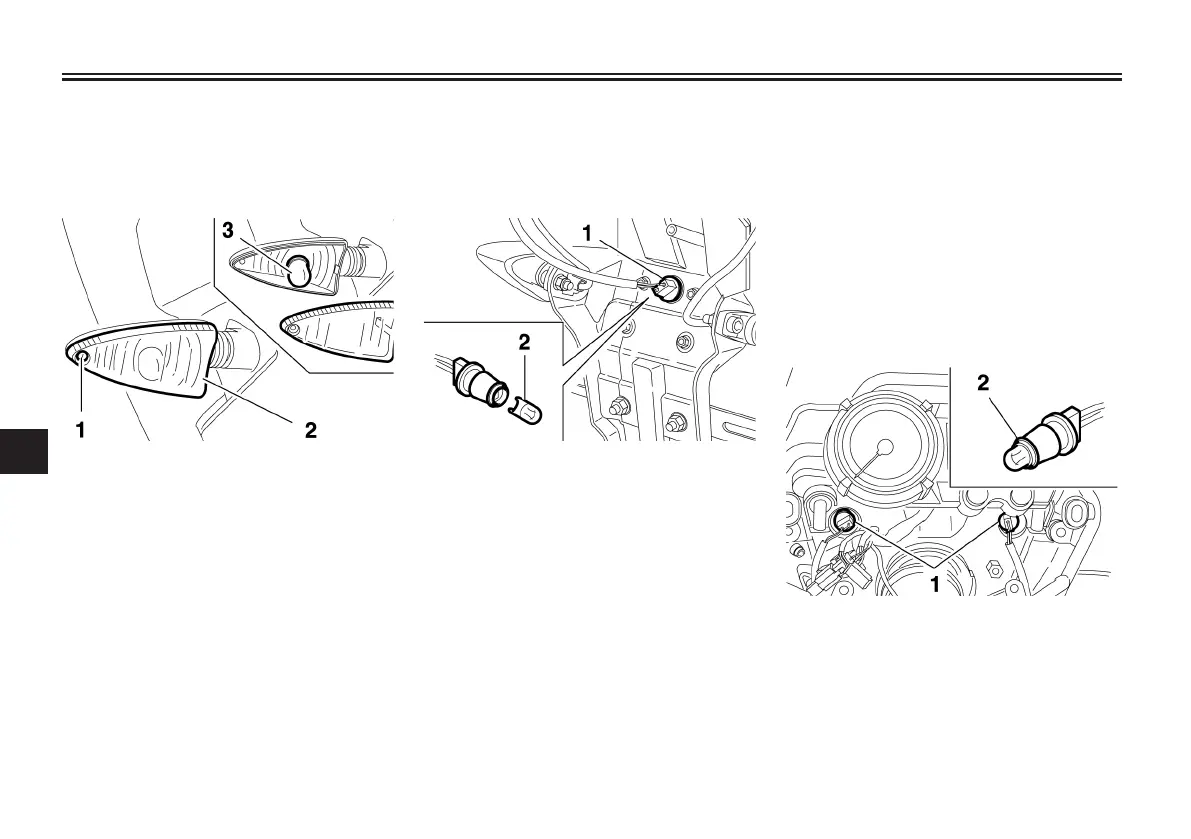

1. Remove the turn signal light lens
by removing the screw.
1. Screw
2. Turn signal light lens
3. Turn signal light bulb
2. Remove the burnt-out bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise
the lens may break. [ECA11191]
EAUM2202
Replacing the license plate
light bulb
1. Remove the socket (together
with the bulb) by pulling it out.
1. License plate light bulb socket
2. License plate light bulb
2. Remove the burnt-out bulb by
pulling it out.
3. Insert a new bulb into the socket.
4. Install the socket (together with
the bulb) by pushing it in.
EAU42652
Replacing an auxiliary light
bulb
This model is equipped with two auxi-
liary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove panel G. (See page 6-8).
2. Remove the auxiliary light socket
(together with the bulb) by pulling
it out.
1. Auxiliary light bulb socket
2. Auxiliary light bulb
3. Remove the burnt-out bulb by
pulling it out.
4. Insert a new bulb into the socket.
56P-F8199-E0 30/6/10 09:24 Página 80

Yamaha TENERE XT660Z Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition	TCI
Starter System	Electric
Transmission	5-speed
Final Drive	Chain
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Wet Weight	206 kg
Fuel Tank Capacity	23 liters
Lubrication System	Dry sump
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Wheel Base	1, 505 mm
Minimum Ground Clearance	260 mm
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
Front Suspension	Telescopic fork
Rear Suspension	link suspension
Front Brake	Dual disc
Rear Brake	Single disc
Maximum Power	35.0 kW (48PS) @ 6, 000 rpm
